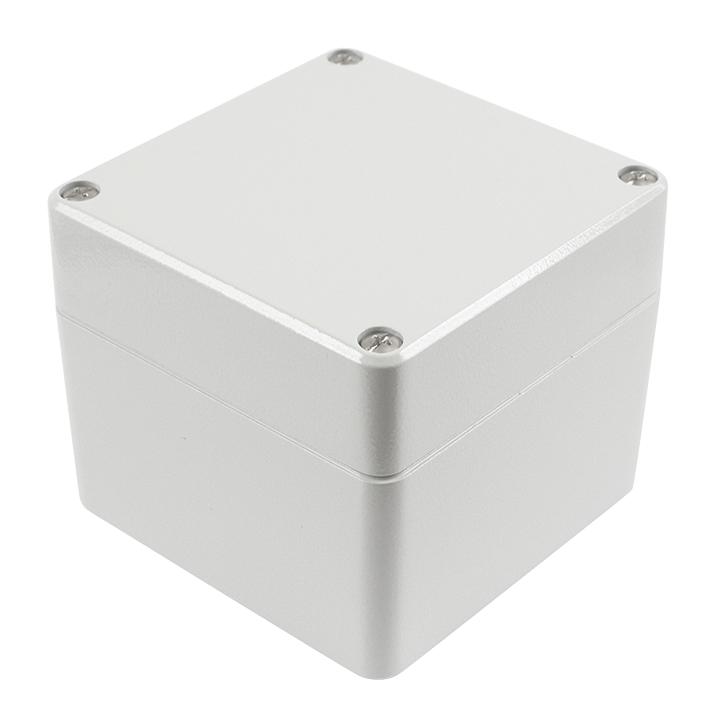

Hammond Manufacturing R100160035 Industrial Aluminum Enclosure
The R100 Series Type 4X diecast aluminum enclosures by Hammond are watertight, featuring thick walls, a shallow lid, deep body, and stainless steel lid screws for durability. Made from aluminum die-cast material G Al SI 12, they provide protection levels of NEMA 4X, IP66, and DIN 40050, with a temperature range of -40°C to +80°C. The enclosures include external mounting feet that can be rotated 90°, internal blind holes, and a single-channel fastening system, maximizing interior space and ease of installation. Available in beige RAL7032 or light gray RAL7035, they are CSA certified and UL Listed for industrial control applications.
Hammond Manufacturing R100160035 Industrial Aluminum Enclosure Specifications:
- Material: Aluminum die-cast G Al SI 12 / DIN 1775
- Protection: NEMA 4X, IP66, DIN 40050
- Temperature Range: -40°C to +80°C
- Lid Screws: Captive stainless steel
- Gasket: Neoprene oil and petrol resistant
- External Mounting Feet: Zinc-die-cast, rotatable 90°
- Enclosure Features: Shallow lid, deep body, internal blind holes, threaded holes for easy installation
- Colors: Beige RAL7032, Light gray RAL7035 (custom options available)
- Intended Use: Enclosures for industrial control equipment, CSA certified, UL Listed
- Dimensions: Vary by model, ranging from 50 mm width to 320 mm width, depths from 40 mm to 120 mm, with various lengths
- Mounting System: Single-channel design allowing rear and lid mounting hole reuse
- Additional Accessories: Inner mounting panels, hinges, external feet
Buy the Hammond Series R100 Watertight Aluminum Enclosure: R100160035
Order the Hammond R100 Series aluminum enclosure online today to benefit from superior water resistance, rust-proof construction, and tool-free assembly. These enclosures are designed to safeguard your industrial control components with a robust die-cast aluminum body, neoprene gaskets, and stainless steel lid screws. The single-channel fastening system maximizes interior space and simplifies maintenance. Suitable for demanding environments with protection levels of NEMA 4X and IP66, they are CSA certified and UL Listed. Optimize your project’s reliability by purchasing directly from our trusted online store with fast delivery and competitive pricing.
Buy Hammond R100160035 aluminum enclosure now and experience unmatched durability, IP66 protection, and easy installation for your industrial control needs.
Frequently Asked Questions
Where can I buy Hammond Manufacturing R100160035?
You can click on the BUY or RFQ button to purchase R100160035 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part R100160035?
You can download the R100160035 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of R100160035?
Hammond Manufacturing
