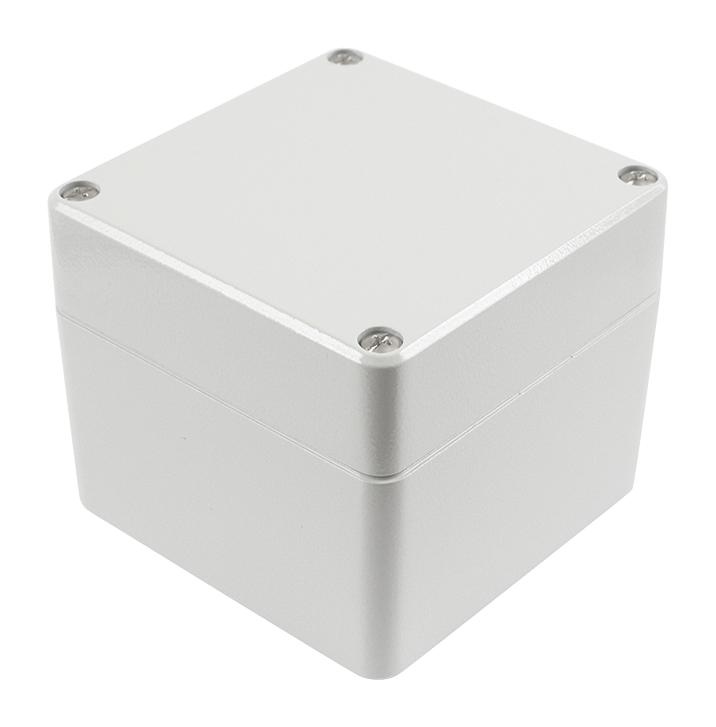

Hammond Manufacturing R100202035 Diecast Aluminum Enclosure
The Hammond R100 Series Type 4X Diecast Aluminum Enclosure offers a watertight, corrosion-resistant solution with a thick wall design. Made from aluminum die cast G Al SI 12 / DIN 1775, it features a shallow lid and deep body with captive stainless-steel screws, ideal for industrial control equipment. The enclosure includes a neoprene gasket resistant to oil and petrol, and conforms to NEMA 4X, IP66 standards, with an operational temperature range of -40°C to +80°C. Its patented single-channel fastening system maximizes interior space, providing efficient electrical assembly for demanding environments.
Hammond Manufacturing R100202035 Diecast Aluminum Enclosure Specifications:
- Material - Aluminum die-cast: G Al SI 12 / DIN 1775
- Protection - NEMA 4X, IP66, DIN 40050
- Temperature Range - -40°C to +80°C
- Gasket - Neoprene oil and petrol resistant
- Screws - Captive stainless steel lid screws
- Design - Shallow lid, deep body with external mounting feet
- Mounting - External zinc-die-cast feet, turn through 90° with engagement lugs
- Approvals - CSA certified, UL Listed
- Finished - Textured polyester powder coat in beige RAL7032 or light gray RAL7035 (custom colors available)
- Hinges - External mounting hinge kit compatible
- Internal features - Blind holes, grounding screws, internal mounting panel options
Buy the Buy Hammond R100 Series Diecast Aluminum Enclosure Part Number R100202035 Online
Order the Hammond R100 Series aluminum enclosure today for a reliable, corrosion-resistant solution ideal for industrial control environments. Featuring a watertight design, captive stainless steel screws, a neoprene gasket, and a unique single-channel mounting system, it provides maximum interior space and ease of assembly. The enclosure's rugged construction with thick walls ensures durability in harsh conditions. Available in beige or light gray, it meets NEMA 4X and IP66 standards, is CSA certified, UL Listed, and suitable for a wide range of applications requiring robust outdoor or indoor electrical enclosures.
Buy Hammond R100 Series enclosure now and enjoy a rugged, waterproof design with stainless steel screws and a patented single-channel mounting system.
Frequently Asked Questions
Where can I buy Hammond Manufacturing R100202035?
You can click on the BUY or RFQ button to purchase R100202035 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part R100202035?
You can download the R100202035 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of R100202035?
Hammond Manufacturing
