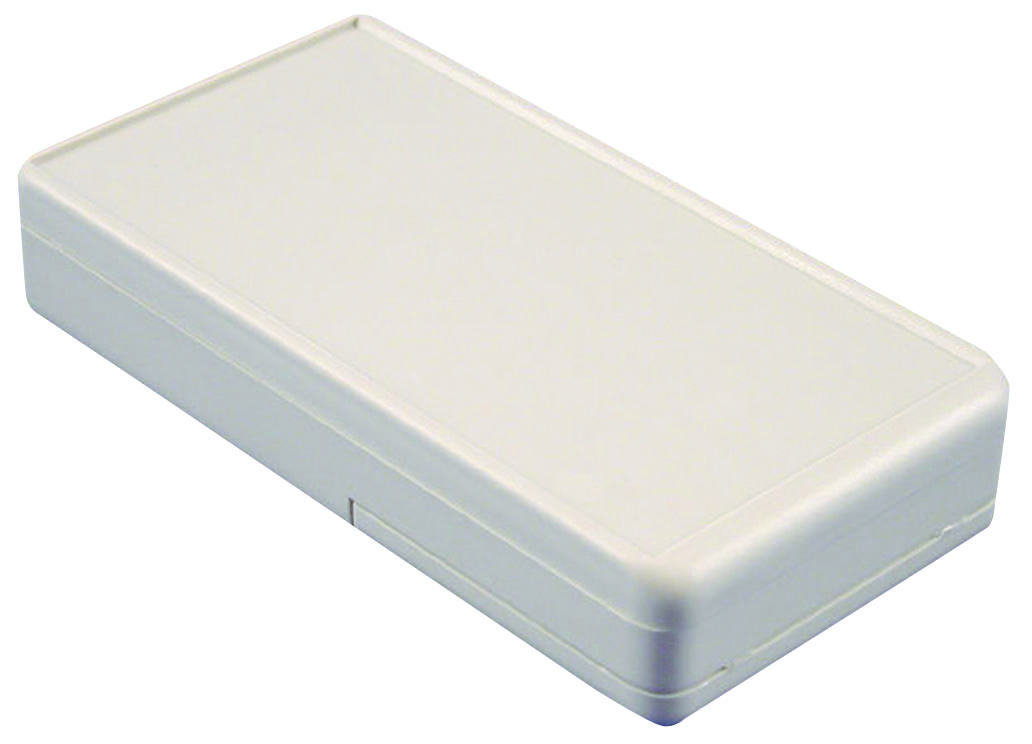

Hammond Manufacturing RH3005 Hand Held Enclosure
The ABS Plastic Hand Held Enclosures from the RH Series are ergonomically designed electronic cases suitable for mounting printed circuit boards in portable applications. These enclosures feature a lap joint construction for dust and splash resistance, with gasketed (IP65 rated) and non-gasket variants. Made from UL94 HB rated ABS plastic, they include molded-in standoffs for PCBs, a smooth recessed area for labels or membranes, and are assembled with M3 screws. Includes optional belt clips in black or gray, with mounting hardware, ideal for handheld electronics, instrumentation, and control units.
Hammond Manufacturing RH3005 Hand Held Enclosure Specifications:
- Material: ABS plastic with UL94 HB flammability rating
- Construction: Lap joint for dust and splash protection
- Variants: Gasketed (IP65 rated) and no gasket
- Gasket: Included around top, bottom, and battery door (factory installed)
- Color options: Black or gray with respective part numbers CP-001BK and CP-001G
- Dimensions: Length 5.12 inches, Width 2.68 inches, Depth 0.98 inches
- Top Half: Smooth recessed area for membrane or label
- Assembly: M3 Philips self-tapping screws
- Features: Molded-in PCB standoffs on both halves
- Belt Clips: Made of tough nylon, includes mounting hardware
- Suitable for handheld devices, instrumentation, control panels
- Enclosure types: Gasketed (IP65) and non-gasketed options
Buy the Hammond RH3005 – Reliable Hand Held Enclosure for Industrial Applications
Order the Hammond RH3005 hand-held enclosure online today to ensure reliable protection and easy PCB mounting for your portable electronic projects. Crafted from flame-rated ABS plastic, this durable enclosure features a dust and splash-resistant lap joint construction. Available in gasketed (IP65 rated) and non-gasket variants with molded-in standoffs, smooth recessed areas, and optional nylon belt clips for secure attachment. Perfect for instrumentation, control systems, and handheld electronics, it ensures longevity and user-friendly design for demanding industrial environments.
Get Hammond RH3005 today—built for durability, ease of assembly, and protection in portable electronics.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RH3005?
You can click on the BUY or RFQ button to purchase RH3005 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RH3005?
You can download the RH3005 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RH3005?
Hammond Manufacturing
