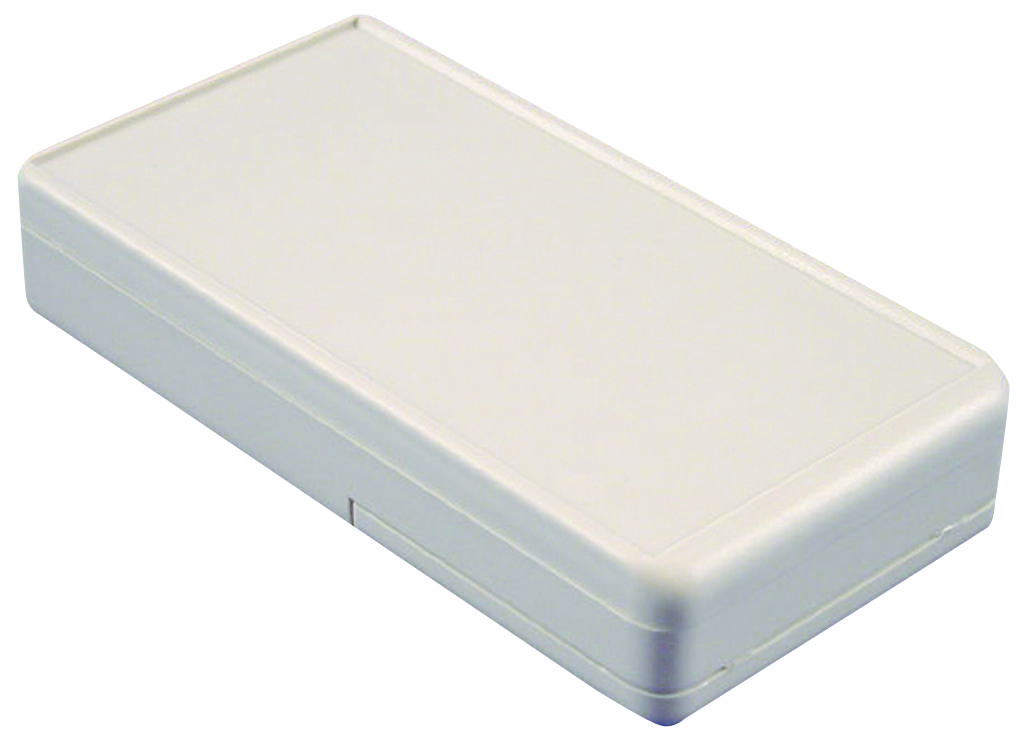

Hammond Manufacturing RH3055 Handheld Enclosure
The RH Series ABS plastic handheld enclosure offers a durable, ergonomic design ideal for mounting printed circuit boards in electronic devices. Available in gasketed (IP65 rated) and non-gasket versions, it features a molded ABS plastic construction with UL94 HB flammability rating. The enclosure includes molded-in PCB standoffs, a removable battery door, and smooth recessed areas for labeling or membrane switches. Suitable for various applications requiring dust and splash protection, these enclosures are assembled with self-tapping screws and are available with optional belt clips in black or gray nylon for added convenience.
Hammond Manufacturing RH3055 Handheld Enclosure Specifications:
- Material: ABS plastic with UL94 HB flammability rating
- Gasketed version: IP65 rated with gasket around top & bottom halves and battery door
- Non-gasketed version: dust and splash resistant
- Dimensions: Length 5.12 inches, Width 2.68 inches, Depth 0.98 inches
- Construction: Lap joint with molded-in PCB standoffs
- Battery door: Removable with gasket (on gasketed models)
- Color options: Black (Part Number CP-001BK), Gray (Part Number CP-001G)
- Assembly: M3 Philips self-tapping screws
- Motor: Reinforced nylon belt clips included
- Recessed area: For membrane, label, or silkscreen
- Application: Electronic handheld devices, portable electronics, control units
Buy the Hammond Series RH Handheld Enclosure: RH3055
Purchase Hammond RH3055 handheld enclosure online today for reliable protection and durable construction. Designed for electronic projects requiring dust and splash resistance, these enclosures feature molded-in PCB standoffs, a removable battery door, and ergonomic design. Available in gasketed (IP65 rated) or non-gasket versions, with optional belt clips in black or gray nylon for added convenience. Ideal for portable electronics, control panels, and custom electronic devices, ensuring long-lasting durability and user-friendly assembly for professional or hobbyist applications.
Get Hammond RH3055 today—built for durability, protection, and ergonomic user comfort in electronic and portable device applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RH3055?
You can click on the BUY or RFQ button to purchase RH3055 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RH3055?
You can download the RH3055 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RH3055?
Hammond Manufacturing
