Hammond Manufacturing RMCS19018BK1 Rack Enclosure

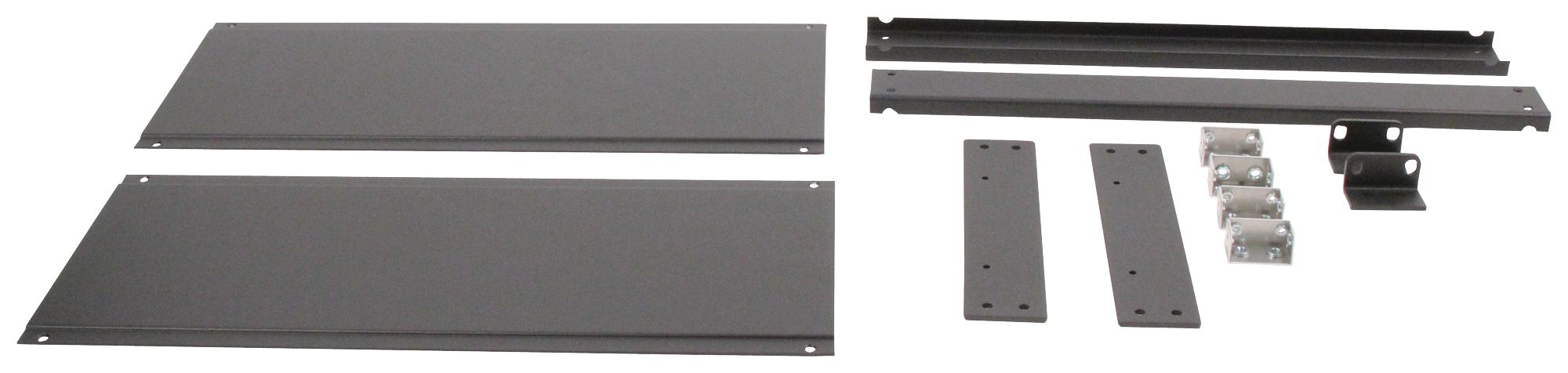

The RMCS19018BK1 is a black, 1U solid economy rack chassis made from durable type-5050 H32 aluminum with a rugged satin-texture powder-coated finish. Its lightweight, all-metal construction with all-machine screw and PEM nut assembly makes it ideal for industrial environments requiring frequent assembly and disassembly. It features easy internal access with only four screws to remove from any of its six panels, ships unassembled for protection, and can be used with or without rack mounting ears or brackets. A custom aluminum chassis panel is optional, and it includes all hardware, panels, rubber feet, and mounting brackets—perfect for reliable electronic equipment enclosures.
Hammond Manufacturing RMCS19018BK1 Rack Enclosure Specifications:
- Material: Type-5050 H32 Aluminum
- Finish: Satin-texture powder coat, black
- Construction: All-machine screw & PEM nut assembly
- Panel Thickness: Side panels 0.125" (3.2 mm), front/rear panels 0.064" (1.6 mm), top/bottom panels 0.062" (1.6 mm)
- Internal Mounting: Optional aluminum chassis panel available
- Dimensions: Overall 17.00 inches width, 13.00 inches depth, 1U height
- Weight: Approximately 5 pounds (2.3 kg)
- Mounting: Can be used with or without rack ears or brackets
- Shipping: Knockdown, unassembled for easy handling
- RoHS Compliant, Made in North America
- Hardware: Includes all panels, rubber self-adhesive feet, rack brackets, and screws
- Grounding: Panels not grounded due to powder coat finish, ground user-defined
Buy the Hammond RMCS19018BK1 – Reliable Rack Mount Enclosure for Industrial Applications
Purchase the Hammond RMCS19018BK1 online today and ensure your electronic equipment is housed securely and efficiently. This durable 1U aluminum rack enclosure features a rugged satin finish, lightweight design, and versatile mounting options suitable for industrial and professional applications. Its easy access panels require minimal screws for internal access, and the unassembled knockdown design simplifies handling and shipping. Complete with hardware, mounting brackets, and accessories, this enclosure offers premium protection and flexibility. Get yours now for reliable performance in demanding environments.
Order your Hammond Series RMCS19018BK1 today and give your projects the dependable quality they deserve for secure electronic device housing.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RMCS19018BK1?
You can click on the BUY or RFQ button to purchase RMCS19018BK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RMCS19018BK1?
You can download the RMCS19018BK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RMCS19018BK1?
Hammond Manufacturing
