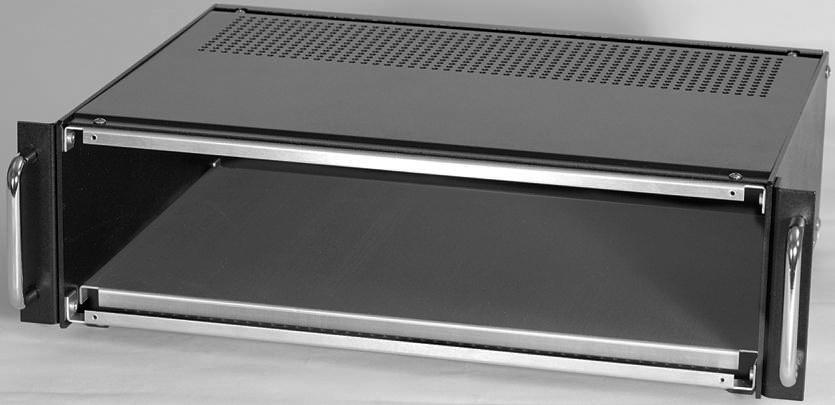

Hammond Manufacturing RMCS190513BK1 Rack Mount Chassis
The RMCS190513BK1 is an economical rack mount chassis made of rugged black powder-coated aluminum, supporting 3U rack units. Designed with machine screw and PEM nut construction, it allows easy assembly and disassembly, requiring only four screws for internal access through any of its six panels—top, bottom, sides, front, or rear. The enclosure includes a solid top and bottom panel, with optional internal aluminum chassis. It can be used with or without rack mounting ears or brackets, and ships unassembled for easy handling, maintenance, and customization in electronic projects or repair stations. Ideal for efficient component organization, it features durable construction suitable for professional use.
Hammond Manufacturing RMCS190513BK1 Rack Mount Chassis Specifications:
- Material: Aluminum, black powder-coated
- Overall Dimensions: 5.23 inches in height, 17.00 inches in width, 13.00 inches in depth
- Rack Units: 3U supported
- Panel Thickness: Side panels 0.125 inches, front/rear panels 0.064 inches, top/bottom panels 0.062 inches
- Construction: Machine screw and PEM nut assembly, rugged design
- Access: Remove 4 screws from any of 6 panels for internal access
- Mounting: Supports rack mounting ears/brackets, includes hardware
- External Features: Supports standard rack sizes, optional internal aluminum chassis
- Finish: Satin textured black powder paint
- Compatibility: Suitable for electronic equipment, instrumentation, control panels
- Included Hardware: All necessary mounting brackets and hardware kit
Buy the Buy Hammond Rack-Mounted Instrument Enclosure RMC Series 190513BK1 Online
Purchase the Hammond Series 190513BK1 rack mount chassis online today to experience robust aluminum construction with a durable black powder coating, ensuring longevity and professionalism. This versatile enclosure supports 3U rack units, is easy to assemble and disassemble, and includes all mounting hardware and panels. Ideal for electronic systems, instrumentation, or control panels, it offers excellent internal accessibility by removing just four screws. This unassembled knockdown design keeps shipping costs low while providing maximum flexibility for customization, maintenance, and reliable operation in demanding environments.
Order your Hammond Series 190513BK1 rack mount chassis today and ensure secure, reliable housing for your electronic components andprojects.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RMCS190513BK1?
You can click on the BUY or RFQ button to purchase RMCS190513BK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RMCS190513BK1?
You can download the RMCS190513BK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RMCS190513BK1?
Hammond Manufacturing
