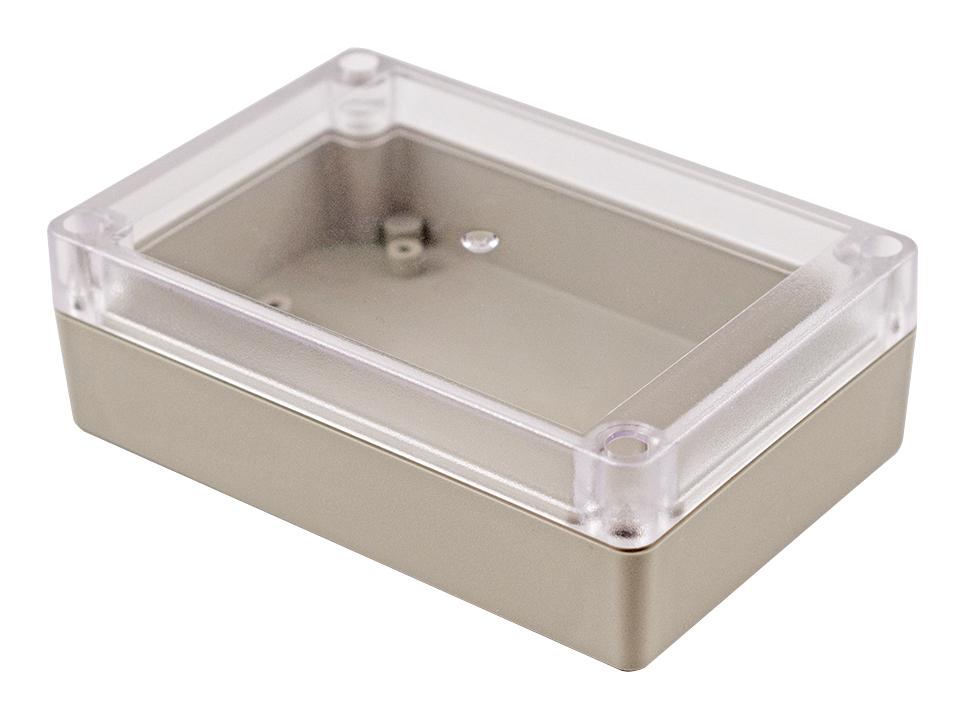

Hammond Manufacturing RP1045C Water-Tight Enclosure
The RP1045C is a water-tight enclosure designed for mounting printed circuit boards or components, made from durable ABS plastic with a UL94 HB flammability rating. It features a gasketed lid with a two-piece tongue & groove construction, providing protection against oil, dust, and water, designed to meet IP 65 standards. The enclosure includes internal DIN rail mounting tabs, stainless steel hardware for corrosion resistance, and a smooth recessed area for membrane or labels. Available with a clear or opaque lid and optional bottom flange for enhanced versatility and protection.
Hammond Manufacturing RP1045C Water-Tight Enclosure Specifications:
- Material: ABS Plastic
- Color: Light Gray (Opaque), or Clear (Polycarbonate Lid)
- Flammability Rating: UL94 HB
- Ingress Protection: IP 65
- Lid: Gasketed with two-piece tongue & groove
- Hardware: Self-captivating M3.5 stainless steel screws
- Internal Mounting: DIN rail tabs molded in
- Dimensions: Length 95 mm, Width 50 mm, Height 50 mm
- Design: Waterproof, dustproof, oil-resistant
- Recessed area on lid for membrane or labels
- Sealed with field-installed rubber gasket
- Corrosion-resistant stainless steel components
- Designed for PCB or component mounting
- Available with optional integral bottom flange
Buy the Hammond Series RP Water-Tight Enclosure: RP1045C
Order the Hammond RP1045C water-tight enclosure online now to protect sensitive electronics with IP 65 sealing, durable ABS construction, stainless steel hardware, and versatile mounting options designed for reliability and easy access.
Get Hammond RP1045C today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RP1045C?
You can click on the BUY or RFQ button to purchase RP1045C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RP1045C?
You can download the RP1045C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RP1045C?
Hammond Manufacturing
