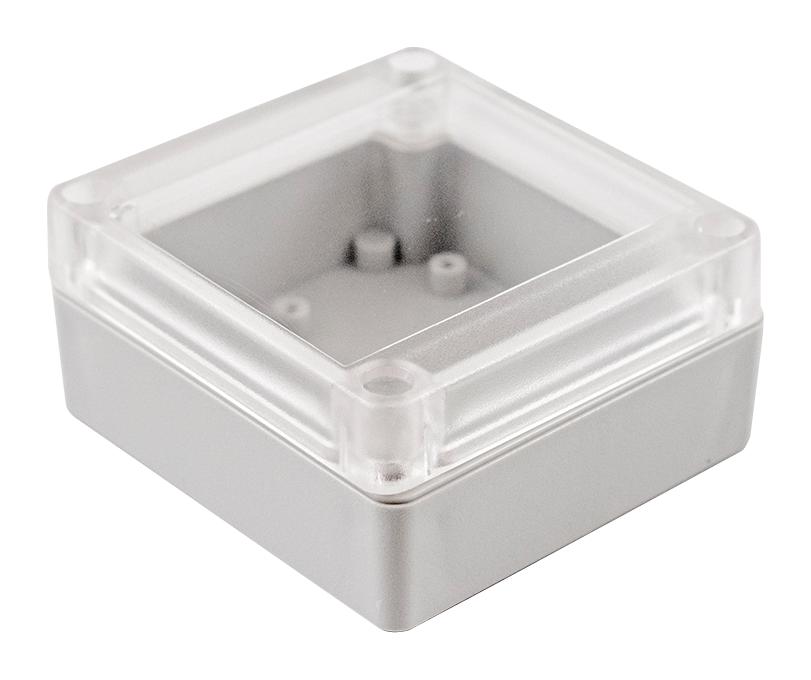

Hammond Manufacturing RP1090C Water-Tight Enclosure
The RP series water-tight enclosures by Hammond Manufacturing are designed for mounting printed circuit boards and components, offering protection against oil, dust, and water with IP 65 rating. Made in durable ABS plastic or polycarbonate, these enclosures feature gasketed lids with tongue & groove construction, stainless steel hardware for corrosion resistance, and internal mounting options including DIN rails. Available in various sizes with optional bottom flanges, they are ideal for industrial electronics requiring secure, waterproof housing, and easy assembly and disassembly.
Hammond Manufacturing RP1090C Water-Tight Enclosure Specifications:
- Material: ABS plastic or Polycarbonate
- Flammability Rating: UL94 HB
- Ingress Protection: IP 65
- Lid fasteners: Self captivating M3.5 stainless steel machine screws
- Gasket: Rubber, field installed
- Lid construction: Tongue & groove
- Internal features: DIN rail mounting tabs
- Colors: Light gray or off-white, clear lids available
- Dimensions vary per model, typical length from 65 mm to 250 mm, width from 50 mm to 200 mm, height from 28 mm to 130 mm
- Hardware: Stainless steel inserts, lid screws included
- Mounting: Internal DIN rails, optional feet kits
Buy the Hammond RP Series Water-Tight Enclosures – Reliable Protective Cases for Industrial Applications
Enhance your industrial electronics project with Hammond's RP series water-tight enclosures. Crafted from durable ABS or polycarbonate, these IP65-rated cases provide excellent protection against dust, water, and oil. The gasketed lids, stainless steel hardware, and internal mounting options like DIN rails make installation and disassembly straightforward for maintenance and upgrades. Available in various sizes with optional bottom flanges, these enclosures are ideal for mounting sensitive electronic components securely and reliably, ensuring long-lasting performance in challenging environments.
Order your Hammond RP Series water-tight enclosures today and secure your electronic components with durable, IP65-rated waterproof housings designed for industrial use.
