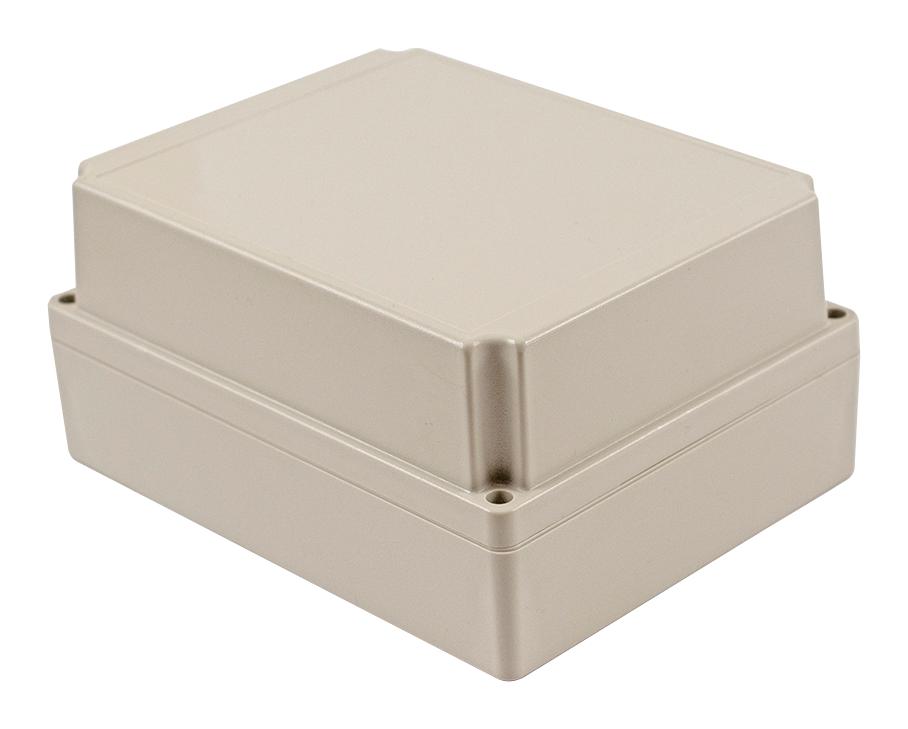

Hammond Manufacturing RP1375 Water-Tight Enclosure
The RP Series Water-Tight Enclosures by Hammond Manufacturing are durable protective cases designed for mounting printed circuit boards and components. Made from either UL94 HB-rated ABS plastic or polycarbonate, these enclosures feature gasketed lids with a two-piece tongue & groove seal to prevent oil, dust, and water ingress, meeting IP 65 standards. The lids are secured with stainless steel screws, with internal DIN rail mounting options and available with integrated bottom flanges for versatile installation. Ideal for industrial and electronic applications requiring reliable environmental sealing.
Hammond Manufacturing RP1375 Water-Tight Enclosure Specifications:
- Material: ABS plastic or Polycarbonate
- UL Flammability Rating: UL94 HB
- Protection Class: IP 65
- Lid Securing: Self-captivating M3.5 stainless steel screws
- Gasket: Included rubber gasket, field installed
- Internal Mounting: DIN rail mounting tabs
- Colors: Light gray ABS, off-white polycarbonate
- Versions: with and without bottom flange
- Lid Construction: Gasketed, tongue & groove design
- Dimensions vary by model, with heights from 28 mm to 110 mm
- Corrosion Resistant: Yes, stainless steel hardware used
- Max Mounting Flexibility: For PCB, panels, or components
Buy the Hammond Series RP Water-Tight Enclosure: RP1375
Enhance your electronic project with Hammond Series RP1375 Water-Tight Enclosure, crafted from durable ABS plastic, providing IP 65 protection against dust and water. Features gasketed gasketed lid secured with stainless steel screws, internal DIN rail mounting, and options with bottom flanges for added versatility. Ideal for mounting printed circuit boards, panels, or components in industrial environments requiring corrosion-resistant and environmentally sealed cases. Easy to install and reliable for long-term use, these enclosures are essential for safeguarding sensitive equipment against moisture, dust, and mechanical impacts, ensuring optimal performance and durability.
Order your Hammond Series RP1375 water-tight enclosure today and secure your electronics with a reliable, IP 65-rated protective case suitable for demanding environments.
