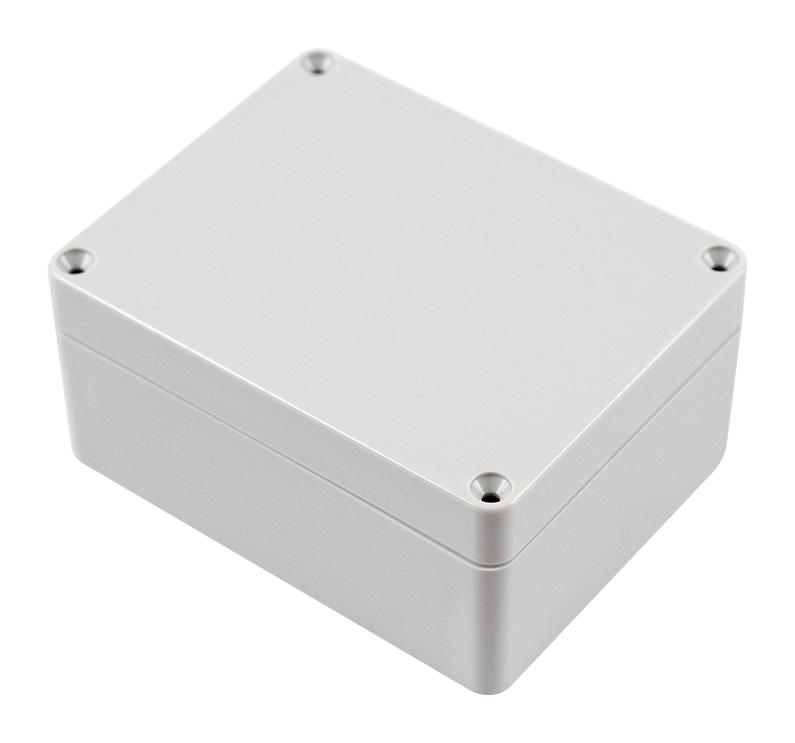

Hammond Manufacturing RZ0205 Waterproof Enclosure
The Hammond RZ Series WaterTight ABS & Polycarbonate Enclosures are designed for rugged indoor and outdoor use, providing IP65 protection against dust and water ingress. These versatile enclosures feature gasketed, two-piece lids with tongue & groove construction, stainless steel screws, and external wall-mounting holes for ease of installation. Available in beige ABS or clear/opaque polycarbonate, they are ideal for mounting printed circuit boards, DIN rail components, or other electronics in harsh environments, offering excellent temperature ranges and UL fire ratings for reliable performance.
Hammond Manufacturing RZ0205 Waterproof Enclosure Specifications:
- Material: ABS plastic or Polycarbonate
- Colors: RAL1013 (beige ABS), RAL7035 (light gray polycarbonate)
- Temperature Range: -30°C to +80°C (ABS), -40°C to +130°C (Polycarbonate)
- Flammability Rating: UL-94HB
- Lid Type: Gasketed, two-piece tongue & groove construction
- Mounting: External wall-mount holes outside gasket area, internal PCB or DIN rail mounting points
- Hardware: Stainless steel screws, stainless steel inserts
- Ingress Protection: IP65
- Lid Options: Opaque or clear polycarbonate lids
- Sizes: Various, e.g., RZ0205 (115x65x55 mm), RZ0218 (222x146x55 mm), RZ0373 (200x120x75 mm)
Buy the Buy Hammond RZ Series WaterTight Enclosure Part Number RZ0205 Online
Enhance your electronics protection with the Hammond RZ Series Waterproof Enclosure available online. Crafted for durability in harsh indoor and outdoor settings, these enclosures feature gasketed lids, stainless steel hardware, and versatile mounting options. Choose from ABS or polycarbonate variants, each meeting UL flammability standards and operating across wide temperature ranges. Easy to install with external wall-mount holes, they are suitable for PCB mounting or DIN rail components, ensuring your devices remain safe from dust, water, and other environmental hazards.
Order your Hammond RZ Series RZ0205 waterproof enclosure today and ensure your electronic projects are protected in harsh environments with reliable IP65 sealing.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0205?
You can click on the BUY or RFQ button to purchase RZ0205 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0205?
You can download the RZ0205 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0205?
Hammond Manufacturing
