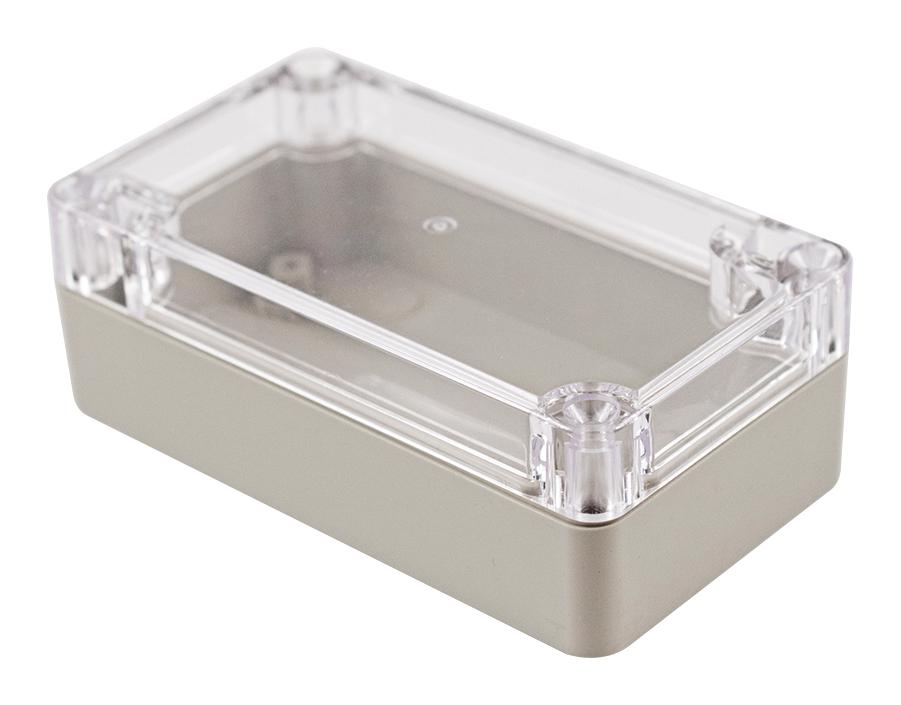

Hammond Manufacturing RZ0304C WaterTight Enclosure
The Hammond RZ Series WaterTight ABS and Polycarbonate Enclosures are designed for indoor and outdoor electrical and electronic applications. Made from durable ABS plastic or polycarbonate, these enclosures provide IP65 rated protection against dust and water, ideal for mounting printed circuit boards (PCBs) or DIN rail components. The gasketed lids feature two-piece tongue & groove construction with self-captivating screws for secure sealing. Available in multiple sizes, colors, and with clear or opaque lids, these enclosures are easy to wall-mount and suited for demanding environments where protection and durability are critical.
Hammond Manufacturing RZ0304C WaterTight Enclosure Specifications:
- Material: ABS plastic, UL Flammability rating UL-94HB, Color: RAL1013, Temperature: -30°C to +80°C
- Material: Polycarbonate, UL Flammability rating UL-94HB, Color: RAL7035, Temperature: -40°C to +130°C
- Design: Gasketed lid with tongue & groove construction, Self-captivating screw threads, Wall-mountable via outside holes
- Physical Dimensions: Length, Width, Depth vary per model, available with transparent or opaque lids; typical models include lengths from 52 mm to 222 mm
- Protection Level: IP65 rated, suitable for mounting printed circuit boards and DIN rail components
- Construction: Durable, corrosion-resistant enclosures with internal mounting points, stainless steel screws into inserts, wall mounting outside gasket perimeter
Buy the Buy Hammond WaterTight Enclosure Part Number RZ0304C Online
Purchase the Hammond WaterTight Enclosure RZ0304C online today for robust protection of your electrical and electronic devices. This enclosure features IP65 waterproof and dustproof sealing, ideal for indoor and outdoor applications. Made from durable ABS or polycarbonate, it withstands harsh conditions with temperature ratings from -30°C to +80°C (ABS) and -40°C to +130°C (polycarbonate). Easy to wall-mount with outside holes, the enclosure's gasketed lid offers reliable sealing against oil, dust, and water ingress, ensuring long-lasting durability and security for your components.
Get Hammond WaterTight Enclosure RZ0304C today—designed for reliable protection of electronic components in harsh environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing RZ0304C?
You can click on the BUY or RFQ button to purchase RZ0304C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part RZ0304C?
You can download the RZ0304C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of RZ0304C?
Hammond Manufacturing
