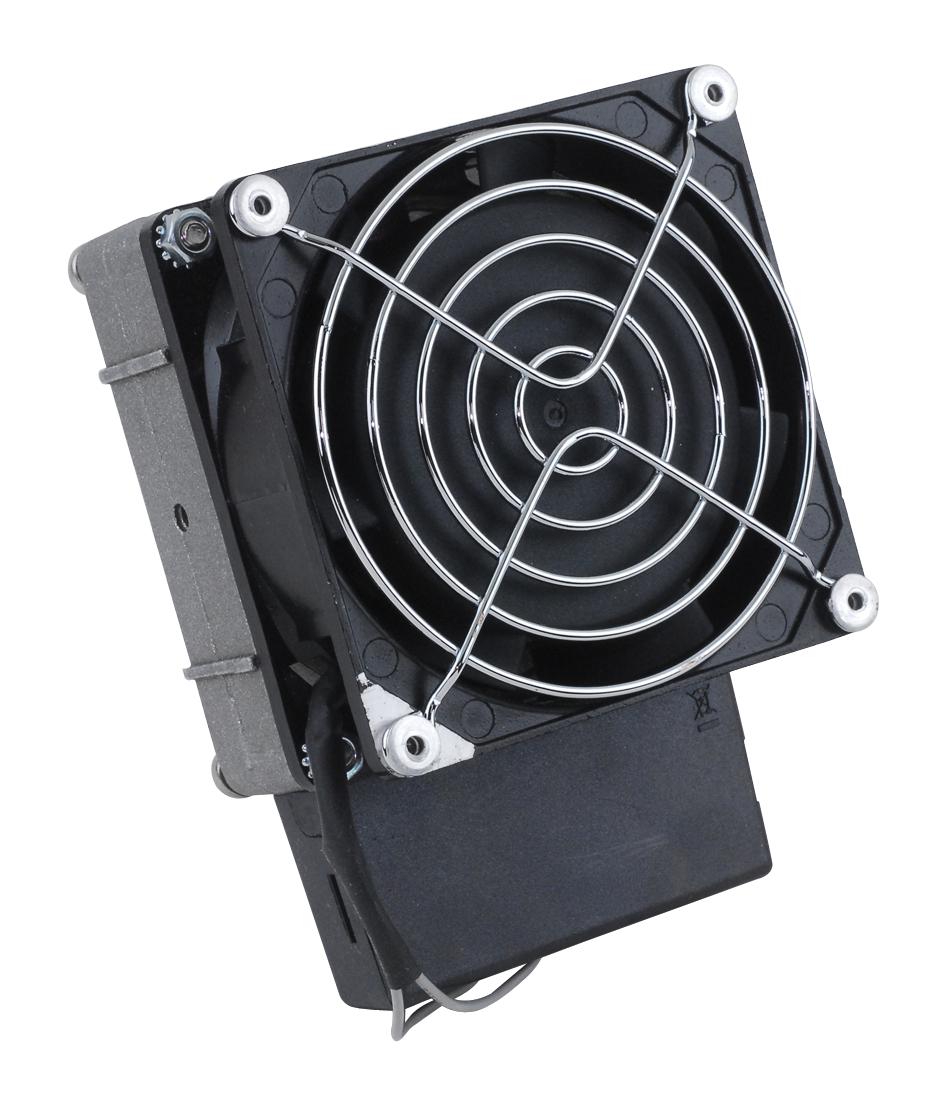

Hammond Manufacturing SHV031139 Industrial Panel Heater
The SHV Series control panel heater by Hammond Manufacturing is designed for applications requiring larger heating capacities or internal forced air circulation within limited spaces. These compact heaters feature a die-cast aluminum body, cartridge heating elements, and include an axial ball-bearing fan for effective airflow. Suitable for indoor panel heating, they operate at 110-120 V AC with power ratings from 100 W to 400 W. Easy to install on 35 mm DIN rails, these reliable, UL-recognized units ensure efficient temperature control and durability up to 30,000 hours, ideal for industrial control panels.
Hammond Manufacturing SHV031139 Industrial Panel Heater Specifications:
- Power Range: 100 W to 400 W
- Operating Voltage: AC 110-120 V, 50/60 Hz
- Maximum Temperature: 360°F/180°C
- Air Flow: 20 CFM (100W, 150W), 63 CFM (200W, 300W, 400W)
- Fan Type: Axial, Ball Bearing
- Durability: 30,000 hours at 68°F ambient temperature
- Heating Element: Cartridge heater
- Heating Body: Die cast aluminum
- Mounting: Clip on 35 mm DIN rails
- Protection Class: 1 (grounding tested at 1250 V)
- Approval: UL Recognized, CUL Recognized, CE
Buy the Hammond SHV031139 U–Reliable Industrial Panel Heaters for Control Cabinets
Order Hammond's industrial panel heater online today for dependable temperature control within enclosures. Designed for easy DIN rail installation, these compact heaters feature a die-cast aluminum body and a robust axial fan, ensuring efficient airflow. Suitable for controlling temperatures up to 360°F with power options from 100W to 400W, they are UL, CUL, and CE recognized. Built for durability, these units provide reliable operation in demanding environments, making them ideal for cooling and heating control panels in industrial settings.
Get Hammond SHV031139 today—built for precise temperature regulation and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing SHV031139?
You can click on the BUY or RFQ button to purchase SHV031139 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part SHV031139?
You can download the SHV031139 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of SHV031139?
Hammond Manufacturing
