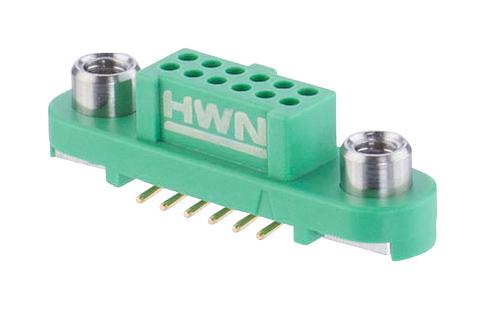

Harwin G125FS11205F2P high-reliability connector
Harwin's Gecko Screw-Lok connectors in the G125 series are compact, dual-row interconnects designed for high-reliability applications with space constraints. Featuring mate-before-lock jackscrews for quick assembly, these miniature connectors deliver performance comparable to larger formats like Micro-D, but with lighter weight and smaller size. Each contact handles up to 2A (or 2.8A per contact), suitable for demanding environments. They include a four-finger patented contact design for vibration and shock resistance, operate from -65°C to +150°C, withstand 1,000 mating cycles, and incorporate keyway polarization to prevent mis-mating. Potting wall housings enable easy visual inspection, making them ideal for automation, electric vehicles, aerospace, industrial systems, robotics, and renewable energy projects.
Harwin G125FS11205F2P high-reliability connector Specifications:
- Pitch: 1.25mm
- Contact Material: Gold-plated Phosphor Bronze
- Operating Temperature: -65°C to +150°C
- Current Rating: 2A per contact, 2.8A per individual contact
- Durability: 1,000 mating cycles
- Connector Type: Dual-row, high-reliability interconnect
- Mechanical: Mate-before-lock jackscrews, keyway polarization
- Housing: UL94 V-0 thermoplastic with potting wall for strain relief
- Voltage Rating: 600V DC or AC peak
- Vibration Resistance: Up to 2000Hz, 1.5mm amplitude
- Shock Resistance: Up to 490m/s² for 11ms
- Environmental: Exceeds requirements for humidity and temperature cycling
- Application suitability: Automation, aerospace, industrial systems, EV charging
Buy the Buy Harwin G125 Series Connector Part Number G125FS11205F2P Online
Secure your electronics projects with the Harwin G125 series high-reliability connector. Designed for demanding environments, it offers up to 2A per contact, a temperature range from -65°C to +150°C, and robust vibration and shock resistance. With a compact dual-row design and 1,000 mating cycles durability, this connector ensures long-lasting, dependable performance in automation, aerospace, industrial, and automotive applications. Easy to install, with visual inspection features, it’s the ideal choice for engineers seeking durable, space-efficient interconnects with superior electrical and mechanical properties.
Order your Harwin G125 Series connector G125FS11205F2P today and enhance your projects with high-performance, space-saving interconnect solutions tailored for demanding environments.
Frequently Asked Questions
Where can I buy Harwin G125FS11205F2P?
You can click on the BUY or RFQ button to purchase G125FS11205F2P from an authorized Harwin distributor.
How do I troubleshoot issues or seek technical support for part G125FS11205F2P?
You can download the G125FS11205F2P datasheet or visit the Harwin website for support.
Who is the manufacturer of G125FS11205F2P?
Harwin
