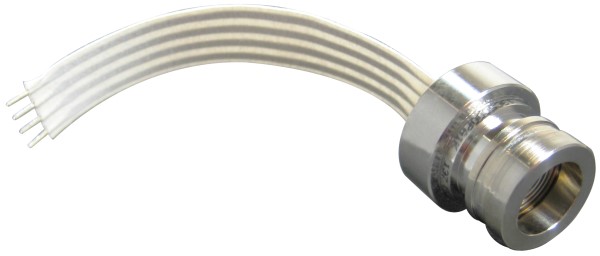

Honeywell 13C0500PS1L Stainless Steel Pressure Sensor
Honeywell’s 13 mm Series stainless steel pressure sensors are engineered for high-pressure applications involving hostile media and harsh environments. These sensors feature a robust, isolated stainless steel package, incorporating Honeywell’s proven piezoresistive semiconductor sensor chip. The design includes oil isolation, temperature compensation, and calibration for enhanced reliability, stability, and accuracy. With a weld-ring collar and back support ring, these sensors are built for high cycle life and easy integration into OEM applications. Available with various pressure ranges and supply options, they are suitable for industrial controls, hydraulic systems, and tank pressure monitoring.
Honeywell 13C0500PS1L Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 G at 20Hz to 2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩ at 50 Vdc
- Voltage version “K” Supply voltage: +15Vdc
- Voltage version “L” Supply current: +2.0 mA
- Zero pressure offset: -2 mV to +2 mV
- Pressure non-linearity: ±0.1%FSS to ±0.25%FSS
- Pressure hysteresis: ±0.015%FSS to ±0.030%FSS
- Repeatability: ±0.010%FSS to ±0.030%FSS
- Temp.effect on span: ±0.5%FSS to ±1.0%FSS
- Temp.effect on offset: ±0.5%FSS to ±1.0%FSS
- Thermal hysteresis: ±0.1%FSS to ±0.3%FSS
- Long-term stability of offset and span: ±0.1%FSS to ±0.3%FSS
- Response time: 0.1 ms
- Common mode voltage (voltage version “K”): 0.50 Vdc to 1.25 Vdc to 2.0 Vdc
- Input resistance (current version “L”): 2.0 kΩ to 4.5 kΩ to 8.0 kΩ
- Input resistance (voltage version “K”): 8.0 kΩ to 25 kΩ to 50 kΩ
- Output resistance: 3.0 kΩ to 4.5 kΩ to 6.0 kΩ
- Pressure range (13C 0500P): 0 psi to 500 psi
- Full scale span (13C 0500P): 98mV to 102 mV
- Proof pressure (13C 0500P): 1500 psi
- Burst pressure (13C 0500P): 2500 psi
