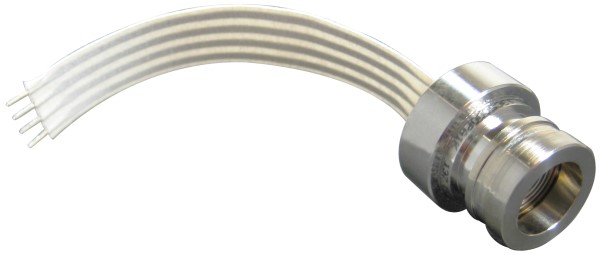

Honeywell 13C1000PS1L Stainless Steel Pressure Sensor
Honeywell’s 13 mm Series stainless steel pressure sensors are engineered for high-pressure applications involving hostile media in demanding environments. Featuring a rugged, isolated stainless steel package and utilizing Honeywell’s proven piezoresistive semiconductor sensor chip, these sensors provide reliable, stable, and accurate pressure measurement. The weld-ring collar and back support ring enable high cycle life, making them suitable for integration into OEM applications. Available with various pressure ranges and supply options, these sensors are commonly used in industrial controls, hydraulic systems, and tank pressure monitoring.
Honeywell 13C1000PS1L Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 G at 20Hz to 2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩ at 50 Vdc
- Supply voltage (K version): +15Vdc
- Supply current (L version): +2.0 mA
- Zero pressure offset: -2 mV to +2 mV
- Pressure non-linearity: ±0.1%FSS to ±0.25%FSS
- Pressure hysteresis: ±0.015%FSS to ±0.030%FSS
- Repeatability: ±0.010%FSS to ±0.030%FSS
- Temp. effect on span: ±0.5%FSS to ±1.0%FSS
- Temp. effect on offset: ±0.5%FSS to ±1.0%FSS
- Thermal hysteresis: ±0.1%FSS to ±0.3%FSS
- Long-term stability: ±0.1%FSS to ±0.3%FSS
- Response time: 0.1 ms
- Common mode voltage (K version): 0.50 Vdc to 1.25 Vdc to 2.0 Vdc
- Input resistance (L version): 2.0 kΩ
- Input resistance (K version): 8.0 kΩ to 25 kΩ to 50 kΩ
- Output resistance: 3.0 kΩ to 4.5 kΩ to 6.0 kΩ
- Pressure range (13C 1000P): 0 psi to 1000 psi
- Full scale span (13C 1000P): 98mV to 102 mV
- Proof pressure (13C 1000P): 3000 psi
- Burst pressure (13C 1000P): 5000 psi
Buy the 13C1000PS1L HONEYWELL Stainless Steel Pressure Sensor | myMectronic
Purchase the Honeywell 13C1000PS1L pressure sensor securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 13C1000PS1L?
You can click on the BUY or RFQ button to purchase 13C1000PS1L from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 13C1000PS1L?
You can download the 13C1000PS1L datasheet or visit the Honeywell website for support.
Who is the manufacturer of 13C1000PS1L?
Honeywell
