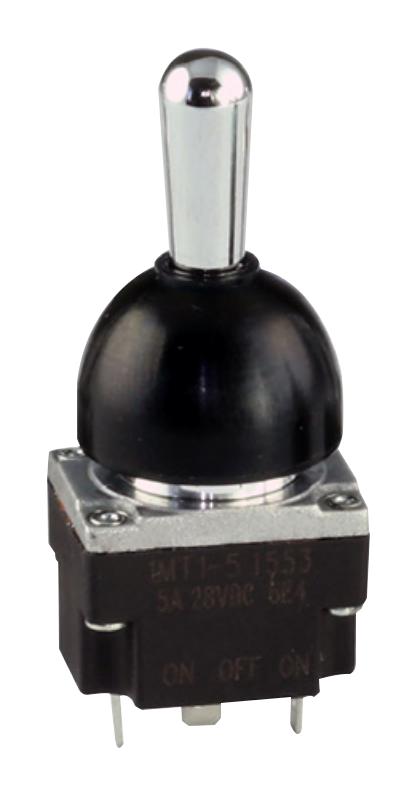

Honeywell 1MT11 Miniature Toggle Switch
Honeywell's MICRO SWITCH MT Series miniature toggle switches are engineered for demanding applications requiring a robust and economical solution. Key features include a seal between the toggle lever and bushing, and between the cover and case, providing protection against dust, water, and vibration. Suitable for use in remote control boxes for cranes, concrete pumping, and material handling equipment, these switches offer a compact design, high sealing ratings (IP67/68), and a long electrical life (up to 60,000 cycles). The spring-loaded mechanism provides enhanced tactile feedback, contributing to improved operator control and reduced maintenance.
Honeywell 1MT11 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Action: 2- or 3-position; momentary and maintained
- Mounting bushing: 15/32 in (0.47 in) Ø
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Contacts: silver alloy, gold plated
- Amp rating: 5 A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold-plated contacts
- Electrical life: 60K cycles (SPDT, silver alloy and gold-plated contacts); 25K cycles @ 5 A, 28 Vdc (DPDT, silver alloy contacts); 60K cycles @ 100 mA, 28 Vdc (DPDT, gold-plated contacts)
- Mechanical life: 100 K cycles
- Initial dielectric strength: UL 61058-1, 500 Vdc, 10 mA/1 minute between open terminals
- Salt spray: SAE J1455, duration 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, duration two hours each direction
- Solder ability: UL 61058-1, 350 °C ±10 °C, 3 seconds
- Approvals: UL, CE
- Measurement: 26,7 mm H x 20 mm W x 15 mm D [1.05 in H x 0.79 in W x 0.59 in D]
Buy the 1MT1-1 Honeywell Miniature Toggle Switch | myMectronic
Purchase the Honeywell 1MT1-1 Miniature Toggle Switch securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 1MT11?
You can click on the BUY or RFQ button to purchase 1MT11 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 1MT11?
You can download the 1MT11 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 1MT11?
Honeywell
