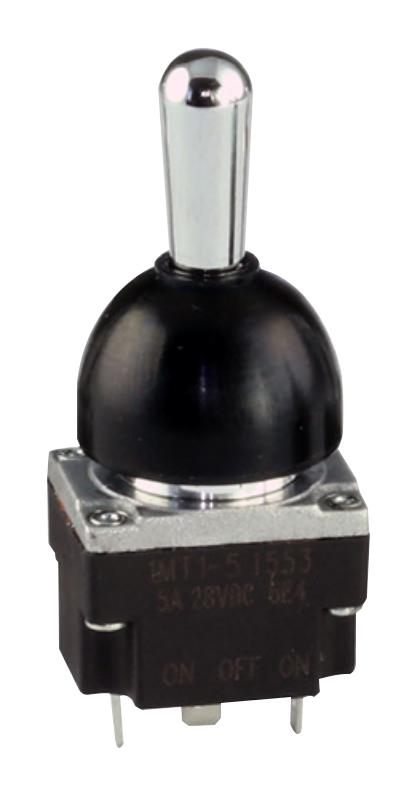

Honeywell 1MT17 Micro Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are rugged, cost-effective, with high sealing levels (IP67/IP68), designed for demanding outdoor and industrial environments. They feature a spring-loaded mechanism for enhanced tactile feedback, multiple circuit options, and are suitable for applications like remote control boxes in concrete pumping, cranes, and material handling. Capable of withstanding temperature extremes from -40°C to 85°C, these switches have up to 60,000 electrical cycles, and their sealed design ensures protection against water and dust ingress, ensuring longer uptime and reliable operation in harsh conditions.
Honeywell 1MT17 Micro Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40°C to 85°C
- Actuators: industry standard polished lever, industry standard height
- Action: 2- or 3-position; momentary and maintained
- Mounting: panel mount with bushing 15/32 in (0.47 in)
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT, multiple circuit options
- Terminations: solder
- Contacts: silver alloy, gold plated
- Amp Rating: 5A, 28 Vdc (silver contacts); 100 mA, 28 Vdc (gold contacts)
- Electrical Life: up to 60,000 cycles
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA/1 min between open terminals
- Salt Spray: 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2 hours each direction
- Solder Ability: suitable for soldering
- Approvals: UL recognized, CE certified
Buy the Buy Honeywell Micro Switch MT Series Part Number 1MT17 Online
Purchase the Honeywell Micro Switch MT Series 1MT17 online to benefit from high durability, IP67/IP68 sealing, and up to 60,000 electrical cycles. Designed for demanding outdoor and industrial environments, these miniature toggle switches feature a robust construction, multiple circuit options, and a spring-loaded mechanism for enhanced tactile feedback. Ideal for remote control applications in concrete pumping, cranes, and material handling, they provide excellent resistance to dust, water, and temperature extremes from -40°C to 85°C, ensuring long-lasting service and minimal maintenance for your critical systems.
Order your Honeywell Series1MT17 miniature toggle switch today and ensure reliable control in harsh environments with IP67/IP68 sealing.
Frequently Asked Questions
Where can I buy Honeywell 1MT17?
You can click on the BUY or RFQ button to purchase 1MT17 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 1MT17?
You can download the 1MT17 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 1MT17?
Honeywell
