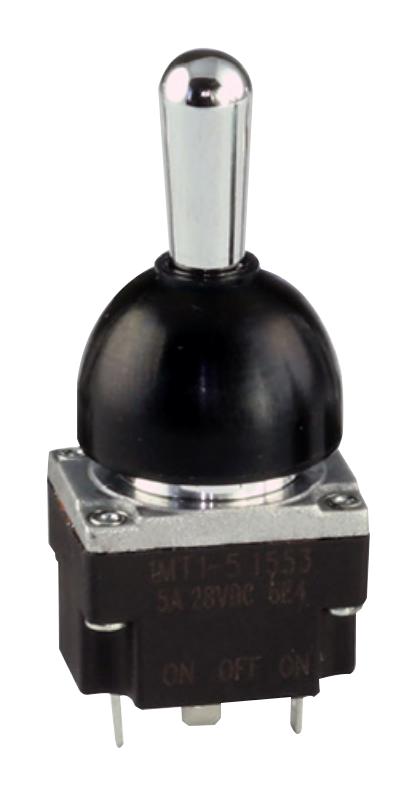

Honeywell 1MT25 Miniature Toggle Switch
Honeywell MICRO SWITCH MT Series miniature toggle switches are designed for rugged outdoor and demanding environments, featuring high sealing, various circuit options, and a spring-loaded mechanism for tactile feedback. They are suitable for small control panels, remote control boxes, and equipment requiring high durability and water resistance with ratings up to IP68. These switches operate reliably across wide temperature ranges, with electrical life cycles up to 60,000 cycles, making them ideal for industrial automation, material handling, and crane controls. They come in multiple configurations, including single and double pole options, with sealed construction for dust and water ingress protection.
Honeywell 1MT25 Miniature Toggle Switch Specifications:
- Sealing: IEC 60529-2001, IP67, IP68 (except terminal parts)
- Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Actuators: industry-standard polished lever
- Action: 2- or 3-position, momentary and maintained
- Mounting: panel mounting with bushing 15/32 in (0.47 in)
- Circuitry: UL 61058-1, SPST, SPDT, DPST, DPDT
- Terminations: solder terminals
- Contacts: silver alloy, gold-plated
- Amp Rating: 5A, 28 Vdc with silver contacts; 100 mA, 28 Vdc with gold contacts
- Electrical Life: up to 60,000 cycles
- Mechanical Life: 100,000 cycles
- Initial Dielectric Strength: 500 Vdc, 10 mA/1 min
- Salt Spray: 96 hours without red rust
- Vibration: UL 60068-2-6, 10 Hz to 500 Hz, 10 G, 2-hour duration
- Solder Ability: UL 61058-1, 350°C ±10°C, 3 sec
- Certifications: UL recognized, CE certified
- Physical Dimensions: 26.7 mm H x 20 mm W x 15 mm D (1.05 in H x 0.79 in W x 0.59 in D)
Buy the Honeywell Series MT Miniature Toggle Switch 1MT25
Purchase the Honeywell Series MT miniature toggle switch online today for dependable performance in harsh environments. With a rugged sealed design, multiple circuit options, and high electrical life span, these switches are perfect for outdoor control panels, material handling, cranes, and automation systems. Easy to install with panel mounting and solder terminals, they provide long-lasting reliability. Ensure your equipment operates smoothly with these high-durability switches, designed for demanding applications where water resistance, vibration tolerance, and extended cycle life are critical. Buy now for proven quality and seamless operation.
Order your Honeywell Series MT 005437 miniature toggle switch today and ensure reliable, sealed operation for your demanding outdoor and industrial control applications.
