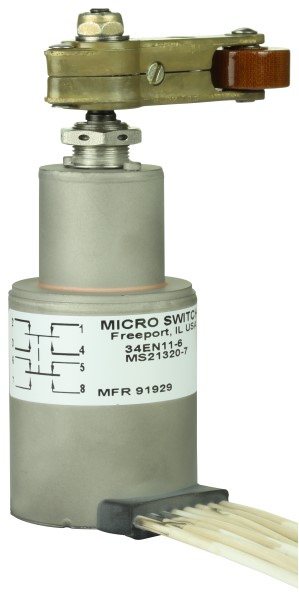

Honeywell 34EN116 Roller Lever Micro Switch
The Honeywell 34EN11-6 is a precision-engineered roller lever microswitch designed for demanding industrial environments. Its corrosion-resistant steel construction and protective coating ensure longevity and reliable operation in harsh conditions. The adjustable roller lever allows for a wide range of positioning options, accommodating various actuation requirements. Compliant with military standard MS21320-7, this microswitch is suitable for applications requiring high reliability and durability, such as automated machinery, control panels, and safety systems. The switch's sealed circuit and robust design contribute to its consistent performance and extended lifespan.
Honeywell 34EN116 Roller Lever Micro Switch Specifications:
- Free Position: 1/8" DIA HOLE FOR FED. MFG. CODE 91929 MS 21320-7
- Locking: Lockscrew .050 WIDE x .050 DEEP SLOT
- Shaft: .050 WIDE x .050 DEEP SLOT
- Dia: .45° + 3°
- Total Travel: 1/4"
- Roller Lever Adjustment: Roller lever may be adjusted for infinite adjustment
- Phenolic Ref: Phenolic Ref .375 x .403 x .010 LAMINATED SCREW
- Corrosion Bushing: Corrosion bushing, and resistant pins steel shaft lever adjustment scale
- Thread: 10-32 UNF-24 THREAD
- Locking Nut: MS21083-N3
- Washer: .436 DIA x .032 THICK
- Adjusting Worm Gear: MSHEX 21340NUT,.62 -04
- Tooth Height: .062
- Hole: .047 DIA HOLE
- Max Travel: 1.859 MAX
- Wire Locking: FOR WIRE LOCKING (MS 35333-136)
- Operating Torque: 2-10 IN-LB MAX
- Release Torque: 12-25 IN-LB MIN
- Differential Overtravel Travel: SEE DETAIL
- Material: COMMERCIAL STANDARD HARDWARE
- Protective Coating: PROTECTIVE COATINGS TO BE APPLIED
