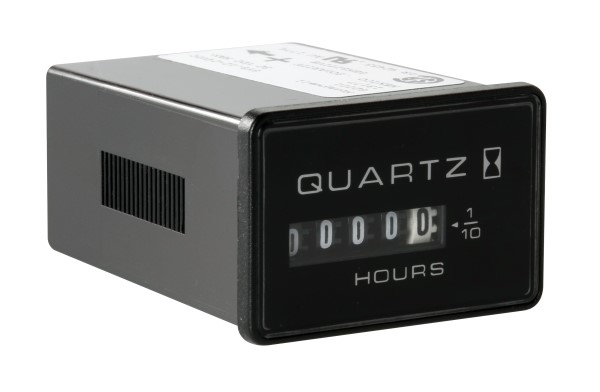

Honeywell 8200155 Quartz Hour Meter
The Honeywell 85000 Series Quartz Hour Meter is a technically advanced timer designed for demanding industrial applications. It boasts a highly reliable drive mechanism, an improved odometer gear train, and a snap-together integrated chassis housed in a shockproof, totally-sealed case. This meter offers exceptional vibration and shock resistance, transient voltage protection, and conforms to MIL-M-3971 standards, making it suitable for use in harsh environments. Customization options are available, including custom logos, polycarbonate lenses, and various terminals.
Honeywell 8200155 Quartz Hour Meter Specifications:
- Operating Time: 10,000 hours with automatic recycle to zero
- Temperature Range: -40°F to +185°F (-40°C to +85°C)
- Quartz Accuracy: +/-200ppm, +/-0.02%
- Operating Voltage Range: 5-110 VDC
- Odometer Type: Precision built relay driven
- Vibration Resistance: 20 g's @ 10-80Hz (SAE J1378), 10 g's (per MIL-M-3971)
- Shock Resistance: 55 g's @ 9-13msec (SAE J1378), 75 g's (per MILM-3971)
- Transient Voltage Protection: Alternator load dump: 150V, EMI: +400V @ 500Hz, Inductive switching and reverse polarity
- Terminals: 1/4" male blade
- Lens Material: Glass
- Case Material: Polyester
- Number Size: 0.12" (3mm)
- Battery System Voltages: 6, 12, 24, 36, 48, 60, 72, and 80 VDC
- UL Recognition: File number AU1774
- CSA Certification: File number LR42455-12
- Conforms To: MIL-M-3971
- Panel Cutout Tolerance: +/- .010"
Buy the 82001-55 HONEYWELL Quartz Hour Meter | myMectronic
Purchase the Honeywell 82001-55 Quartz Hour Meter securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell 8200155?
You can click on the BUY or RFQ button to purchase 8200155 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part 8200155?
You can download the 8200155 datasheet or visit the Honeywell website for support.
Who is the manufacturer of 8200155?
Honeywell
