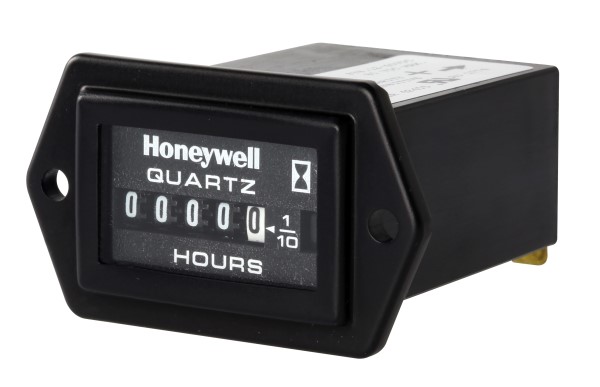

Honeywell 8509444 Quartz Hour Meter
The Honeywell 85000 Series Quartz Hour Meter (part number 85094-44) delivers exceptional performance and reliability in a technically advanced quartz package. Designed with a highly reliable drive mechanism, an improved odometer gear train, and a snap-together integrated chassis, this meter is built to withstand demanding conditions. Its shockproof, totally-sealed case, constructed from engineered plastic, provides protection against acids and solvents. The meter's quartz accuracy ensures precise timekeeping, making it ideal for applications requiring accurate monitoring of operating hours in various industries, including automotive, industrial equipment, and marine.
Honeywell 8509444 Quartz Hour Meter Specifications:
- Operating Time: 10,000 hours with automatic recycle to zero
- Temperature Range: -40°F to +185°F (-40°C to +85°C)
- Quartz Accuracy: +/-200ppm, +/-0.02%
- Operating Voltage: 5-110 VDC
- Vibration Resistance: 20 g's @ 10-80Hz (SAE J1378), 10 g's (per MIL-M-3971)
- Shock Resistance: 55 g's @ 9-13msec (SAE J1378), 75 g's (per MILM-3971)
- Transient Voltage Protection: Alternator load dump: 150V, EMI: +400V @ 500Hz
- Terminals: 1/4" male blade
- Lens Material: Glass
- Case Material: Polyester
- Number Size: 0.12" (3mm)
- Battery System Voltages: 6, 12, 24, 36, 48, 60, 72, and 80 VDC
- UL Recognition: File number AU1774
- CSA Certification: File number LR42455-12
- Compliance: Conforms to MIL-M-3971
