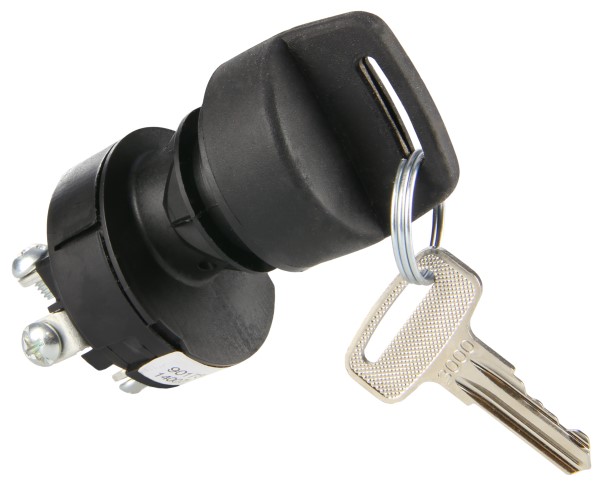

Honeywell 9017309 Key and Ignition Switch
Honeywell key and ignition switches are robust and reliable solutions designed to withstand harsh environments. Featuring customizable options like multiple key codes, terminal types, and circuitry configurations, these switches ensure seamless equipment operation and control. Their environmentally sealed design protects against dirt and moisture, prolonging switch life. With UL certifications and the ability to incorporate custom logos, Honeywell key and ignition switches are suitable for a wide range of applications, from off-road vehicles to industrial machinery.
Honeywell 9017309 Key and Ignition Switch Specifications:
- Electrical rating (res.): 12 Vdc, 20 A; 24 Vdc, 8 A
- Operating temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Cycle life at electrical load: 25000 cycles
- Position: Two, three, or four position
- Mounting: Panel
- Depth behind panel: 43.43 mm [1.71 in] / 39.88 mm [1.57 in]
- Sealing IP rating: Pending
- Contacts: Brass/tin copper
- Approvals: UL available
- Front housing material: 40 % mineral-filled nylon
- Rear housing material: Polypropylene
- Weight: 68 g [0.15 lb]
- Connector type: Integral connector (Metri-Pack, Sumitomo) / Screw terminal
- Key style: Two-sided
- Key return: 6896
- Key code: A&D
- Circuitry: O = Circuit Open; X = Circuit Closed
