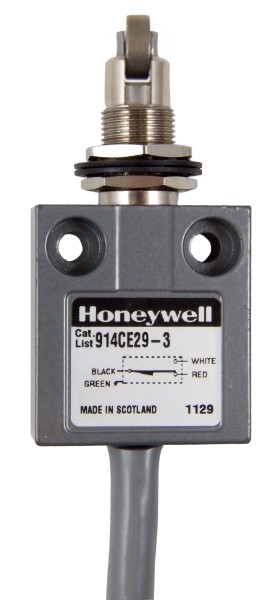

Honeywell 914CE293 914CE Miniature Precision Limit Switch
Honeywell’s MICRO SWITCH 914CE Series miniature precision limit switches are designed for demanding industrial applications. These switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA, IP, and other environmental requirements. The rugged, compact construction, wide selection of actuators, and gang mounting capability make them suitable for machine tools, material handling, and access solutions. Available with M12 connectors or pre-leaded cables, these switches deliver consistent performance in harsh environments.
Honeywell 914CE293 914CE Miniature Precision Limit Switch Specifications:
- Description: Compact enclosed limit switch
- Actuators: Top pin plunger, parallel roller plunger, cross roller plunger, front rotary, top pin plunger with boot seal, top adjustable plunger, wobble, manually operated, ball bearing plunger
- Terminations: Connector (dc), 4-pin male, M12 thread, Connector (ac), 4-pin male, 1/2 in x 20 thread
- Switching options: SPDT, snap action contacts (1NC/1NO)
- Sealing: NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13, IP66, IP67, IP68
- Operating temperature: 0 °C to 105 °C (-40 °F to 221 °F); optional -40 °C to 105 °C (-40 °F to 221°F)
- Mechanical life: Up to 10 million (up to 5 million for wobbles)
- Thermal current: 1 A
- Rated insulation voltage (Ui): 250 V
- Rated impulse withstand voltage (Uimp): 1.5 kV
- Short circuit protection: Quick blow fuse suitable for rated current
- Pollution degree: 3
- Min. actuation speed: 0.003 m/s
- Max. actuation speed: 0.1 m/s
- Max. actuation frequency: ac – 200 Hz; dc – 20 Hz
- Shock: 50 g – IEC 60068-2-27
- Vibration: 10 g – IEC 60068-2-6
- Approvals: cURus, CE
- Conforming to standards: IEC 947-5-1, EN 60947-5-1; AC14 D300, DC13 R300
- UL recognition: UL recognized to US and Canadian Requirements
Buy the 914CE29-3 HONEYWELL Miniature Precision Limit Switch | myMectronic
Purchase the Honeywell 914CE29-3 Miniature Precision Limit Switch securely and reliably online.
Buy Now
