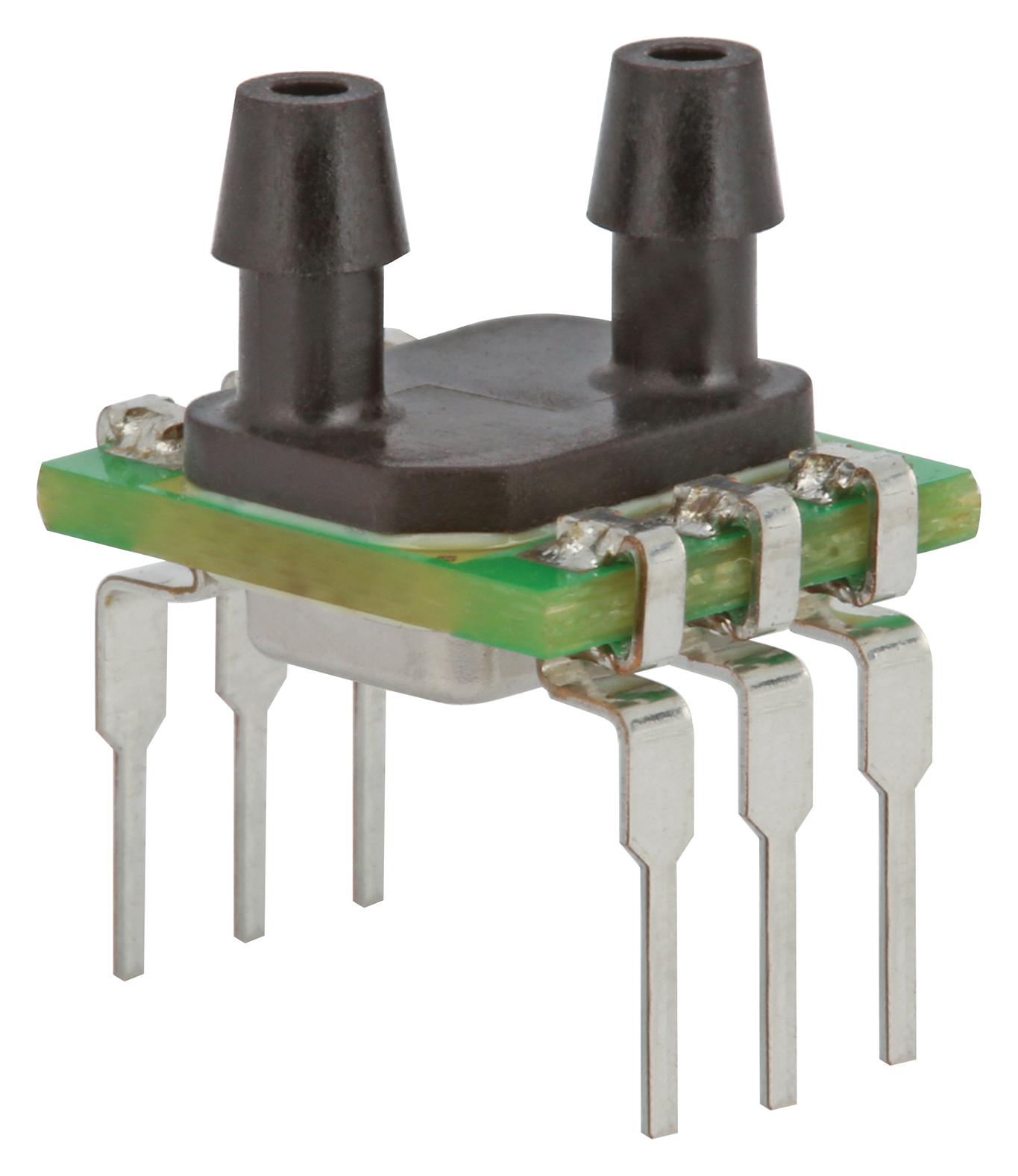

Honeywell ABP2DDAN005NDAA5XX Board Mount Pressure Sensor
The ABP2 Series are high-accuracy board mount pressure sensors with digital and analog outputs, suitable for liquid media and a wide pressure range from 6 mbar to 12 bar. They feature temperature compensation, calibration for non-linearity, hysteresis, and repeatability, and support interfaces like I2C and SPI. Their compact design simplifies integration into small devices, reduces manufacturing costs, and enables versatility for medical, industrial, commercial, and transportation applications. The sensors offer high burst pressures, long-term stability, and compatibility with various media and environmental conditions.
Honeywell ABP2DDAN005NDAA5XX Board Mount Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH2O to 175 psi
- Accuracy: ±0.25 %FSS BFSL
- Total Error Band (TEB): as low as +1.5%
- Long-term stability: as low as 40.2 %FSS
- Calibration: Calibrated and temperature compensated
- Outputs: 24-bit digital (I2C, SPI) and ratiometric analog
- Overpressure: Max pressure safely applied without damage (see pressure ranges)
- Burst Pressure: Max pressure before media escape (see pressure ranges)
- Operating Temp: -40°C to 110°C (-40°F to 230°F)
- Supply Voltage: 3.3Vdc / 5Vdc (digital and analog versions)
- Power Consumption: as low as 0.01 mW (digital), varies with interface
- Media Compatibility: Liquids (with gel coating), dry gases
- Environmental: Humidity 0-95% RH, vibration 15g, shock 75g, life >1 million cycles
- Certifications: NSF169, BPA Free, LFGB, RoHS, REACH
- Physical: Compact board mount, DIP, SMT, or leadless packages, various pressure port styles
Buy the Buy Honeywell ABP2 Series Part Number ABP2DDAN005NDAA5XX Online
Experience superior performance and ease of integration with Honeywell's ABP2 Series pressure sensors. Designed for accuracy, durability, and liquid media compatibility, these sensors support a wide pressure range from 6 mbar to 12 bar and feature digital interfaces like I2C and SPI. Their compact size allows seamless incorporation into medical, industrial, and automotive systems, reducing costs and simplifying design. With long-term stability, comprehensive calibration, and environmental certifications, the ABP2 Series ensures dependable operation in demanding conditions, making it the ideal choice for precision pressure monitoring needs.
Buy Honeywell ABP2 Series ABP2DDAN005NDAA5XX now and experience unmatched reliability, precision, and versatility for pressure measurement applications.
Frequently Asked Questions
Where can I buy Honeywell ABP2DDAN005NDAA5XX?
You can click on the BUY or RFQ button to purchase ABP2DDAN005NDAA5XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2DDAN005NDAA5XX?
You can download the ABP2DDAN005NDAA5XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2DDAN005NDAA5XX?
Honeywell
