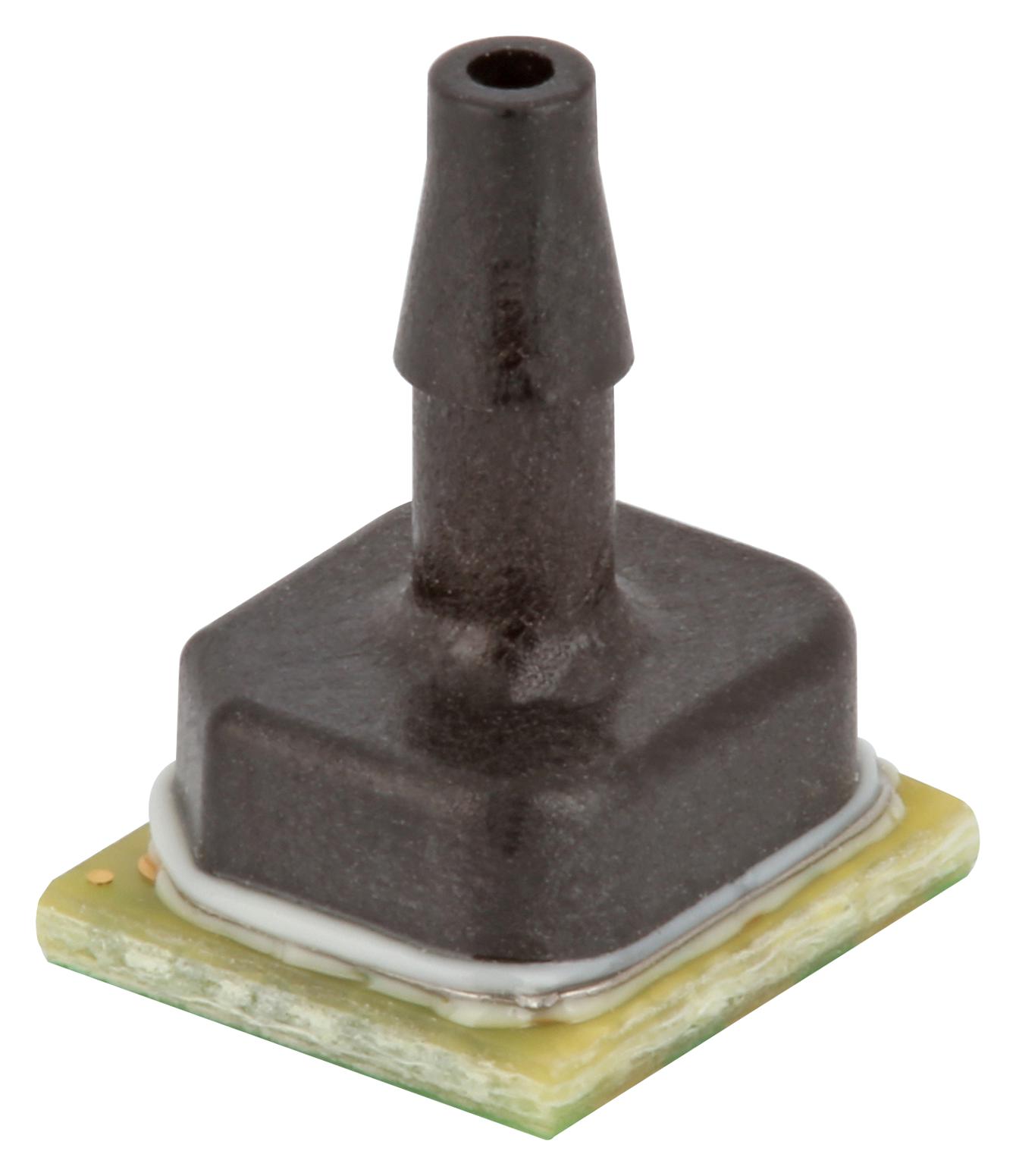

Honeywell ABP2LANT030PGAA5XX Pressure Sensor
The ABP2 Series are high-precision, board-mounted pressure sensors with digital and analog outputs, suitable for liquid media. Calibrated and temperature compensated for accuracy, they support a wide pressure range from 6 mbar to 12 bar and operate reliably from -40°C to 110°C. The sensors feature low power consumption, IP connectivity, and optional liquid media protection, making them ideal for industrial, medical, and IoT applications. Their compact design simplifies integration into systems requiring high accuracy, stability, and versatile communication options for remote monitoring and control.
Honeywell ABP2LANT030PGAA5XX Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar (600 Pa to 1.2 MPa) and 2 inH2O to 175 psi
- Output: Digital (I2C/SPI) and analog
- Calibration: Fully calibrated and temperature compensated
- Accuracy: ±0.25 % FSS, Total Error Band as low as +1.5 %
- Operating Temperature: -40°C to +110°C
- Supply Voltage: 3.3 Vdc or 5 Vdc
- Power Consumption: as low as 0.01 mW (digital), variable for analog
- Liquid Media Compatibility: Food-grade silicone gel coating option
- Ingress Protection: Meets IEC 60068-2-60 for moisture sensitivity, IP level varies
- Construction: Silicon MEMS sensor with ceramic and silicone encapsulation
- Response Rate: Updated at approximately 200 Hz
- Standards: ISO 9001 compliant, IEC 60068-2-60 moisture sensitivity level 1
Buy the Honeywell Series ABP2 Liquid Media Pressure Sensor: ABP2LANT030PGAA5XX
Order Honeywell ABP2 Series liquid media pressure sensor online today and benefit from high accuracy, wide pressure range, and low power consumption. This sensor, suitable for industrial, medical, and IoT applications, features digital and analog outputs, temperature compensation, and optional liquid media protection with food-grade silicone gel coating. Its compact design simplifies system integration while maintaining excellent stability and performance across a broad temperature range. Ideal for remote monitoring, control, and automation needs, ensure your system's precision with this reliable sensor available now online.
Buy Honeywell ABP2LANT030PGAA5XX high-precision liquid media pressure sensor now and experience unmatched reliability and performance for industrial, medical, or IoT applications.
Frequently Asked Questions
Where can I buy Honeywell ABP2LANT030PGAA5XX?
You can click on the BUY or RFQ button to purchase ABP2LANT030PGAA5XX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABP2LANT030PGAA5XX?
You can download the ABP2LANT030PGAA5XX datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABP2LANT030PGAA5XX?
Honeywell
