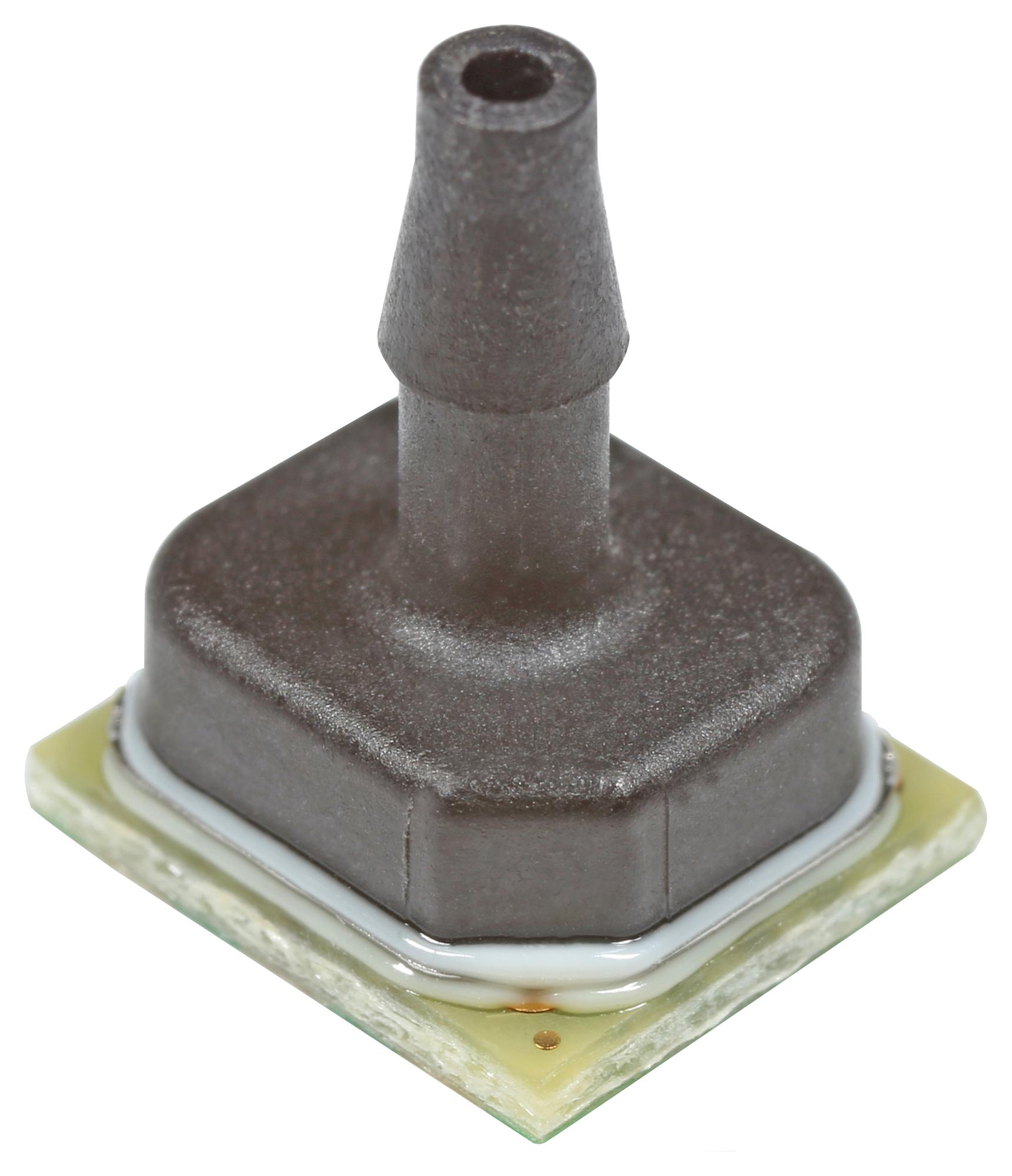

Honeywell ABP2LANT060PG2A3XX Pressure Sensor
The ABP2 Series are high-accuracy, compact board mount pressure sensors suitable for various applications including medical, industrial, commercial, and transportation. They are available with digital or analog output options, capable of measuring from as low as 6 mbar up to 12 bar, with liquid media compatibility through protective coatings. Calibrated and temperature compensated with a total error band as low as ±1.5%, they feature rugged construction, wide temperature ranges from -40°C to 110°C, and low power consumption. These sensors are ideal for precise pressure monitoring in IoT-enabled, space-constrained systems, offering ease of integration, reliable performance, and compliance with industry standards.
Honeywell ABP2LANT060PG2A3XX Pressure Sensor Specifications:
- Measurement Range: 6 mbar to 12 bar | 600 Pa to 1.2 MPa | 2 inH,O to 175 psi
- Accuracy: ±0.25 %FSS BFSL
- Total Error Band: as low as ±1.5%
- Long-term Stability: as low as 40.2 %FSS
- Overpressure Limit: Up to 1.2 MPa (depending on model)
- Burst Pressure: Specified per model, typically >2x measurement range
- Temperature Range: -40°C to 110°C [-40°F to 230°F]
- Supply Voltage: 3.3 Vdc or 5 Vdc (digital), 2.8V to 5.5V (analog)
- Power Consumption: as low as 0.01 mW (digital), varies with supply and mode
- Output: 24-bit digital I2C/SPI, ratiometric analog
- Liquid Media Compatibility: Yes, with protective gel coating
- Packaging: Tube, optional tape and reel
- Certifications: ISO 9001, REACH, RoHS, NSF-169, LFGB, BPA Free
- Standard Pressure Ports: Radial and axial barbed, for flexible installation
- Compliance: IPC/JEDEC J-STD-020E Level 1, Moisture Sensitivity
Buy the Buy Honeywell Pressure Sensor Part Number ABP2LANT060PG2A3XX Online
Purchase the Honeywell ABP2LANT060PG2A3XX pressure sensor online now to ensure your systems benefit from premium accuracy, flexibility, and durability. With wide measurement range, low power draw, and liquid media compatibility, this sensor is perfect for IoT applications, medical devices, and industrial controls. Its compact design saves space while delivering precise pressure data, making it ideal for space-constrained projects. Enjoy quick delivery, industry-standard certification, and the confidence of using a trusted brand recognized for quality and innovation in sensing solutions.
Order your Honeywell ABP2LANT060PG2A3XX pressure sensor today and experience reliable, accurate pressure monitoring for your industrial or medical projects.
