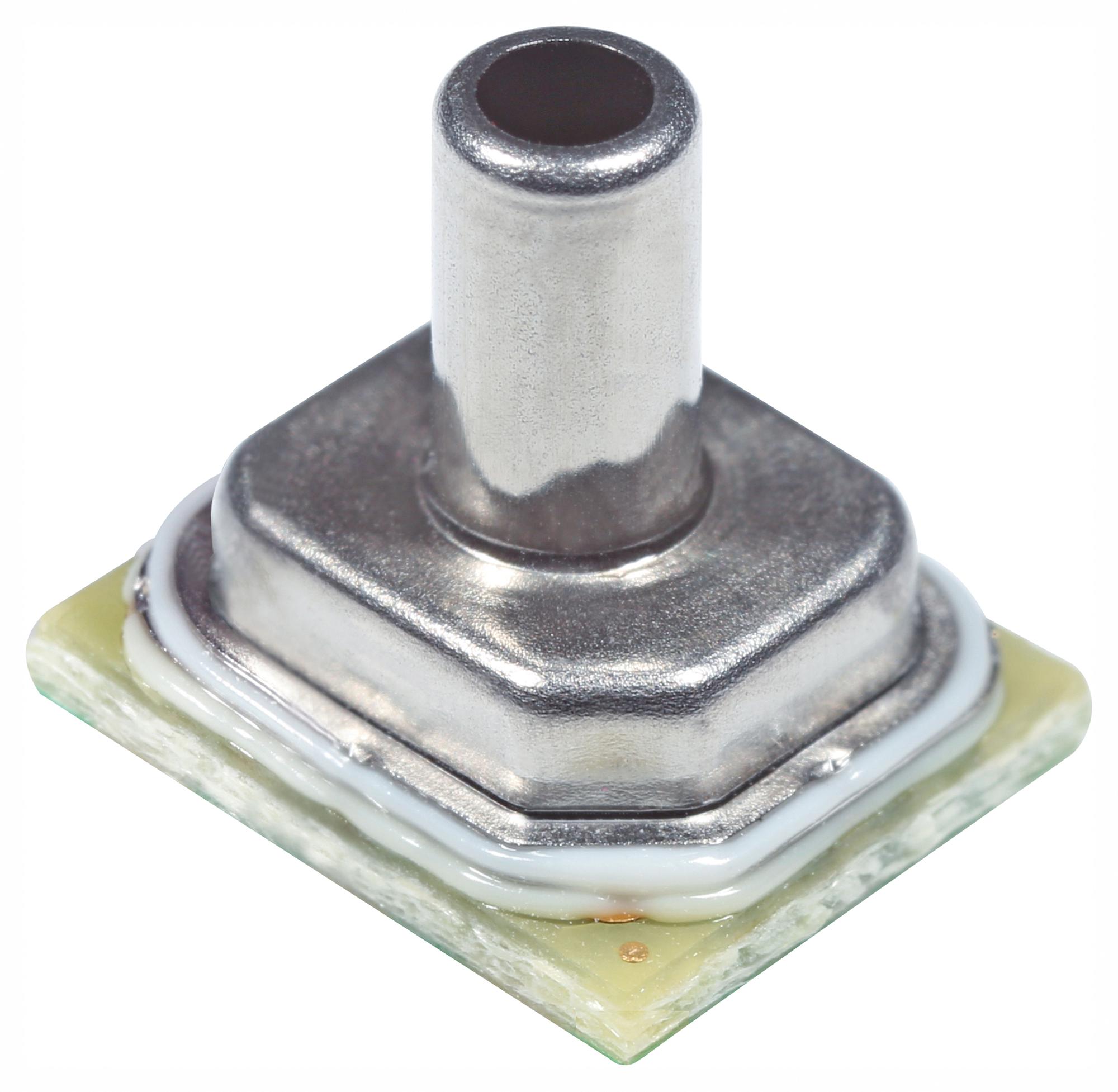

Honeywell ABP2LSNT030PASA3XX Board Mount Pressure Sensor
The ABP2 Series are high-accuracy, board-mount pressure sensors designed for diverse industrial, medical, and commercial applications. Offer both digital and analog outputs with liquid media capability, these sensors feature exceptional stability, wide pressure ranges from 6 mbar to 12 bar, and temperature compensation over -40°C to 110°C. Suitable for use in HVAC, medical devices, process control, and IoT solutions, the series includes options with integrated electronics for ease of plug-and-play integration. Compact, reliable, and compliant with industry standards, they provide precise pressure measurement in a compact package.
Honeywell ABP2LSNT030PASA3XX Board Mount Pressure Sensor Specifications:
- Pressure Range: 6 mbar to 12 bar (600 Pa to 1.2 MPa), 2 inH₂O to 175 psi, 1 to 12 MPa
- Accuracy: ±0.25% FSS, Total Error Band as low as +1.5%
- Temperature Range: -40°C to 110°C (-40°F to 230°F)
- Electrical Output: Digital (I2C, SPI) and analog versions
- Supply Voltage: 3.3Vdc to 5Vdc
- Power Consumption: As low as 0.01 mW (digital), comparable for analog
- Liquid Media Compatibility: Food-grade silicone gel coating included
- Overpressure Tolerance: Up to 3x rated pressure
- Burst Pressure: Exceeds rated pressure for safety
- Pressure Media: Dry gases, liquids (water, saline), food-grade silicone gel
- Standards: ISO 9001, IPC/JEDEC J-STD-020E (moisture sensitivity Level 1), REACH, RoHS, NSF-169, LFGB, BPA compliance
- Electrical Interface: Digital (I2C, SPI), Ratiometric analog, with optional temperature output
- Dimensions: Compact PCB mount package, detailed in datasheet diagrams
Buy the Honeywell ABP2LSNT030P– Reliable Pressure Sensor for Industrial Applications
Order the Honeywell ABP2LSNT030P pressure sensor online today and improve your system’s accuracy and reliability. This versatile, high-precision sensor is ideal for industrial, medical, and IoT applications, featuring wide pressure ranges from 6 mbar to 12 bar and temperature compensation from -40°C to 110°C. Its liquid media capability, digital and analog outputs, and compliance with strict industry standards ensure seamless integration and long-term performance. Whether for HVAC, process control, or medical monitoring, purchase online now and benefit from quick delivery, excellent quality, and premium support.
Buy Honeywell ABP2LSNT030P now and experience unmatched reliability, precise pressure measurement, and versatile integration for your industrial or medical project.
