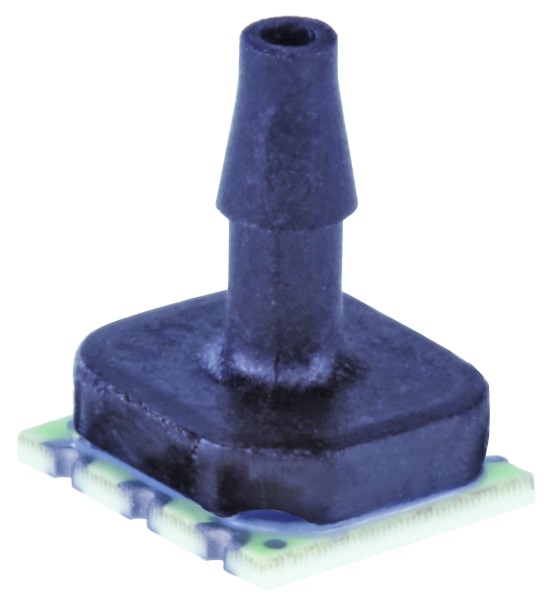

Honeywell ABPLANN001PG2A5 High Accuracy Pressure Sensor
The Honeywell ABP Series piezoresistive pressure sensors provide high accuracy and versatility for a wide range of applications. These sensors feature a ratiometric analog or digital output, calibrated and temperature compensated for enhanced performance. Available options include liquid media compatibility for wet environments and a sleep mode for extended battery life. They are suitable for medical devices, industrial automation, and commercial appliances, offering simplified design integration and cost-effectiveness.
Honeywell ABPLANN001PG2A5 High Accuracy Pressure Sensor Specifications:
- Total Error Band: ±1.5 %FSS
- Accuracy: ±0.25 %FSS BFSL
- Supply Voltage: -0.3 to 6.0 Vdc
- Pressure Range: 60 mbar to 10 bar | 6 kPa to 1 MPa | 1 psi to 150 psi
- Operating Temperature: 0°C to 50°C [32°F to 122°F]
- Output: Ratiometric analog or I[2] C- or SPI-compatible 12-bit digital
- Power Consumption: 2 uA (sleep mode)
- Moisture Sensitivity Level: 1
- Storage Temperature: -40°C to 85°C
- Humidity: 0 %RH to 95 %RH (non-condensing)
- Vibration: 15 g, 10 Hz to 2 kHz
- Shock: 100 g, 6 ms duration
- Life: 1 million pressure cycles minimum
- Wetted Materials: Refer to datasheet table
Buy the ABPLANN001PG2A5 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell ABPLANN001PG2A5 pressure sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ABPLANN001PG2A5?
You can click on the BUY or RFQ button to purchase ABPLANN001PG2A5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ABPLANN001PG2A5?
You can download the ABPLANN001PG2A5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ABPLANN001PG2A5?
Honeywell
