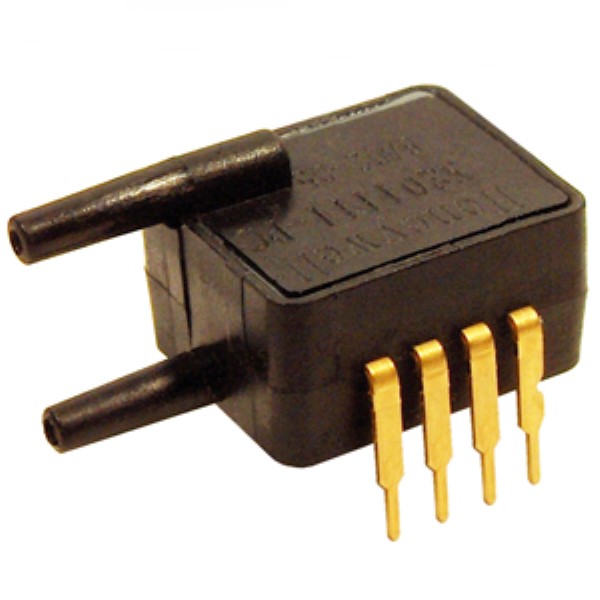

Honeywell ASDXRRX005ND7A3 Silicon Pressure Sensor
The Honeywell ASDX Series Silicon Pressure Sensors provide a highly accurate and reliable solution for pressure measurement in a variety of industrial applications. Featuring a precision ASIC for conditioning and temperature compensation, these sensors offer digital output options (I²C or SPI) and are calibrated over a wide temperature range. They are suitable for flow calibrators, ventilation monitoring, gas instrumentation, and more, ensuring precise and stable pressure readings. The sensors are designed for use with noncorrosive fluids and manufactured to ISO 9001 standards.
Honeywell ASDXRRX005ND7A3 Silicon Pressure Sensor Specifications:
- Supply voltage (Vsupply) Min: -0.3
- Supply voltage (Vsupply) Max: 6.0
- Voltage to any pin: -0.3
- Digital clock frequency I2C: 100
- Digital clock frequency SPI: 50
- ESDsusceptibility: 3
- Storage temperature Min: -50
- Storage temperature Max: 125
- Lead temperature: 250
- External capacitance between Vsupply and ground: 100
- Supply voltage 3.3 Vdc: 3.0
- Supply voltage 5.0 Vdc: 4.75
- Supply current: 2.0
- Compensated temperature range: 0
- Operating temperature range Min: -20
- Overpressure: 2Xoperating pressurerangeminimum
- Burstpressure: 3X operating pressure range minimum
- Startup time: 2.8
- Response time: 0.46
- I2C or SPI voltage level low: 0.2
- I2C or SPI voltage level high: 0.8
- Pull-upon SDA and SCL: 1
- Total error band: 2.0
- Output resolution: 12
- Humidity: 0% to 95%RH non-condensing
- Vibration: 10 G at20Hzto2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles minimum
- Covers Port 1: glass-filled PBT
- Covers Port 2: glass-filled PBT
- Adhesives: silicone
- Electronic components: silicon and glass
