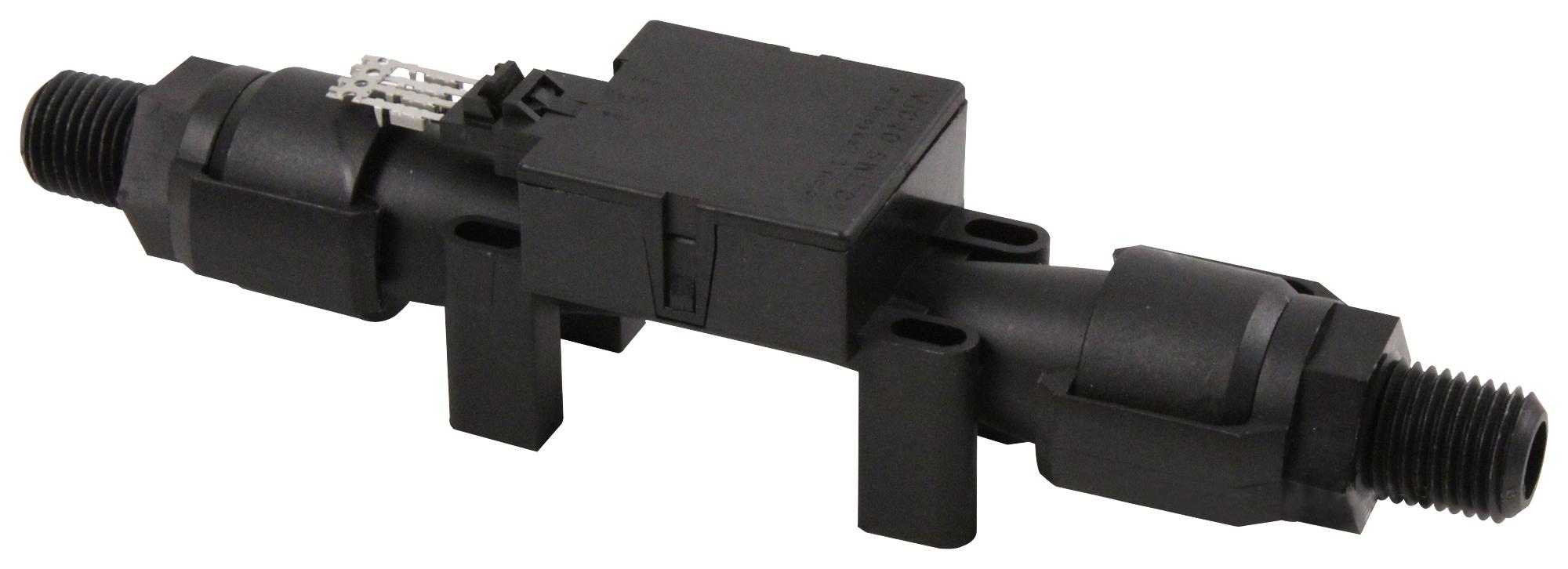

Honeywell AWM5102VN Airflow Sensor
The Honeywell AWM5102VN is a microbridge mass airflow sensor within the AWM5000 Series, designed for precise measurement of airflow. Its venturi design minimizes pressure drop, while the active laser trimming ensures consistent performance. The sensor is suitable for applications like damper control, gas analyzers, and medical respirators, offering a linear voltage output and remote mounting capability. The rugged plastic package is designed to withstand common mode pressure and shock, ensuring reliable operation in demanding environments. It contains circuitry for amplification, linearization, compensation, and gas calibration.
Honeywell AWM5102VN Airflow Sensor Specifications:
- Signal Conditioning: Amplified
- Flow/Pressure Range: 0 SLPM to 10.0 SLPM
- Output Voltage @ Trim Point: 5.0 Vdc @ Full Scale Flow
- Port Style: 1/4 in - 18 NPT
- Series Name: AWM5000 Series
- Null Shift over Temperature: ± 0.050 Vdc typ., &@177 0.20 Vdc max.
- Output Shift over Temperature: ± 7% Reading
- Maximum change in flow rate: 5.0 SLPM/s
- Max. Repeatability & Hysteresis Error: ± 0.50% Reading
- Null Offset: 0.95 Vdc min., 1 Vdc typ., 1.05 Vdc max.
- Response Time: 60 ms max.
- Supply Voltage: 8.0 Vdc min., 10.0 Vdc typ., 15.0 Vdc max.
- Maximum Common Mode Pressure: 50.0 psi
- Power Consumption: 100 mW max.
- Operating Temperature Range: -20 °C to 70 °C [-4 °F to 158 °F]
- Storage Temperature Range: -20 °C to 70 °C [-4 °F to 158 °F]
- Media Compatibility: Dry gas only
- Weight: 60 g
- Shock: 100 g peak 6 ms half-sine (3 drops, each direction of 3 axes)
- Availability: Global
- Comment: Nitrogen calibration gas. This calibration is identical to using oxygen or air as calibration gas.
