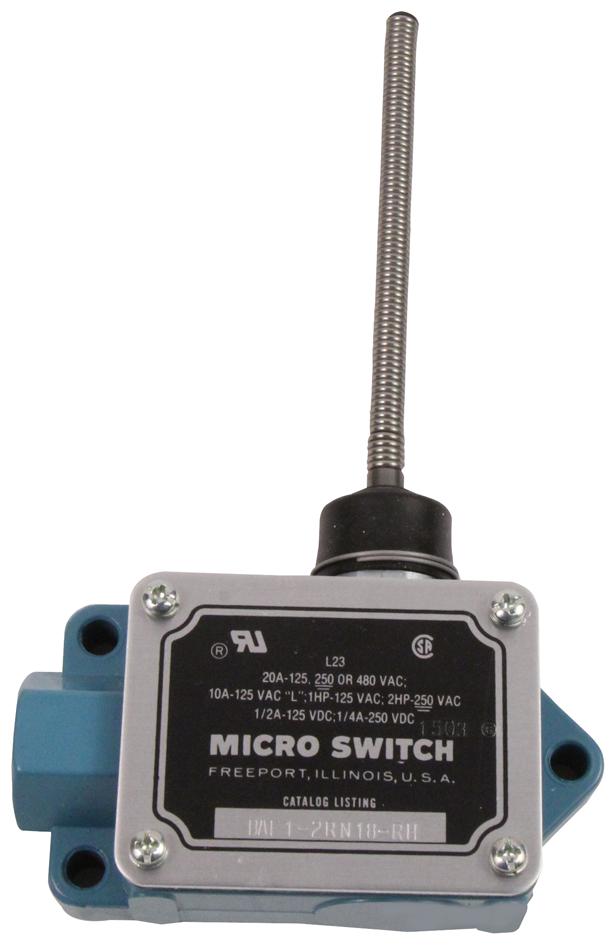

Honeywell BAF12RN18RH Limit Switch
The BAF1-2RN18-RH is a versatile high-capacity enclosed limit switch with a wobble coil spring lever actuator, designed for industrial, agricultural, and logistics applications. Featuring an elastomer boot on sealed versions for contamination protection and a seal gasket between the cover and enclosure, it allows easy wiring and switch replacement without full disassembly. Constructed with a cast aluminium housing and three-hole mounting, it supports momentary or maintained contacts, includes a grounding screw, and is suitable for environments requiring robust sealing and reliable operation. The actuator operates from any direction except direct pull, providing flexible installation options.
Honeywell BAF12RN18RH Limit Switch Specifications:
- Housing Material: Cast aluminium
- Enclosure Ratings: NEMA 1, 3, 4, 13
- Actuator Type: Wobble coil spring lever
- Pretravel: 5.56 mm [0.219 in]
- Overtravel: 6.35 mm [0.250 in]
- Operating Force: 8.90 N [2 Ib]
- Electric Rating: 20 A, 125 Vac or 250 Vac, SPDT, maintained or momentary contacts
- Switching Options: SPDT, 20 A, 125/250 Vac, with seal boot
- Mounting: Three-hole, cast aluminium enclosure
- Seal: Elastomer boot on sealed versions, seal gasket between cover and enclosure
- Temperature Range: -32°C to 71°C [-25°F to 160°F]
- Approvals: UL recognized, CSA certified
- Conduit Connection: 1/2 in-14 NPT
- Grounding: Ground screw included
- Design: Enclosed limit switch with easy wiring and replaceable plug-in switch
- Application suitability: Industrial machinery, agricultural equipment, conveyors
Buy the Honeywell BAF12RN18RH – Reliable Limit Switch for Industrial Applications
Purchase the Honeywell BAF12RN18RH limit switch online today and experience dependable performance for your industrial, agricultural, and logistics systems. Its high-capacity ratings, sealed elastomer boot, and cast aluminium housing ensure durability and protection against contaminants. The easy-to-install design allows for quick wiring and switch replacement without dismantling the entire unit, saving time and reducing downtime. Suitable for demanding environments, this switch provides flexible mounting options, reliable switching, and compliance with industry standards, making it the ideal choice for ensuring operational safety and efficiency.
Buy Honeywell BAF12RN18RH high-capacity enclosed switch now and enhance your industrial machinery with reliable, sealed operation and flexible mounting options.
