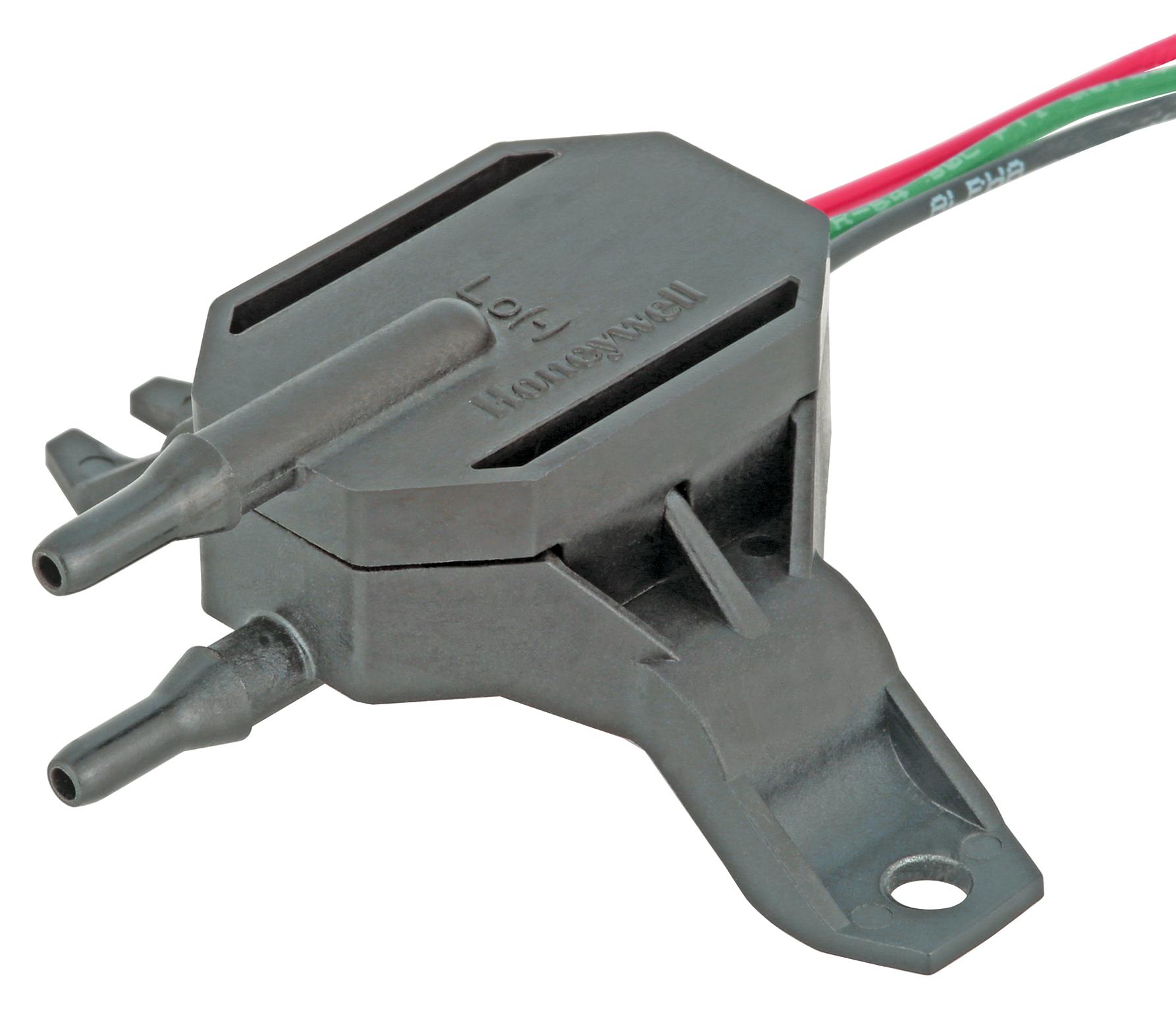

Honeywell DPRCAN0010NG0000A5 Pressure Sensor
The Honeywell DPR Series is a highly accurate, compensated board mount pressure sensor designed for industrial applications. Featuring a ratiometric analog output, it measures differential and gage pressures from +1.6 mbar to +25 mbar (or +160 Pa to +2.5 kPa) with a typical accuracy of +0.25%FSS. Built with a robust housing and industry-standard mounting, it offers excellent durability, internal diagnostics, and bias compensation across -20°C to 70°C. Ideal for HVAC, leak detection, pneumatic control, and other industrial environments, this sensor ensures reliable performance with minimal maintenance.
Honeywell DPRCAN0010NG0000A5 Pressure Sensor Specifications:
- Pressure Range: +1.6 mbar to +25 mbar | +160 Pa to +2.5 kPa
- Pressure Types: Differential and gage pressures
- Accuracy: +0.25%FSS BFSL
- Supply Voltage: 5.0 Vdc
- Supply Current: 27-35 mA
- Operating Temperature: -40°C to +85°C
- Compensated Temperature Range: -20°C to 70°C
- Response Time: 1 ms
- Output: Analog voltage, ratiometric to supply voltage
- Durability: 1 million pressure cycles minimum
- Mechanical: Industry-standard mounting, robust housing
- Materials: Pressure ports and covers of high-temp polyamide, alumina ceramic substrate
- Vibration and Shock Resistance: 15g, 10 Hz to 2 kHz; 100g shock
- Protection: Overvoltage and reverse polarity protected
- Certifications: RoHS compliant
- Wetted Materials: Silicone rubber O-ring, epoxy, ceramics, silicon, glass
- Maximum Overpressure: Safe up to specified limits, tested to 1 million cycles
- Power Supply: Single 5 V supply, with reverse polarity protection
- Lifecycle: ≥1 million pressure cycles
Buy the Honeywell DPR Series – Reliable Pressure Sensor for Industrial Applications
Enhance your industrial systems with the Honeywell DPR Series pressure sensor. Featuring high accuracy, durable construction, and internal diagnostics, it offers stable performance across a wide temperature range. Its industry-standard mounting and robust housing make installation straightforward and maintenance minimal. Ideal for HVAC, leak detection, pneumatic control, and industrial automation, this sensor delivers precise pressure measurements with a quick response time and reliable long-term operation. Invest now for dependable pressure monitoring in your applications.
Buy Honeywell DPR pressure sensor now and ensure reliable, accurate readings in HVAC, leak detection, and industrial control systems.
Frequently Asked Questions
Where can I buy Honeywell DPRCAN0010NG0000A5?
You can click on the BUY or RFQ button to purchase DPRCAN0010NG0000A5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part DPRCAN0010NG0000A5?
You can download the DPRCAN0010NG0000A5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of DPRCAN0010NG0000A5?
Honeywell
