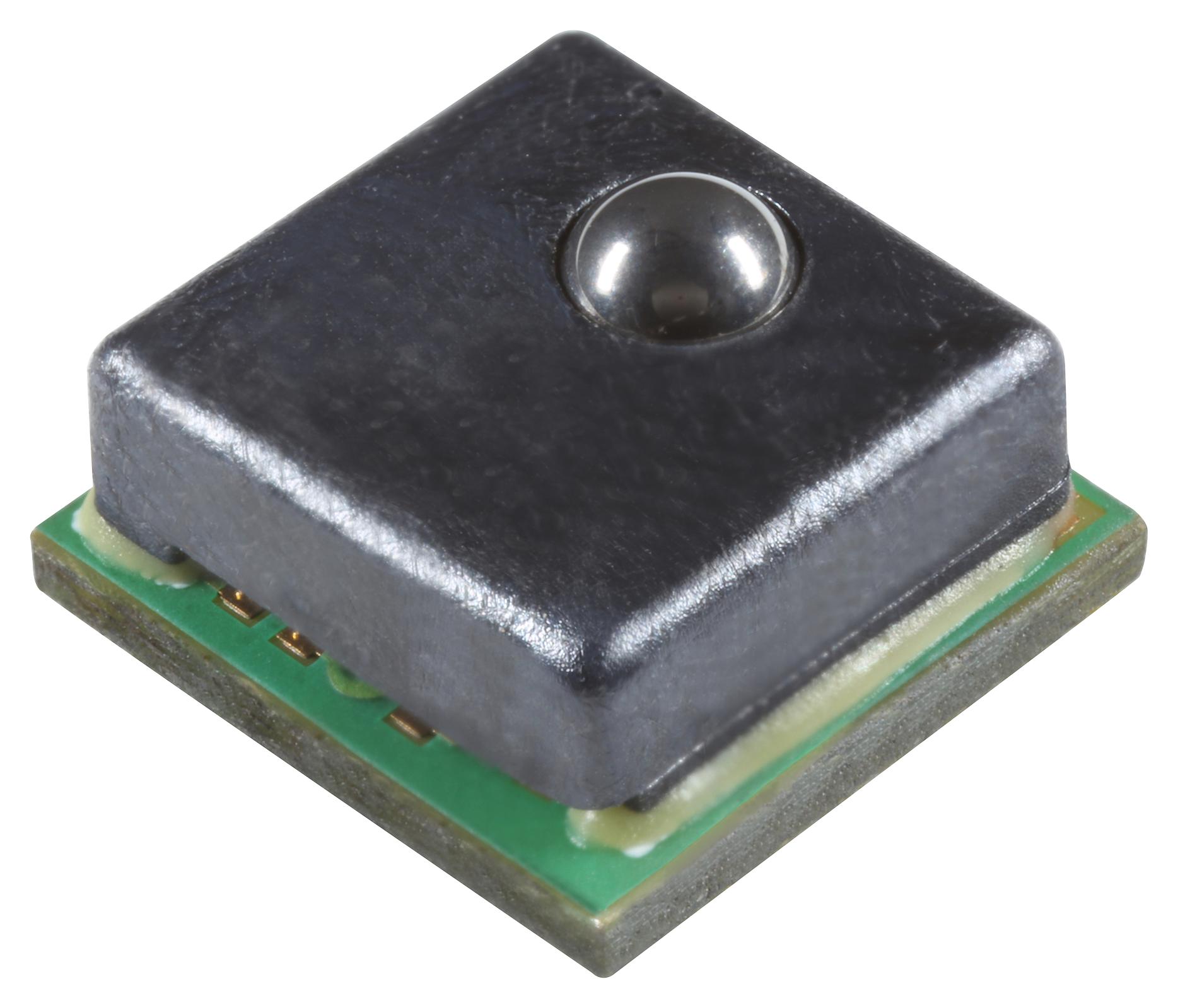

Honeywell FMAMSDXX005WC2C3 Force Sensor
The FMA series are piezoresistive force sensors that provide a digital output for measuring force over a specified full-scale range and temperature span. These sensors are fully calibrated and temperature compensated for factors such as sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board ASIC. They feature a mechanically coupled, sphere contact element for easy integration with tubing, membranes, or plungers, ensuring repeatable performance and reliable mechanical connection. Designed and manufactured in accordance with ISO 9001 standards, these sensors deliver a stable output proportional to the applied force and are commonly used in medical and industrial applications. Key features include a compensated and amplified sensor with a force range of 5N, equipped with diagnostics for shorts and opens, and an I2C interface at address 0x28. Operating on 3.3V ±10%, they have a transfer function ranging from 20% to 80%, a compact size of 5mm x 5mm, and operate within a temperature range of 5°C to 50°C. The sensors consume low power (14mW), offer high part-to-part repeatability, and have a robust, durable design suitable for situations with over-force conditions.
Honeywell FMAMSDXX005WC2C3 Force Sensor Specifications:
- Size: 5mm x 5mm
- Force Range: 5N
- Output: Digital (I2C at address 0x28)
- Transfer Function: 20% to 80%
- Supply Voltage: 3.3V ±10%
- Power Consumption: 14mW
- Operating Temperature: 5°C to 50°C
- Temperature Range (compensated): 5°C to 50°C
- Overforce Limit: 3X force range
- Accuracy: +2% FSS typical
- Part-to-Part Repeatability: Enhanced
- Durability: Designed to withstand overforce conditions
- Construction: Stainless steel sphere contact element
- Diagnostic Functions: Short and open circuit detection
- Standards: ISO 9001 compliant
- Environmental: Humidity 0–95% RH, non-condensing
- Shock & Vibration: MIL-STD-202 compliant
- Lifecycle: Minimum 1 million full force cycles
Buy the Honeywell FMASeries – Reliable 5N Force Sensor for Industrial Applications
Get the Honeywell FMA Series force sensor online today to ensure precise force measurement for your industrial or medical applications. This compact and reliable sensor offers a 5N force range with a digital I2C interface at address 0x28, which makes integration seamless. Fully calibrated and temperature compensated, it provides consistent accuracy between 5°C and 50°C. Its low power consumption of 14mW and robust stainless steel sphere contact element ensure durability and efficiency. Designed to withstand overforce conditions up to three times the force range, this sensor is ideal for critical measurement tasks. Quick to install, easy to interface, and built to last, it is your dependable choice for high-performance force sensing solutions. Buy online now to improve your system's precision and reliability.
Order your Honeywell FMAMSDXX005WC2C3 sensor today and enhance your industrial or medical projects with this compact, accurate force measurement device.
