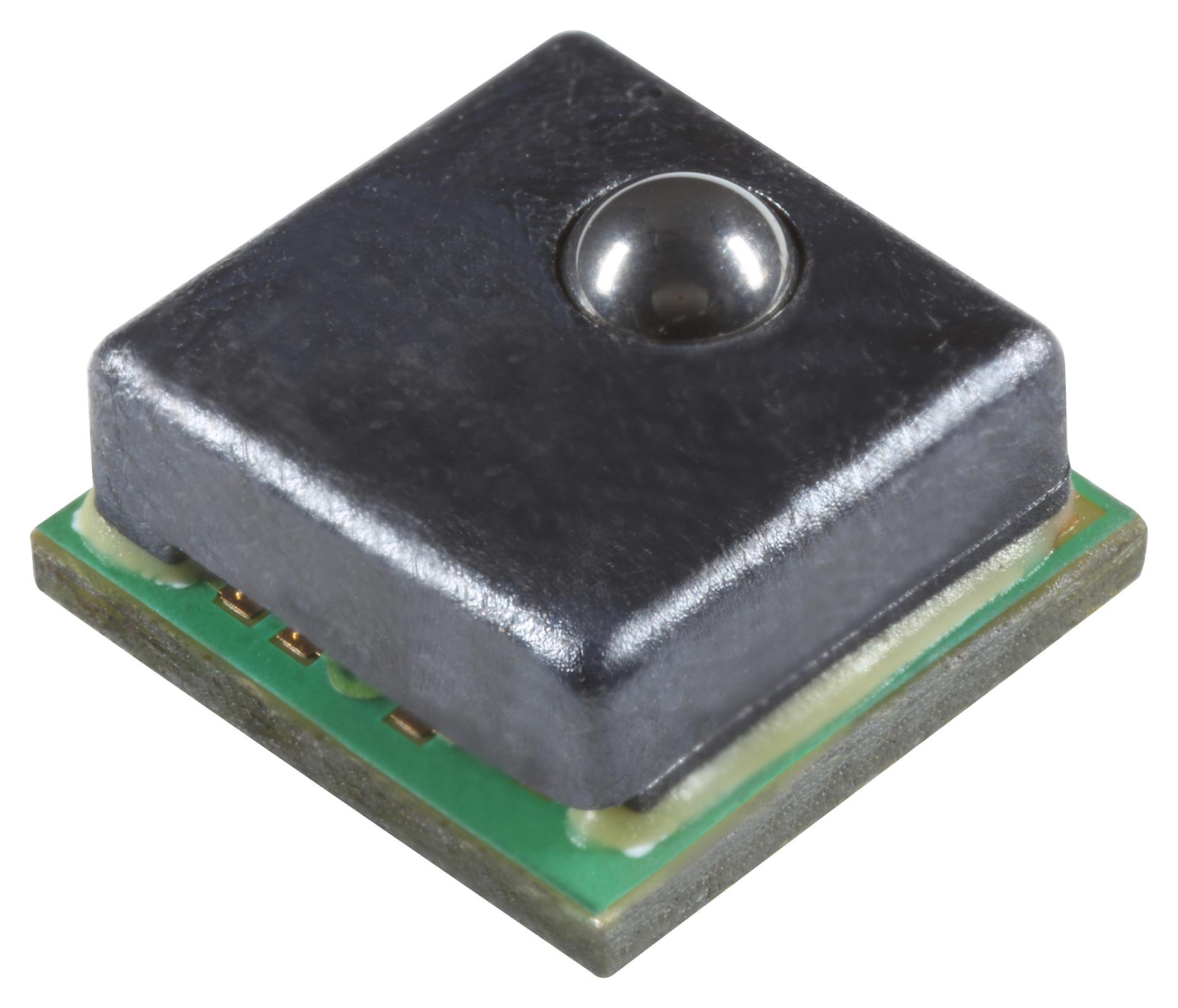

Honeywell FMAMSDXX025WCSC3 Force Sensor
The FMA series are piezoresistive force sensors with a digital SPI output, designed to measure force over a specified range with high accuracy. They feature onboard calibration and temperature compensation for offset, sensitivity, and nonlinearity, ensuring stable and reliable readings. The sensors include a mechanically coupled, sphere contact element with a diagnostic feature for shorts and opens, supporting a force range of 25N. They are compact, measuring 5mm x 5mm, and operate within a temperature range of 5°C to 50°C. These sensors are fully calibrated, with low power consumption of 14mW, and are built for durability, suitable for medical and industrial applications where over-force conditions may occur.
Honeywell FMAMSDXX025WCSC3 Force Sensor Specifications:
- Size: 5 mm x 5 mm
- Force Range: 25N
- Type: Piezoresistive
- Output: SPI digital
- Power Supply: 3.3V or 5.0V DC
- Power Consumption: 14 mW
- Operating Temperature Range: 5°C to 50°C
- Storage Temperature Range: -40°C to 85°C
- Full Scale Error: ±2 %FSS typical
- Total Error Band: ±8 %FSS
- Response Time: 0.42 to 0.84 ms
- Overforce Limit: 3X force range
- Diagnostic Functions: Short/Open detection
- Material: Liquid crystal polymer housing, stainless steel sphere contact element
- Vibration Resistance: MIL-STD-202, Method 214, Condition 1F
- Shock Resistance: MIL-STD-202, Method 213, Condition A
- Life Cycle: 1 million force cycles minimum
Buy the Honeywell 025WCSC3 – Reliable Force Sensors for Industrial Applications
Enhance your projects with Honeywell Series025WCSC3 force sensors, known for compact size, reliable measurements, onboard calibration, and temperature compensation. Powered by low power consumption, these sensors offer high accuracy of ±2%FSS with a total error band of ±8%FSS, suitable for industrial load sensing, medical devices, robotic systems, and force measurement applications. The 25N force range supports overforce protection with a 3X limit, including diagnostic features for shorts and opens, all housed in a robust, space-efficient package perfect for space-constrained environments. Buy online today to ensure dependable, high-performance force measurement for your critical applications.
Order your Honeywell Series025WCSC3 force sensor today and benefit from high accuracy, compact design, and durable performance for demanding industrial and medical projects.
Frequently Asked Questions
Where can I buy Honeywell FMAMSDXX025WCSC3?
You can click on the BUY or RFQ button to purchase FMAMSDXX025WCSC3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FMAMSDXX025WCSC3?
You can download the FMAMSDXX025WCSC3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of FMAMSDXX025WCSC3?
Honeywell
