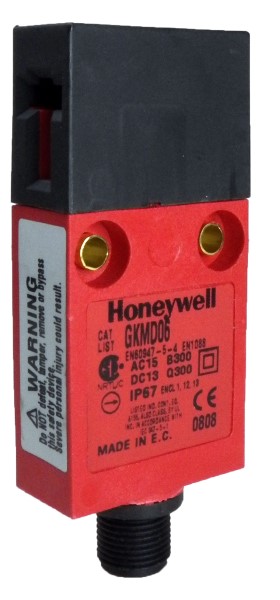

Honeywell GKMD06 Key Actuated Safety Switch
The Honeywell GKM Series key-actuated safety interlocking limit switch provides a miniature and versatile solution for machine guarding. Its compact design (34 mm L x 16 mm W x 70 mm H) makes it ideal for applications with limited space. The switch allows for actuator key insertion from the top or side, and can be mounted from the front or back. It's suitable for safety interlock applications on small doors and apertures, and can be daisy-chained for monitoring multiple gates. The GKM series offers various configurations including cable connections or integral M12 connectors, and is certified for safety functions up to SIL3.
Honeywell GKMD06 Key Actuated Safety Switch Specifications:
- Housing material: Red glass-filled polyester body, black glass-filled polyamide actuator housing
- Actuator key material: Stainless steel
- Electrical connection: Side or bottom exit cable (UL rated 105 °C with PVC jacket and cores four conductor 0.5 mm², 20 AWG)
- Electrical connection (connector): Side or bottom exit integral M12 Micro 4-pin dc-style connector
- Electrical connection (daisy chain): Side and bottom exit (twin connectors) integral M12 Micro 4-pin dc style connectors for daisy chaining
- Contact/switch options: 1NC/1NO slow action BBM, 2NC slow action
- Contact design: Double break, electrically separated (Zb)
- Contact material: Silver alloy (standard), gold-plated (low energy applications)
- Utilization category: AC-15, B300; DC-13, Q300
- Rated operational voltage (Ue): 240 Vac, 250 Vdc
- Rated operational current (Ie): 1.5 A, 0.27 A
- Thermal current (Ith): 5 A, GKME Series 2 A
- Rated insulation (Ui): 500 V
- Rated impulse withstand voltage (Uimp): 2500 V
- Short circuit protection: Class RK5 fuse, rated at 4.5A
- Pollution degree: 3
- Environmental sealing: IP 66/67, GKME Series (twin connectors) IP66 per EN60529; NEMA 1, 12, 13
- Operating temperature: -25 °C to 85 °C (-13 °F to 185 °F)
- Shock: 50 G per IEC 60068-2-27
- Vibration: 10 G per IEC 60068-2-6
- MCTF (Mechanical life): >1,000,000 cycles with single-sided confidence limit of 95%
- MCTF (Electrical life): 32,000 cycles
- SIL Capability: SIL3 capable with HFT=1, SIL2 capable with HFT=0
- Proof test interval: 1 year
- Agency certifications: cULus, UL508 (File E37138), SIRA, Functional Safety Certificate (IEC 61508-2:2010)
- CE certification: CE, DOC 141 (EN60947-1 and EN 60947-5-1)
