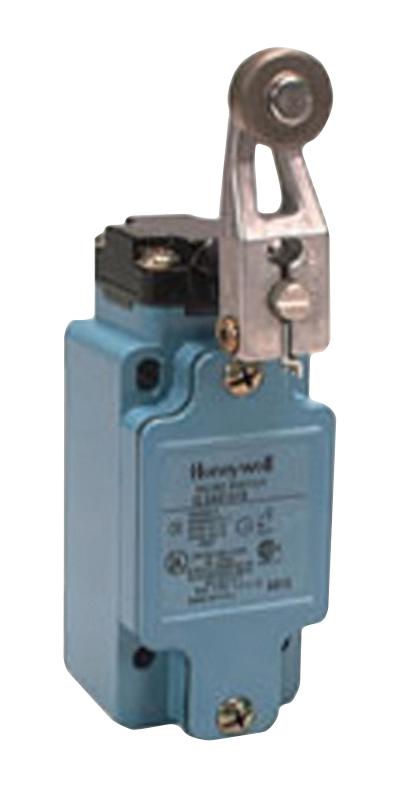

Honeywell GLAB01A1A Global Limit Switch
Honeywell’s MICRO SWITCH GLA Limit Switch Series is engineered to meet global EN50041 standards, making it ideal for a wide range of worldwide applications. Its modular design, allowing for flexible combinations of heads, actuators, bodies, and contact blocks, enables rapid adaptation to customer-specific requirements. The robust die-cast metal housing provides excellent protection for indoor and outdoor use where enclosure sealing is needed. Available with various contact options and actuators, the GLA Series is suitable for applications such as aerial lifts, automotive assembly lines, and material handling systems. Its certifications and sealing capabilities ensure reliable performance in demanding environments.
Honeywell GLAB01A1A Global Limit Switch Specifications:
- Certifications: CE, CCC, CSA, UL
- Conforming to standards: IEC/EN 60947-5-1, EN45545-2
- Housing material: Electrostatic epoxy coated zinc
- Actuators: Side rotary, top pin plunger, top adjustable plunger, top roller plunger, wobble stick
- Termination: 0.5-14 NPT, PG 13,5, M20, G 1/2, Deutsch style connector, Micro-change connector, Mini-change connector
- Contact options: 1NC/1NO, 2NC, 2NO, 2NC/2NO sequential, 2NC/2NO center neutral
- Contact type: Snap action, slow action break-before-make, slow action make-before-break
- Contact material: Silver alloy (standard), gold-plated
- Utilization category: ac15, A300/A600; dc13, Q300
- Rated operational voltage (Ue): 240 Vac, 600 Vac, 250 Vdc
- Rated operational current (Ie): 3 A, 1.2 A, 0.27 A
- Thermal current (Ith): 10 A, 2.5 A
- Rated insulation voltage (Ui): 300 V; 600 V
- Rated impulse withstand voltage (Uimp): 2500 V
- Short circuit protective device: Class J fuse, rated 10A, 600 V
- Pollution degree: 3
- Sealing: IP67; NEMA/UL 1, 4, 12, and 13
- Operating temperature: -40 °C to 85 °C
- Mechanical life: Up to 15 million operations
- Vibration: 10 g conforming to IEC 68-2-6
- Shock: 50 g conforming to IEC 68-2-27
