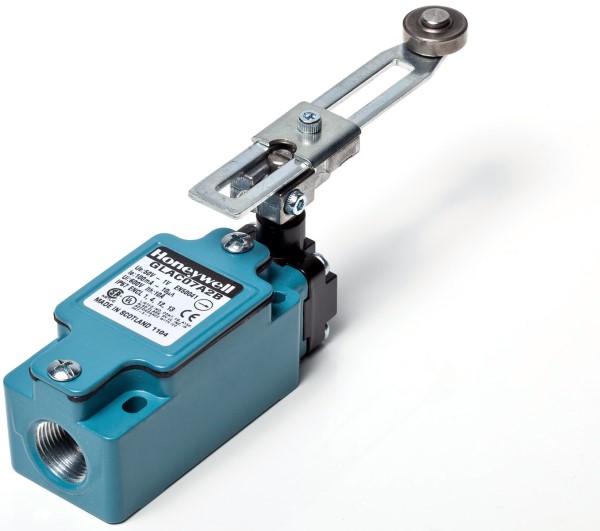

Honeywell GLAC07A2B Global Limit Switch
Honeywell’s MICRO SWITCH GLA Limit Switch Series is engineered to meet global EN50041 standards, making it ideal for a wide range of worldwide applications. Its modular design, allowing for flexible combinations of heads/actuators, bodies, and contact blocks, enables rapid adaptation to customer-specific requirements. The robust die-cast metal housing provides excellent protection for indoor and outdoor use where enclosure sealing is necessary. Available with various contact options and actuators, the GLA Series is suitable for applications such as aerial lifts, automotive assembly lines, and material handling systems. Its certifications and sealing capabilities ensure reliable performance in demanding environments.
Honeywell GLAC07A2B Global Limit Switch Specifications:
- Housing Material: Electrostatic epoxy coated zinc
- Certifications: CE, CCC, CSA, UL
- Conforming to Standards: IEC/EN 60947-5-1, EN45545-2
- Actuators: Side rotary, top pin plunger, top adjustable plunger, top roller plunger, wobble stick
- Termination: 0.5-14 NPT, PG 13,5, M20, G 1/2, Deutsch connector, Micro-change connector
- Contact Options: 1NC/1NO, 2NC, 2NO, 2NC/2NO sequential, 2NC/2NO center neutral
- Contact Type: Snap action, slow action
- Contact Material: Silver alloy (standard), gold-plated
- Utilization Category: ac15, A300/A600; dc13, Q300
- Rated Operational Voltage (Ue): 240 Vac, 600 Vac, 250 Vdc
- Rated Operational Current (Ie): 3 A, 1.2 A, 0.27 A
- Mechanical Life: Up to 15 million operations
- Vibration: 10 g conforming to IEC 68-2-6
- Shock: 50 g conforming to IEC 68-2-27
- Operating Temperature: -40 °C to 85 °C
- Sealing: IP67; NEMA/UL 1, 4, 12, and 13
