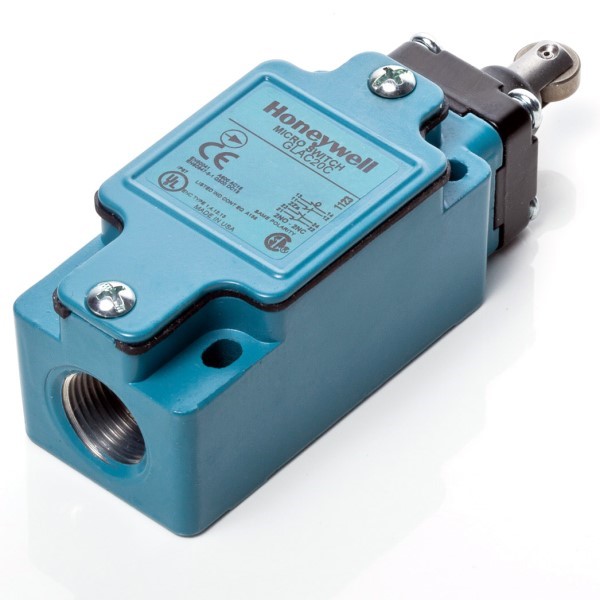

Honeywell GLAC20C Global Limit Switch
Honeywell’s MICRO SWITCH GLA Limit Switch Series is engineered for global EN50041 standards, making it suitable for a wide range of worldwide applications. Its modular design, incorporating heads, actuators, bodies, and contact blocks, allows for quick adaptation to customer needs. The robust die-cast metal housing provides protection for indoor and outdoor environments requiring enclosure sealing. With features like snap-action contacts, multiple connectivity options, and LED indicators, the GLA Series delivers reliable performance in various industrial settings, including aerial lifts, automotive assembly lines, and material handling systems.
Honeywell GLAC20C Global Limit Switch Specifications:
- Certifications: CE, CCC, CSA, UL
- Conforming to standards: IEC/EN 60947-5-1, EN45545-2
- Housing material: Electrostatic epoxy coated zinc
- Actuators: Side rotary, top pin plunger, top adjustable plunger, top roller plunger, wobble stick
- Termination: 0.5-14 NPT, PG 13,5, M20, G 1/2, Deutsch style connector, Micro-change connector, Mini-change connector
- Contact options: 1NC/1NO, 2NC, 2NO, 2NC/2NO sequential, 2NC/2NO center neutral
- Contact type: Snap action, slow action break-before-make, slow action make-before-break
- Contact material: Silver alloy (standard), gold-plated
- Utilization category: ac15, A300/A600; dc13, Q300
- Rated operational voltage (Ue): 240 Vac, 600 Vac, 250 Vdc
- Rated operational current (Ie): 3 A, 1.2 A, 0.27 A
- Thermal current (Ith): 10 A, 2.5 A
- Rated insulation voltage (Ui): 300 V; 600 V
- Rated impulse withstand voltage (Uimp): 2500 V
- Short circuit protective device: Class J fuse, rated 10A, 600 V
- Pollution degree: 3
- Sealing: IP67; NEMA/UL 1, 4, 12, and 13
- Operating temperature: -40 °C to 85 °C
- Mechanical life: Up to 15 million operations
- Vibration: 10 g conforming to IEC 68-2-6
- Shock: 50 g conforming to IEC 68-2-27
