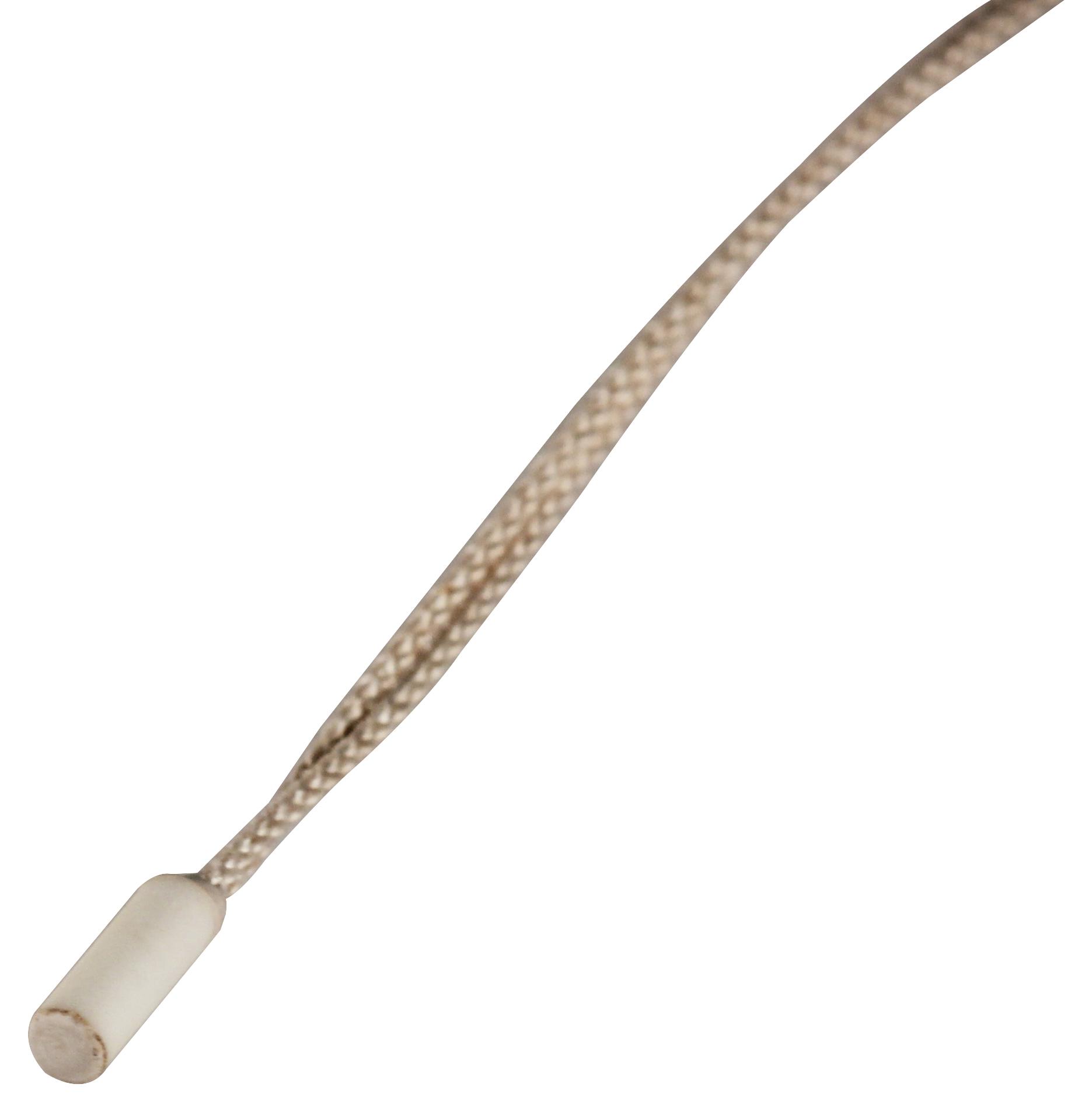

Honeywell HEL707U01200 Platinum RTD
The HEL-700 series Thin Film Platinum Resistance Temperature Detectors are engineered for high-precision temperature measurement in demanding industrial environments. Constructed with platinum film on alumina substrates, these fully assembled sensors provide excellent linearity, stability, and accuracy from -75 °C to 540 °C. Available with optional ±0.1% resistance trim, they feature rapid response times and robust ceramic cases with TFE PTFE or fiberglass lead wires. Suitable for HVAC, process control, aerospace, medical, and industrial automation, ensuring reliable performance across diverse applications.
Honeywell HEL707U01200 Platinum RTD Specifications:
- Temperature Range: -75 °C to 540 °C
- Accuracy: ±0.2% resistance (standard), ±0.1% optional
- Resistance at 0°C: 100 Ω
- Linearity: -40 °C to 125 °C, -75 °C to 540 °C
- Response Time: <1.0 s for 0.086 in OD
- Operating Current: 2 mA max recommended
- Self Heating: <15 mW/C typ. for 0.086 in O.D.
- Insulation Resistance: >50 MQ
- Construction: Alumina ceramic case with TFE Teflon® or fiberglass lead wires
- Resistance Trim Tolerance: +0.2% or +0.1%
- Lead Wire Lengths: 12 inches standard, configurable
- Standards: NIST calibration available
- Wire Gauge: 28 gauge for standard configurations
Buy the Honeywell HEL-700 U–2013 Reliable Temperature Sensors for Industrial Applications
Discover the Honeywell HEL-700 series Platinum RTDs, offering high precision and durability for temperature sensing in industrial, HVAC, aerospace, and medical systems. These sensors are fully assembled with alumina substrates, laser-trimmed for interchangeability, and equipped with TFE PTFE or fiberglass lead wires. Designed for wide temperature ranges from -75 °C to 540 °C, they deliver rapid response and reliable stability in critical environments. Perfect for instrumentation, process control, motor winding, and environmental chambers, order online today for quality and precision.
Order your Honeywell HEL-700 series RTD today and ensure accurate, fast-response temperature measurement for your industrial, aerospace, or medical projects.
Frequently Asked Questions
Where can I buy Honeywell HEL707U01200?
You can click on the BUY or RFQ button to purchase HEL707U01200 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HEL707U01200?
You can download the HEL707U01200 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HEL707U01200?
Honeywell
