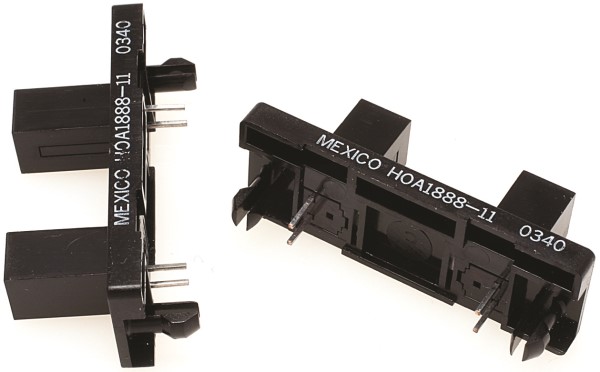

Honeywell HOA1888011 Infrared Transmissive Sensor
The Honeywell HOA1888 Series consists of an infrared emitting diode facing a silicon phototransistor encased in a black thermoplastic housing. This design provides excellent protection against visible ambient light and airborne contaminants, making it suitable for applications requiring reliable object detection in challenging environments. The housing is made of polycarbonate and is soluble in chlorinated hydrocarbons and ketones. Cleaning is recommended with methanol or isopropanol. The HOA1888-011 model features a phototransistor output, offering a sensitive and responsive detection solution.
Honeywell HOA1888011 Infrared Transmissive Sensor Specifications:
- Operating Temperature Range: °C -40 to 85
- Storage Temperature Range: °C -40 to 85
- Soldering Temperature: °C 240
- Power Dissipation (Emitter): mW 100
- Reverse Voltage (Emitter): V 3
- Continuous Forward Current (Emitter): mA 50
- Collector-Emitter Breakdown Voltage (Transistor): V 30
- Emitter Collector Voltage: V 5
- Power Dissipation (Detector): mW 100
- Collector DC Current: mA 30
- Forward Voltage (Emitter): V 1.6
- Reverse Leakage Current (Emitter): µA 10
- Collector Dark Current (HOA1888-011): nA 100
- Collector Dark Current (HOA1888-013): nA 250
- On-State Collector Current (HOA1888-011): mA 0.5
- On-State Collector Current (HOA1888-013): mA 2.0
- Collector-Emitter Saturation Voltage (HOA1888-011): V 0.4
- Collector-Emitter Saturation Voltage (HOA1888-013): V 1.1
- Rise And Fall Time (HOA1888-011): µs 15
- Rise And Fall Time (HOA1888-013): µs 75
- Housing Material: Polycarbonate
