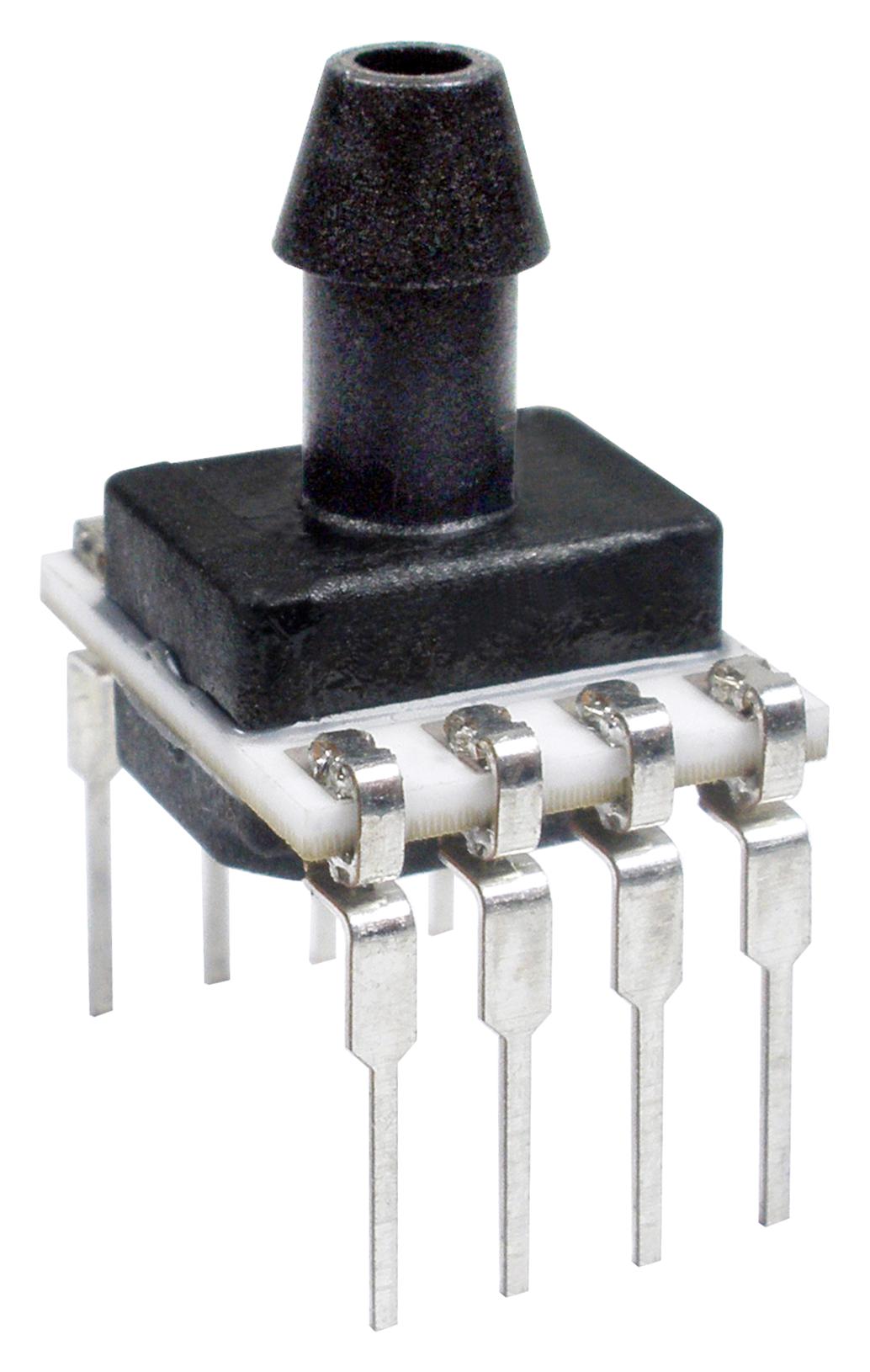

Honeywell HSCDANV001BAAA5 Digital Pressure Sensor
The Honeywell HSCDANV001BAAA5 is a highly accurate, compensated digital pressure sensor designed for industrial and medical applications. It features a miniature size of 10 mm x 10 mm, offers ratiometric analog and digital (SPI or I2C) outputs, and supports a wide pressure range from +1.6 mbar to +10 bar. The sensor is capable of operating over temperatures from -20°C to 85°C, with exceptional stability, high overpressure and burst pressures, and optional internal diagnostics. Its low power consumption and modular design make it suitable for compact, reliable systems in demanding environments.
Honeywell HSCDANV001BAAA5 Digital Pressure Sensor Specifications:
- Package Size: 10 mm x 10 mm (miniature)
- Pressure Range: +1.6 mbar to +10 bar, +160 Pa to +1 MPa, +0.5 inH,O to 150 psi
- Pressure Types Supported: Absolute, differential, gage
- Output: Ratiometric analog, 14-bit digital (SPI and I2C compatible)
- Supply Voltage: 3.3 Vdc or 5.0 Vdc
- Operating Temperature Range: -20°C to 85°C
- Compensated Temperature Range: 0°C to 50°C
- Accuracy: Less than 0.25% FSS BFSL
- Response Time: 0.46 ms
- Response: Power-up to data ready in 3 ms
- Vibration: MIL-STD-202G, Method 204D, Condition B (15 g, 10 Hz to 2 Hz)
- Shock: MIL-STD-202G, Method 213B, Condition C (100 g, 6 ms)
- Moisture Sensitivity Level: 1 (J-STD-020D.1)
- Wetted Materials include alumina ceramic, high-temperature polyamide, epoxy, silicone, ceramics, glass, solder, and gold
- Long Life: Minimum of 1 million pressure cycles
- Designed for non-corrosive gases and liquids above 40 mbar
Buy the Honeywell HSCDANV001BAAA5 – Reliable Digital Pressure Sensor for Industrial Applications
Get the Honeywell HSCDANV001BAAA5 digital pressure sensor, offering industry-leading accuracy, compact size, and versatile output options. Designed for demanding industrial and medical applications, it provides reliable performance over a wide pressure range of +1.6 mbar to +10 bar. Its low power consumption, quick response time, and optional diagnostics facilitate efficient integration into your systems. Ideal for applications requiring high stability and precision, this sensor ensures long-term operation in challenging environments. Order online today for fast delivery and trusted quality.
Order your Honeywell HSCDANV001BAAA5 digital pressure sensor today and enhance the reliability and accuracy of your industrial and medical systems.
Frequently Asked Questions
Where can I buy Honeywell HSCDANV001BAAA5?
You can click on the BUY or RFQ button to purchase HSCDANV001BAAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDANV001BAAA5?
You can download the HSCDANV001BAAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDANV001BAAA5?
Honeywell
