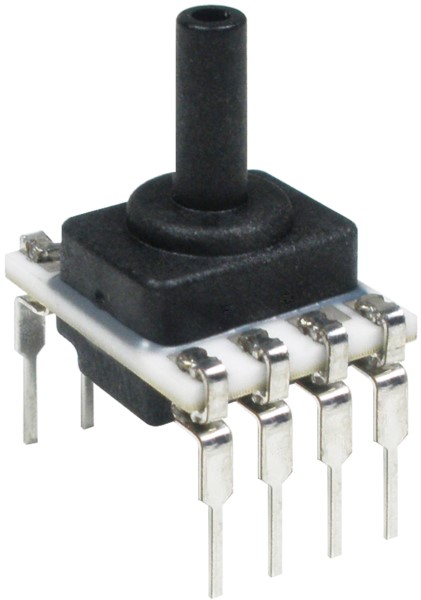

Honeywell HSCDLNN015PGSA3 TruStability Pressure Sensor
The Honeywell TruStability HSC Series pressure sensors are designed for high accuracy and stability in a compact board mount package. These sensors utilize piezoresistive silicon technology and incorporate an Application Specific Integrated Circuit (ASIC) for calibration and temperature compensation. They are suitable for measuring absolute, gage, or differential pressures in non-corrosive gas and liquid applications, and are widely used in industrial automation, medical devices, and HVAC systems. The sensors' modular design and flexible options simplify integration and reduce system design requirements.
Honeywell HSCDLNN015PGSA3 TruStability Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 RequirementS
- Stability: Minimizes system calibration needs, improves system performance
- Burst Pressure: Promotes system reliability
- Working Pressure Ranges: Supports many unique applications
- Features: Proprietary Honeywell technology, industry-leading long-term stability, industry-leading accuracy, high burst pressures, high working pressure ranges, modular design, wide variety of pressure ranges, optional internal diagnostic functions, energy efficient
Buy the HSCDLNN015PGSA3 HONEYWELL TruStability Pressure Sensor | myMectronic
Purchase the Honeywell HSCDLNN015PGSA3 pressure sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDLNN015PGSA3?
You can click on the BUY or RFQ button to purchase HSCDLNN015PGSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDLNN015PGSA3?
You can download the HSCDLNN015PGSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDLNN015PGSA3?
Honeywell
