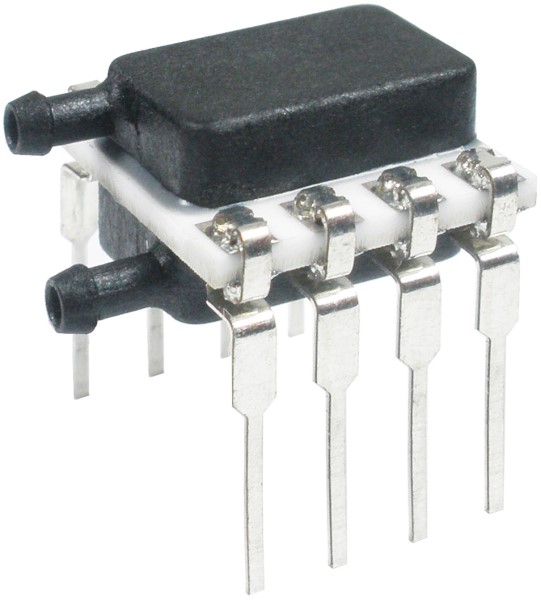

Honeywell HSCDRRN002NDAA3 TruStability Silicon Pressure Sensor
The Honeywell TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor designed for precision pressure measurement in various industrial and medical applications. Featuring a ratiometric analog output, the sensor provides a proportional signal over the specified pressure and temperature range. It is fully calibrated and temperature compensated using an on-board ASIC, ensuring accuracy and stability. The HSC Series is suitable for absolute, differential, and gage pressure measurements and is intended for use with non-corrosive gases and liquids. Its miniature size, low power consumption, and modular design make it a versatile solution for diverse applications.
Honeywell HSCDRRN002NDAA3 TruStability Silicon Pressure Sensor Specifications:
- Supplyvoltage: 6.0 Vdc
- Voltageonanypin: Vsupply+0.3 V
- ESDsusceptibility: 3 kV
- Storagetemperature: 85 C
- Solderingtimeandtemperature: 4 s max. at 250 C
- Operatingvoltage3.3Vdc: 3.3 Vdc
- Operatingvoltage5.0Vdc: 5.0 Vdc
- Supplycurrent3.3Vdc: 1.6 mA
- Supplycurrent5.0Vdc: 2 mA
- Compensatedtemperaturerange: 0 to 50 C
- Operatingtemperaturerange: -20 to 85 C
- StartupTime: 5 ms
- ResponseTime: 1 ms
- Upperoutputclippinglimit: 97.5 %Vsupply
- Loweroutputclippinglimit: 2.5 %Vsupply
- Accuracy: 0.25 %FSSBFSL
- Totalerrorband: 1 %FSS
- Outputresolution: 0.03 %FSS
- Humidity: 0% to 95% RH, non-condensing
- Vibration: MIL-STD-202F,Curve AK
- Shock: MIL-STD-202F,Method 213B
- Life: 1 million cycles minimum
- Solderreflow: J-STD-020-C
- WettedMaterialsCovers: high temperature polyamide
- WettedMaterialsSubstrate: alumina ceramic
- WettedMaterialsAdhesives: epoxy,silicone
- WettedMaterialsElectroniccomponents: ceramic, glass,solder,silicon
