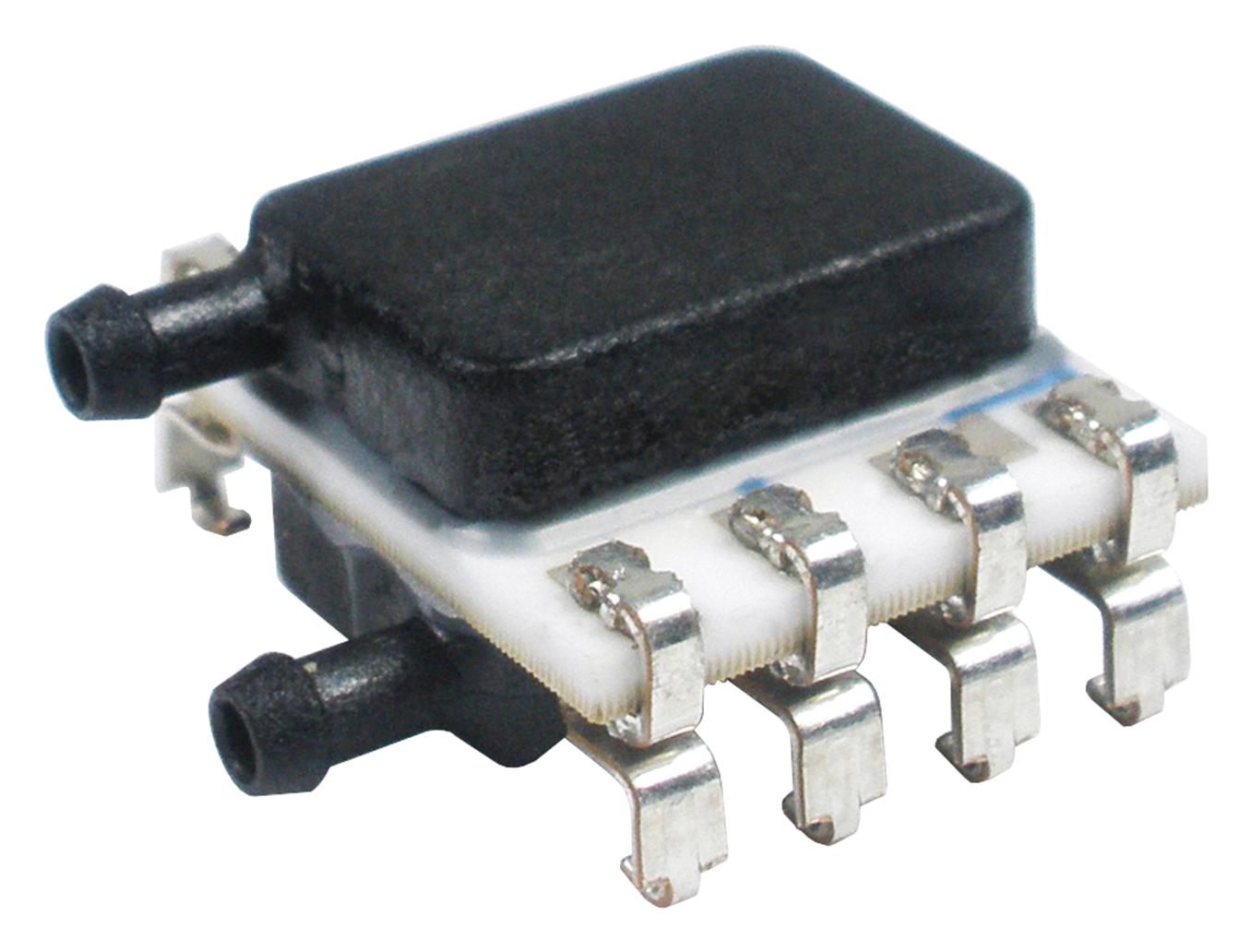

Honeywell HSCMRRD006MG2A3 Pressure Sensor
The Honeywell HSC Series TruStability® Board Mount Pressure Sensor offers high accuracy and stability for industrial applications. It features a compact package measuring just 10 mm x 10 mm with both analog and digital outputs, including SPI compatibility. Suitable for measuring absolute, gage, or differential pressure from +1.6 mbar to +10 bar, it is ideal for medical, industrial, and HVAC systems. The sensor is environmentally robust, low power, and supports liquid media options for added versatility.
Honeywell HSCMRRD006MG2A3 Pressure Sensor Specifications:
- Package Sizes: DIP, SMT, SIP
- Pressure Range: +1.6 mbar to +10 bar | +160 Pa to +1 MPa | +0.5 inH,O to +150 psi
- Output: Ratiometric analog, 14-bit digital (12-bit sensor resolution), SPI compatible
- Supply Voltage: 3.3 Vdc or 5.0 Vdc
- Accuracy: <0.25 %FSS BFSL
- Compensated Temperature Range: 0°C to 50°C
- Operating Temperature Range: -20°C to 85°C
- Response Time: Approx. 1 ms (analog), 0.46 ms (digital)
- Size: 10 mm x 10 mm, miniature package
- Environmental: Moisture Sensitivity Level 1, RoHS Compliant
- Durability: Life of at least 1 million pressure cycles, shock and vibration tested
- Materials: Alumina ceramic, high-temperature polyamide, epoxy, silicone, ceramic, silicon, glass, solder
- Pressure Types: Absolute, Gage, Differential
- Additional Features: Internal diagnostics, low power consumption (<10 mW), optional liquid media compatibility
Buy the Honeywell HSCMRRD006MG2A3 – Reliable Pressure Sensors for Industrial Applications
Purchase Honeywell pressure sensors online today and experience industry-leading accuracy, compact design, and versatile pressure range coverage. Ideal for medical, industrial, and HVAC applications, these sensors reduce calibration needs and ensure long-term stability. Their low power consumption and optional liquid media compatibility make them suitable for a broad range of environments. Get dependable, high-performance pressure sensing solutions with quick delivery and seamless online ordering—boost your system performance today.
Get Honeywell HSCMRRD006MG2A3 today—compact, highly accurate pressure sensors designed for demanding industrial, medical, and HVAC systems.
Frequently Asked Questions
Where can I buy Honeywell HSCMRRD006MG2A3?
You can click on the BUY or RFQ button to purchase HSCMRRD006MG2A3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCMRRD006MG2A3?
You can download the HSCMRRD006MG2A3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCMRRD006MG2A3?
Honeywell
