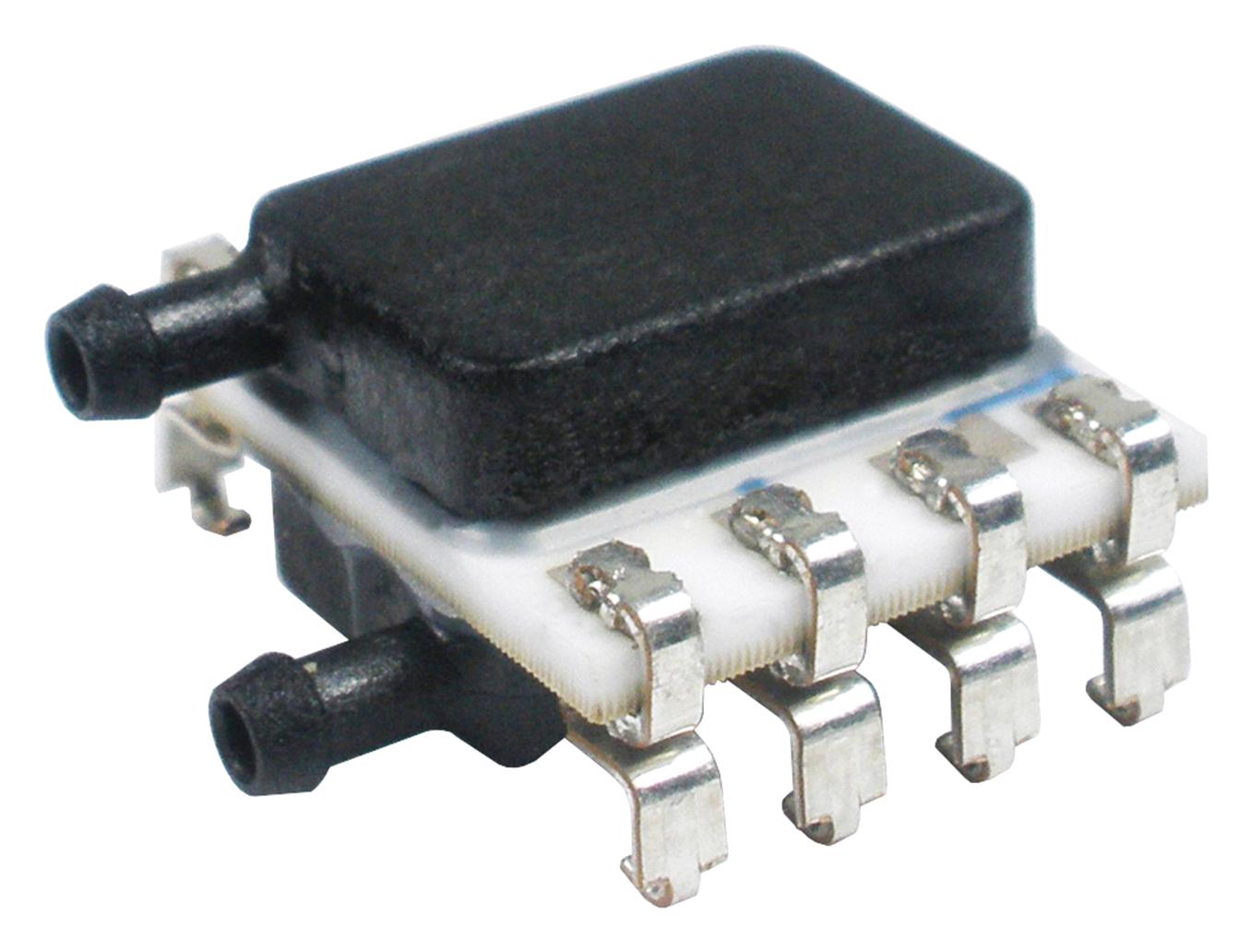

Honeywell HSCMRRV001PG2A3 Pressure Sensor
The Honeywell HSC Series TruStability Board Mount Pressure Sensors offer high accuracy and stability for various pressure measurements ranging from +1.6 mbar to +10 bar. Features include digital or analog outputs, industry-leading accuracy of ±0.25 %FSS BFSL, and compatibility with dry gases and non-ionic liquids at ranges above 40 mbar. The compact 10 mm x 10 mm package simplifies integration into medical, industrial, and scientific applications, providing excellent long-term stability, multiple pressure configurations, and optional internal diagnostics for enhanced system reliability.
Honeywell HSCMRRV001PG2A3 Pressure Sensor Specifications:
- Pressure Range: +1.6 mbar to +10 bar, +160 Pa to +1 MPa, +0.5 inH,O to +150 psi
- Output: Ratiometric analog or digital (SPI, PC interface)
- Accuracy: ±0.25 %FSS BFSL
- Supply Voltage: 3.3 Vdc or 5.0 Vdc
- Response Time: <1 ms (analog), <0.5 ms (digital)
- Size: 10 mm x 10 mm x 10 mm (0.39 in x 0.39 in)
- Operating Temp: -20 °C to 85 °C (-4 °F to 185 °F)
- Compensated Temp: 0 °C to 50 °C (32 °F to 122 °F)
- Vibrations: MIL-STD-202G, Method 204D, Condition B
- Shock: MIL-STD-202G, Method 213B, Condition C
- Lifecycle: >1 million pressure cycles
- Materials: Ceramic, silicon, glass, solder, epoxy, silicone
- Power Consumption: Less than 10 mW
- Solder Reflow Compatibility: Level 1 Moisture Sensitivity
- Liquid Media Support: Yes (above 40 mbar) with corrosion-resistant wetted materials
- Pressure Type: Absolute, Differential, Gage
Buy the Honeywell Series HSC Pressure Sensors: HDRRV001PG2A3
Upgrade your systems with the Honeywell HSC pressure sensor featuring high accuracy, digital and analog outputs, and compact design. Suitable for medical, industrial, and scientific applications, these sensors deliver reliable performance over a wide pressure range from +1.6 mbar to +10 bar. Their industry-leading precision of ±0.25 %FSS, low power consumption, and optional diagnostic functions ensure optimal system stability and performance. Designed for easy integration, they support various pressure types, making them ideal for demanding environments that require precise pressure measurement and long-term reliability.
Buy Honeywell HSC series pressure sensor now and experience industry-leading accuracy, compact size, and unmatched stability for your critical applications.
Frequently Asked Questions
Where can I buy Honeywell HSCMRRV001PG2A3?
You can click on the BUY or RFQ button to purchase HSCMRRV001PG2A3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCMRRV001PG2A3?
You can download the HSCMRRV001PG2A3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCMRRV001PG2A3?
Honeywell
