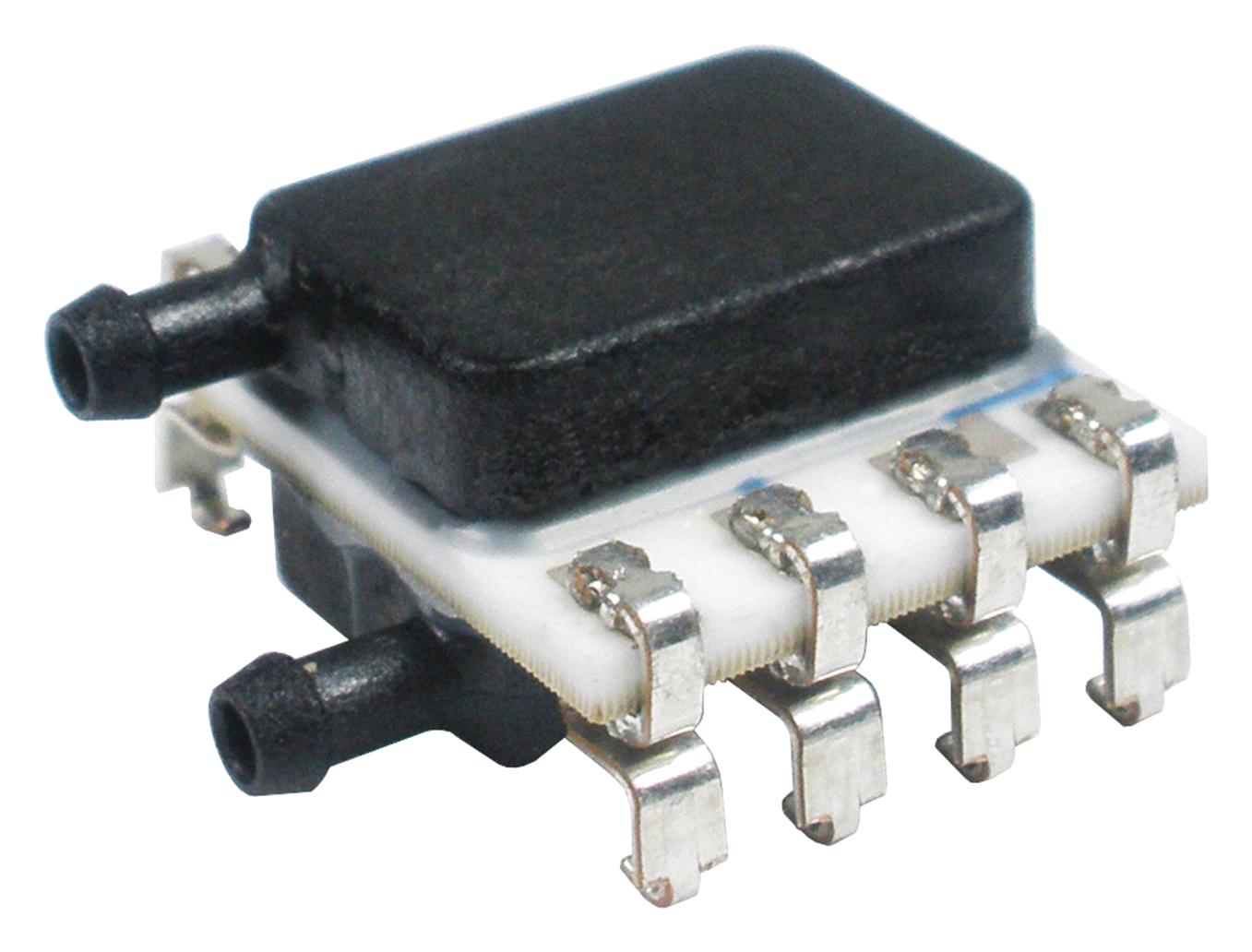

Honeywell HSCMRRV001PGAA5 Pressure Sensor
The Honeywell HSC Series TruStability® Board Mount Pressure Sensors deliver high accuracy and stability for industrial, medical, and environmental applications. Offering ranges from +1.6 mbar to +10 bar, they feature industry-leading accuracy of ±0.25 %FSS BFSL with both analog and digital (SPI, I2C) outputs for flexible integration. Compact size, low power consumption, and robust design with options for liquid media compatibility make these sensors ideal for demanding environments such as medical devices, HVAC systems, and process control. Full calibration and temperature compensation ensure reliable performance over the specified temperature range.
Honeywell HSCMRRV001PGAA5 Pressure Sensor Specifications:
- Measurement ranges: +1.6 mbar to +10 bar, +160 Pa to +1 MPa, +0.5 inH2O to 150 psi
- Output: Ratiometric analog, 14-bit digital (SPI, I2C)
- Supply Voltages: 3.3 Vdc, 5.0 Vdc
- Accuracy: ±0.25 %FSS BFSL
- Temperature compensated range: 0°C to 50°C [32°F to 122°F]
- Operating temperature: -20°C to 85°C [-4°F to 185°F]
- Overpressure: Up to 2x full scale for most ranges, up to 10 bar for specific models
- Burst pressure: Rated per model, typically above maximum operating pressure
- Power consumption: <10 mW typical
- Materials: Alumina ceramic, high-temp polyamide, epoxy, silicone, ceramic components
- Protection: IP-rated, robust packaging, optional liquid media compatibility above 40 mbar
- Lifecycle: Tested for over 1 million pressure cycles
- Calibration: Fully calibrated and temperature compensated
- Mounting: DIP, SMT, SIP packages with various port configurations
- Certifications: Industry standard for medical and industrial applications
Buy the Honeywell HSCMRRV001PGAA5 – Reliable Pressure Sensor for Industrial Applications
Enhance your system performance with Honeywell’s high-accuracy pressure sensors. Compact, reliable, and versatile, these sensors are ideal for medical, industrial, and environmental applications. Offering both analog and digital outputs with industry-leading accuracy of ±0.25 %FSS, they provide precise pressure measurements across a broad range from +1.6 mbar to +10 bar. Their robust construction, low power consumption, and calibration ensure long-term stability and easy integration. Purchase online today for dependable performance in critical applications.
Buy Honeywell HSCMRRV001PGAA5 now and experience unmatched accuracy, stability, and flexible integration in demanding environments.
Frequently Asked Questions
Where can I buy Honeywell HSCMRRV001PGAA5?
You can click on the BUY or RFQ button to purchase HSCMRRV001PGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCMRRV001PGAA5?
You can download the HSCMRRV001PGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCMRRV001PGAA5?
Honeywell
