Honeywell HSCSANN015PA2A3 High Accuracy Pressure Sensor
The Honeywell TruStability Board Mount Pressure Sensor offers high accuracy measurement for a wide pressure range from +1.6 mbar to +10 bar. Featuring digital or analog outputs, it is fully calibrated and temperature compensated to ensure reliable performance in industrial, medical, and HVAC applications. Its miniature size and low power consumption facilitate integration into compact systems, while optional diagnostics enhance system reliability. Suitable for dry gases and non-corrosive liquids above 40 mbar, it operates within a temperature range of 0 to 50°C, maintaining stability through long-term use with minimal calibration efforts.
Honeywell HSCSANN015PA2A3 High Accuracy Pressure Sensor Specifications:
- Pressure Range: +1.6 mbar to +10 bar, +160 Pa to +1 MPa, +0.5 inH,O to +150 psi
- Output: Digital (SPI, 14-bit min) and Ratiometric Analog
- Supply Voltage: 3.3 Vdc or 5.0 Vdc
- Accuracy: <0.25 %FSS BFSL
- Compensated Temperature Range: 0°C to 50°C
- Operating Temperature Range: -20°C to 85°C
- Response Time: 1 ms (analog), 0.46 ms (digital)
- Size: 10 mm x 10 mm (approximate)
- Materials: Alumina ceramic, high-temp polyamide, silicon, glass
- Solder Reflow Compatibility: J-STD-020D.1 Level 1
- Protection: IP-rated for liquid and gas environments, optional liquid media compatibility above 40 mbar
- Long-term Stability: >1 million pressure cycles, minimal drift
- Environmental Resistance: Vibration MIL-STD-202G, Humidity 0-95% RH
- Auto-Zero Auto-Zero® feature with 1000 hr stability at 25°C

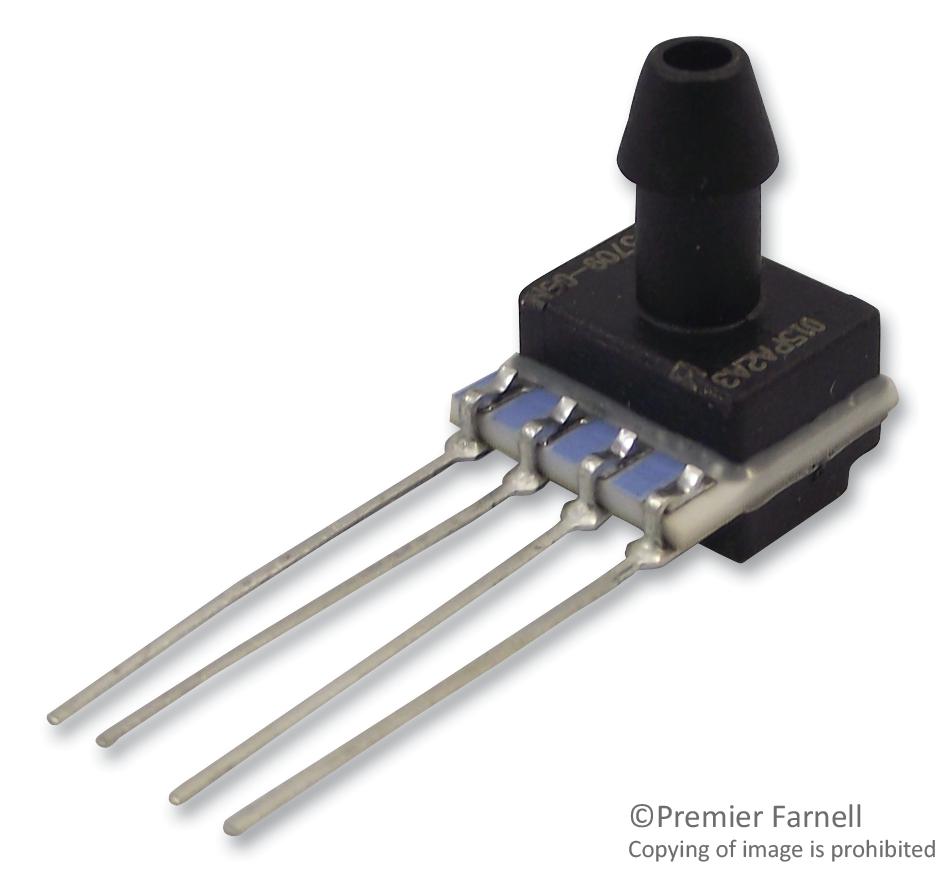

Buy the Buy Honeywell Pressure Sensors Part Number HSCSANN015PA2A3 Online
Discover the Honeywell High Accuracy Pressure Sensor, designed for industrial, medical, and HVAC systems. Compact and energy-efficient, it delivers precise measurements across a broad pressure range with both digital and analog outputs. Fully calibrated and temperature compensated, it features optional diagnostics to enhance system reliability. Its small footprint makes integration into space-constrained environments effortless. Ideal for non-corrosive gases and liquids above 40 mbar, it ensures long-term stability and consistent performance, reducing calibration needs and supporting critical system operations.
Buy Honeywell HSCSANN015PA2A3 now and experience industry-leading accuracy, compact size, and reliable long-term performance for your critical applications.
Frequently Asked Questions
Where can I buy Honeywell HSCSANN015PA2A3?
You can click on the BUY or RFQ button to purchase HSCSANN015PA2A3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCSANN015PA2A3?
You can download the HSCSANN015PA2A3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCSANN015PA2A3?
Honeywell
