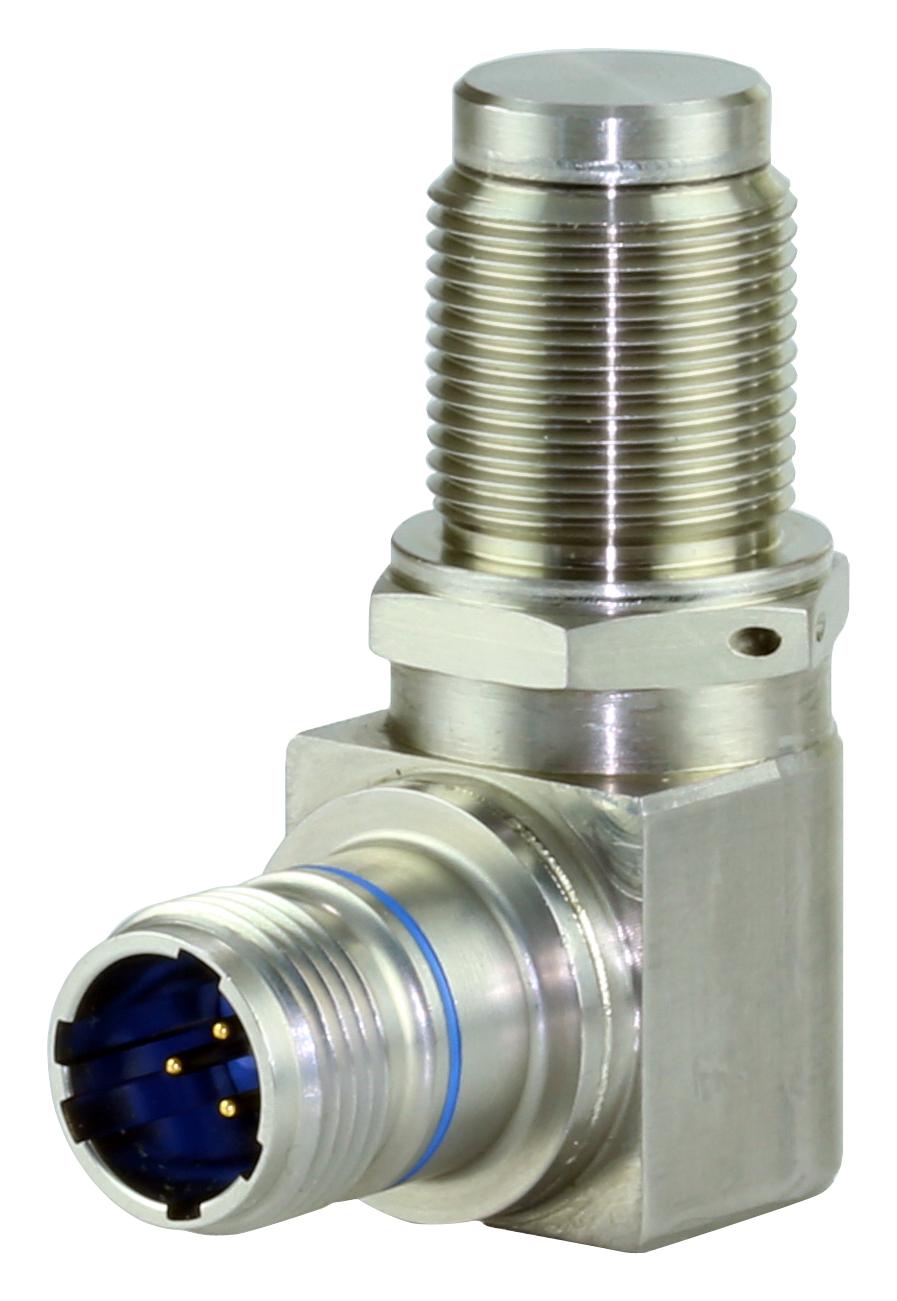

Honeywell LGRTD3CB01000 Aerospace proximity sensor
The Honeywell GAPS series are rugged, non-contact aerospace proximity sensors designed for less harsh aircraft environments. These hermetically sealed sensors incorporate advanced FAVCO technology for health monitoring, providing reliable on/off switching with optional fault detection. Built with Inconel and stainless steel, they withstand extreme vibration (20G) and environmental conditions, offer high MTBF of 500,000 flight hours, and feature various connector options like D38999 and EN2997. Ideal for applications such as landing gear and flight controls, these sensors ensure long-term durability and operational safety.
Honeywell LGRTD3CB01000 Aerospace proximity sensor Specifications:
- Operating Temperature: -55°C to 115°C
- Vibration Resistance: 20 G
- Shock Resistance: 40 G
- Housing Material: Inconel, Stainless Steel
- Sensing Distance: 3.5 mm max.
- Body Dimensions: 13.5 mm diameter, up to 55 mm length
- MTBF: 500,000 flight hours
- Connector Types: D38999/25YA98PN, EN2997Y10803MN
- Supply Voltage: 12 Vdc to 32 Vdc
- Supply Current: <10 mA
- Dielectric Strength: 1000 Vdc/750 Vac
- Insulation Resistance: 200 MΩ at 50 Vdc
- Environmental Ruggedness: Hermetic sealing, EMI ruggedness
- Health Monitoring Output: Optional third fault/status output
- Target Material: SS 17-4PH
- Target Dimensions: 25 mm x 18 mm x 3 mm
Buy the Buy Honeywell GAPS Part Number LGRTD3CB01000 Online
Purchase Honeywell GAPS proximity sensors online today and benefit from advanced FAVCO health monitoring, rugged hermetic sealing, and exceptional reliability in aerospace applications. These sensors are designed to withstand extreme vibration, harsh environments, and offer long MTBF, reducing maintenance costs and increasing flight hours. Ideal for critical aircraft systems such as landing gear, thrust reversers, and flight controls, they ensure precise detection with durable Inconel and stainless steel construction. Enjoy fast delivery and technical support when ordering your aerospace proximity sensor online.
Get Honeywell GAPS LGRTD3CB01000 today—built for precision, long-lasting durability, and reliable aerospace performance.
