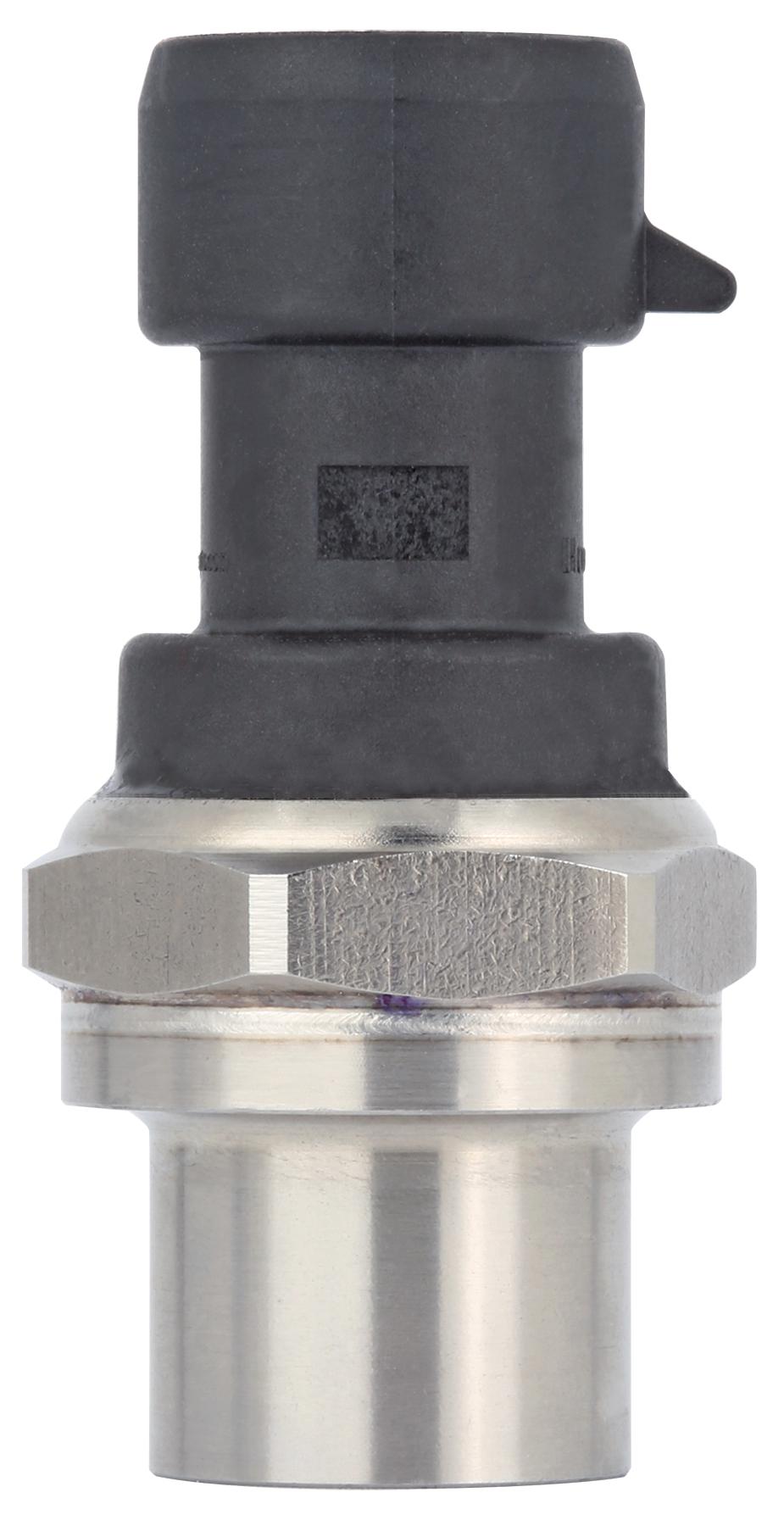

Honeywell MIPAF1XX667PSAAX Heavy Duty Media Isolated Pressure Transducer
The MIP Series is a heavy-duty, media-isolated pressure transducer with stainless steel construction, designed for harsh environments including aggressive fluids and water. It offers industry-leading accuracy of 0.15% FSS, a total error band up to 0.75% FSS from -40°C to 125°C, and long-term stability of +0.25% FSS. Its hermetically welded design supports various media, with robust features like EMC immunity, and high burst pressure of 207 bar (3000 psi). Suitable for applications in industrial, medical, and process industries, it delivers reliable performance and compatibility with diverse media types.
Honeywell MIPAF1XX667PSAAX Heavy Duty Media Isolated Pressure Transducer Specifications:
- Operation Temperature: -40°C to 125°C
- Accuracy: 0.15% FSS BFSL
- Total Error Band: Up to 0.75% FSS (-40°C to 125°C)
- Long Term Stability: +0.25% FSS over 1000 hours
- Burst Pressure: 207 bar (3000 psi)
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc
- Supply Voltage: 5.0 to 10.25 Vdc
- Electrical Protection: Overvoltage +40 Vdc, short circuit protection
- Environmental Resistance: IP67, EMC immunity, freeze-thaw resistance >6 cycles
- Media Compatibility: Designed to handle aggressive fluids, hermetically sealed, wetted materials stainless steel 304L/316L
- Response Time: 1 ms (10% to 90% step change), operating temperature range from -40°C to 125°C
- Mechanical: Mounting types compatible with standard fittings including G1/4, NPT, and Flare female connections
- Electrical: Mating connectors in PBT 30% GF, with Buna-N or nitrile seals available
- Certifications: NSF/ANSI/CAN 61, CE, RoHS, REACH
- Shock and Vibration: Shock 100G, Vibration 20G sweep, IP67 ingress protection
Buy the Honeywell MIP Series – Reliable Pressure Transducer for Industrial Applications
Enhance your industrial systems with Honeywell's MIP Series pressure transducer, offering rugged stainless steel construction, precision accuracy of 0.15% FSS, and exceptional durability for water, aggressive fluids, and harsh environments. Designed for demanding applications, this media-isolated sensor features hermetically welded design, EMC immunity, and a wide operating temperature range. Whether for water management, industrial processing, or medical systems, this transducer ensures dependable performance, long-term stability, and certifications like NSF/ANSI/CAN 61. Order online now to ensure your project’s measurement needs are met with confidence and reliability.
Order your Honeywell Series MIP Pressure Transducer today and ensure your projects benefit from durable, high-accuracy measurement in tough environments.
Frequently Asked Questions
Where can I buy Honeywell MIPAF1XX667PSAAX?
You can click on the BUY or RFQ button to purchase MIPAF1XX667PSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part MIPAF1XX667PSAAX?
You can download the MIPAF1XX667PSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of MIPAF1XX667PSAAX?
Honeywell
