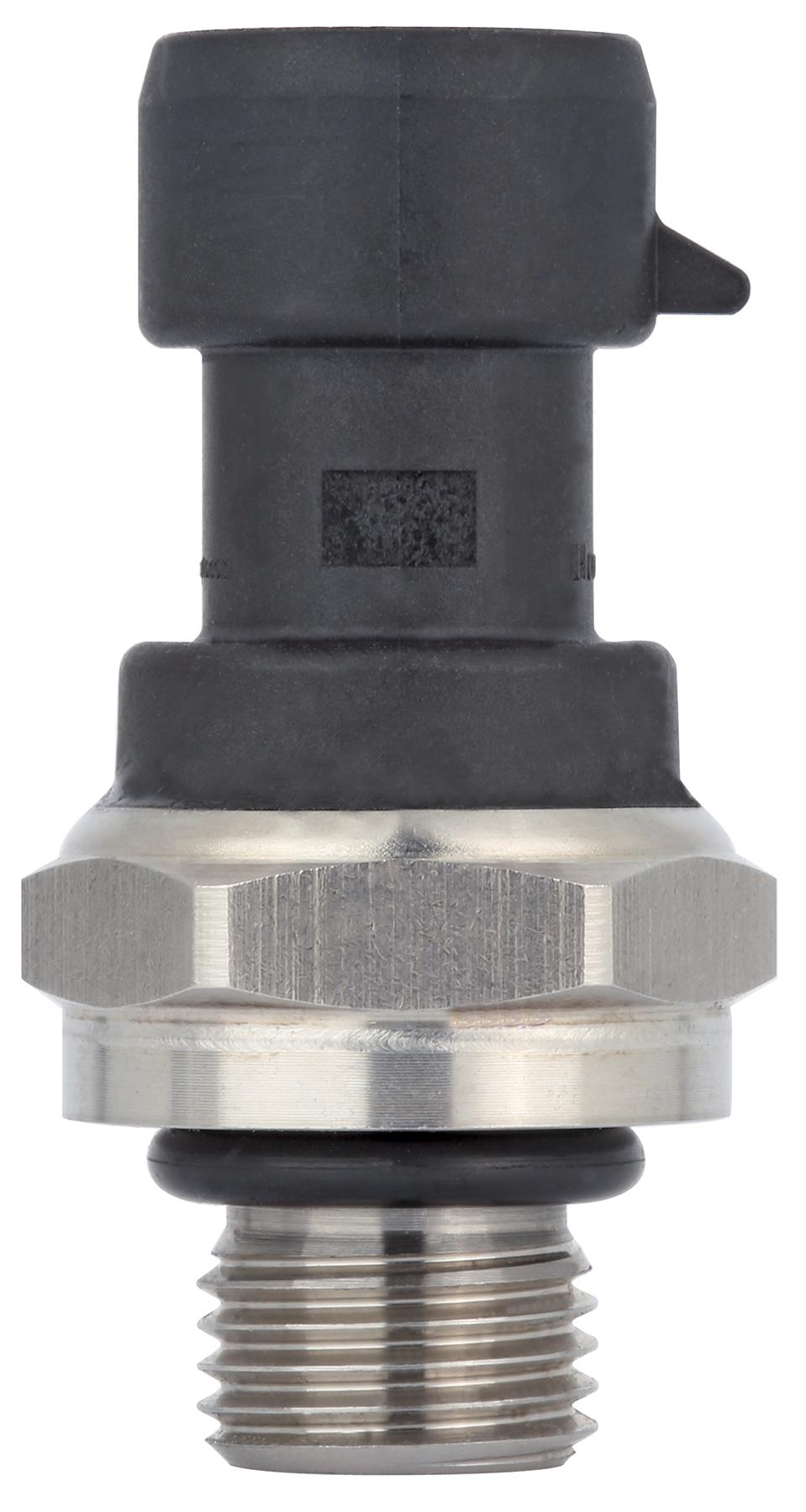

Honeywell MIPAG1XX050BSAAX Media Isolated Pressure Transducer
The Honeywell MIP Series Heavy Duty, media-isolated pressure transducer is built with robust stainless steel for use in challenging environments involving aggressive fluids, water, and other media. It offers industry-leading accuracy of 0.15% BFSL, long-term stability of +0.25% FSS, and a Total Error Band of +1.0% FSS over -40°C to 125°C, ensuring precise measurements in critical applications. Its hermetically welded design supports durability against harsh conditions, electromagnetic compatibility, and a wide pressure range from 1 to 60 bar (15 to 870 psi), making it suitable for industrial and process automation uses.
Honeywell MIPAG1XX050BSAAX Media Isolated Pressure Transducer Specifications:
- Material: Stainless steel 304L (port), 316L (diaphragm)
- Dimensions: Not specified, compact design
- Maximum Pressure: 207 bar (3000 psi)
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
- Pressure Range: 1 bar to 60 bar (15 psi to 870 psi)
- Electrical Output: Ratiometric 0.5 Vdc to 4.5 Vdc (at 5 Vdc supply)
- Supply Voltage: 5.0 Vdc to 10.25 Vdc
- Total Error Band: +1.0% FSS (up to 40.75% FSS for specific ranges)
- Accuracy: ±0.15% BFSL
- Long-term Stability: ±0.25% FSS over 1000 hours
- Resistance: >100 MΩ insulation resistance at 1 kVdc
- Ingress Protection: IP67
- Electromagnetic Compatibility: EMC compliant with surge immunity 1 kV, radiated immunity 100 V/m
- Burst Pressure: 207 bar (3000 psi)
- Certification: NSF/ANSI/CAN 61, CE, RoHS, REACH
- Response Time: 1 ms
- Wetted Materials: Nitrile seal, stainless steel ports and diaphragm
- Vibration Resistance: 20 G sweep from 10 Hz to 2000 Hz
- Shock Resistance: 100 G
- Weight: Approximately 33-38 g depending on port type
Buy the Honeywell 32346591 – Reliable Media-Isolated Pressure Transducer for Industrial Applications
Purchase the Honeywell media-isolated pressure transducer online today for reliable, accurate pressure measurement in demanding industrial environments. Featuring stainless steel construction, high accuracy of 0.15% BFSL, long-term stability of +0.25% FSS, and a wide pressure range from 1 to 60 bar, this transducer is perfect for aggressive fluids, water, and process control. Its hermetically welded design ensures durability against harsh conditions, electromagnetic interference, and temperature extremes, making it an essential component in industrial automation, process control, and harsh environment applications. Order now for immediate delivery and seamless integration.
Get Honeywell 32346591 today—built for precision, durability, and harsh environment performance in industrial processes.
